Automatic Industrial 18 Roller Fast Shrimp Grader Multifunction Size Fish Prawn Sorting Grading Machine
Piece
Negotiable
Product information
High-quality Automatic Industrial 18 Roller Fast Shrimp Grader Multifunction Size Fish Prawn Sorting Grading Machine supplied by Yantai Guangwei Food Cold-Chain Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Model NO.:
18 rollers
Capacity:
2000-3000 Kg/H
Voltage:
380V
Production Capacity:
5 Set/Sets Per Month
Specification:
6500*6000 *2200mm
Key Selling Points:
Automatic
Origin:
China
Transport Package:
Container
Specifications
Model NO.:
18 rollers
Capacity:
2000-3000 Kg/H
Voltage:
380V
Production Capacity:
5 Set/Sets Per Month
Specification:
6500*6000 *2200mm
Key Selling Points:
Automatic
Origin:
China
Transport Package:
Container
Trade Term:
FOB, EXW, CIF
Certification:
GS, RoHS, CE, ISO9001
Payment Term:
LC, T/T
Feature:
Low Energy High Speed
Function:
Prawn Grading
Port Of Loading:
Qingdao, Shanghai, Ningbo
Type:
Roller Grading Machine
Material:
SUS304 Stainless Steel
Application:
Seafood
Trademark:
UFEC
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2022-02-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CIF
Port Of Loading:
Qingdao, Shanghai, Ningbo
Certificates:
China Compulsory Certification, EC Examination Certificate, IOS9001, ISO 9001 Quality Management System Certification
Product descriptions from the supplier

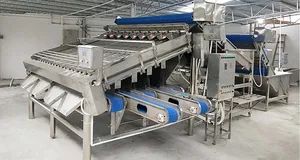

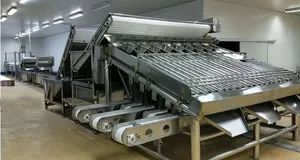

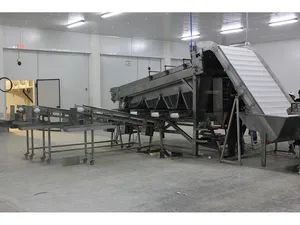

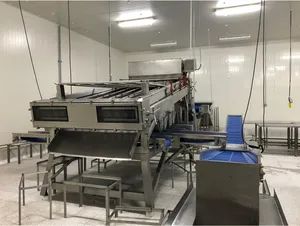

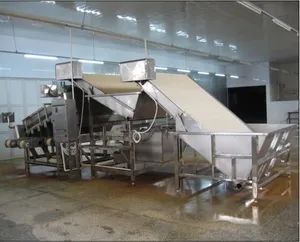

Shrimp Grading Machine
Introduction
This shrimp processing unit is constructed entirely from SUS304 stainless steel, meeting recognized food-grade manufacturing requirements and ensuring easy post-operation sanitation. The system features three main components: initial transport, intermediate transfer, and a grading roller assembly. The grading section includes two rollers—configured for thick-to-thin size differentiation—capable of dynamically adjusting their spacing to precisely separate shrimp. From intake to final sorting, the entire workflow significantly boosts operational speed. Equipped with CNC technology for precise sizing control, the machine achieves accuracy aligned with industry benchmarks. It serves as a top-tier solution for shrimp and seafood processing operations.
This shrimp processing unit is constructed entirely from SUS304 stainless steel, meeting recognized food-grade manufacturing requirements and ensuring easy post-operation sanitation. The system features three main components: initial transport, intermediate transfer, and a grading roller assembly. The grading section includes two rollers—configured for thick-to-thin size differentiation—capable of dynamically adjusting their spacing to precisely separate shrimp. From intake to final sorting, the entire workflow significantly boosts operational speed. Equipped with CNC technology for precise sizing control, the machine achieves accuracy aligned with industry benchmarks. It serves as a top-tier solution for shrimp and seafood processing operations.
2. Scope of application: grading of different specifications such as headed shrimp, headless shrimp, shrimp meat, etc.
3. Conveyor belt size: plastic steel mesh belt with a width of 198mm, baffle height of 10mm, two-stage elevator
4. Grading cylinder: 18 Φ127×132mm super-smooth plastic-steel rollers;
5. Conveyor belt material: high strength PVC plastic steel belt
6. Power: 1.5KW×1, 0.55KW×3, 0.75KW×2, stainless steel pure water pump 1.1KW×1, Japan MITSUBISHI inverter
7. Lifting groove material: SUS 1.5mm 304# stainless steel plate.
8. Body frame: Φ114×2.5mm 304# stainless steel tube
9. Water supply part: stainless steel fittings for upper cover, stainless steel water pump PPR fittings
10. Rotating part: UCF 205 stainless steel bearing, shaft drive
11. Power distribution cabinet: microcomputer control, stainless steel cabinet Notice:All fittings are stainless steel unless otherwise indicated.
