Automatic Manufacturer Touchless Car Washing Machine Smart Card Payment System with Timer Control for Washing Machine

Dear Sir. Ms. :

We appreciate your interest in Shanghai KOLON's offerings. The KL 360-2 car washer solution and our support team are designed to fulfill your operational requirements, and we look forward to aligning seamlessly with your expectations.



 Overview
KOLONWASH's newest automatic car wash innovation sets a new benchmark in non-contact washing systems. By prioritizing higher earnings and lowering overall operating expenses, this solution offers the strongest ROI in the sector. Powered by Smart 360TM, the system senses real-time changes during operation and adapts autonomously, boosting reliability and refining the entire wash cycle.

Significantly increased cleaning speeds increase vehicle throughput, shorten production lines and satisfy
your customers. Simplified machine design and lower energy and utility usage reduce operating costs,making the car wash business more profitable.

 Main feature
1.Intelligent unmanned system, self-service card payment system.
2. Smart KL 360-2 technology.3.Intelligent chemical mixing system.
3.Innovative suspension system with no resistance rails.
4.Unique embedded quick drying system.
5.Digital voice security alarm system.
6.The self-test system is faulty.

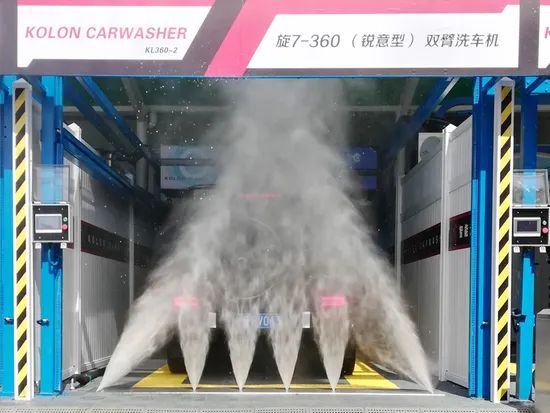

1. Intensive pre-rinse of the frame and wheels. Features a specialized system for cleaning the chassis and fan hub, delivering 80bar pressurized water to thoroughly eliminate grime from the frame, vehicle sides, and wheel components.



2. Smart 360° spinning arm employs advanced dosing technology to distribute multiple cleaning agents. Precise, customizable volume control ensures perfect chemical ratios. The high-accuracy blending system for car cleaning uses just 20 to 50 ml for pre-treatment, significantly reducing consumption and expenses.

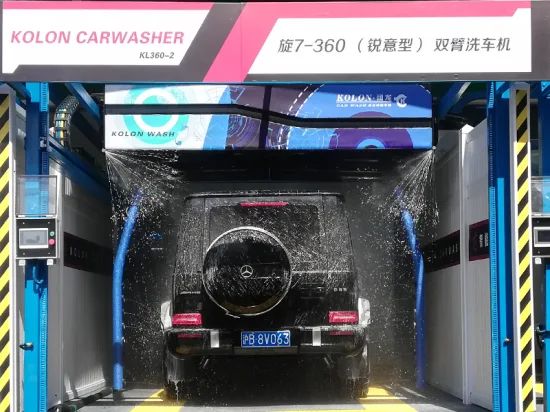

3.Intelligent 360-degree swivel arm, flush the body 360° with high-pressure water.
Spins 360 degrees in 28 seconds, uses 50% less water and 60% less energy, auto-measures vehicle dimensions, delivers up to 80bar pressure to efficiently wipe away grime.




 4. Soft water and crystalline wax coating
Soft water enables the shampoo and wax within the magic crystal paint to bond fully with the car's surface, creating a multi-layered, high-strength protective layer that enhances the paint's shine and ensures enduring protection. The wax's crystalline layer develops directly on the surface
a polymer layer within the coating integrates a soft water component that solidifies into a tough shield, offering superior defense for car finishes and resisting acid precipitation, environmental contaminants, and UV degradation.



 5. Unique embedded quick drying system.
KOLONWASH KL 360-2 features four 3kW motors integrated into the washing unit. Air movement is managed through four cylindrical nozzles. The initial function is to generate a strong airflow, minimizing airflow resistance for later stages
airflow, ensuring the vehicle's surface dries efficiently. KOLONWASH 360 refines airflow dynamics. Conventional fans boost wind velocity, yet by the time air reaches the car’s body, its strength significantly drops. Truly, strong, consistent airflow delivers the most effective drying results.



 6.Using the German PINFL brand high-pressure piston pump and the ShangHai KOLON brand 11-15KW motor, the flushing pressure can reach 50Bar-100Bar.



 7.Integrated intelligent liquid automatic proportioning system
Functions like an advanced chemistry setup, featuring multiple liquid solutions, exact dosage measurement, applying just 20-50ml of car shampoo, and tight management of every expense. Computer
automated operation, no human intervention, precise scaling adjustment. By executing mixing, atomization, and other processes, micro-granules are generated, evenly coating the vehicle surface via spraying, ensuring deep and complete contact with stains, and achieving uniform penetration into surface crevices.



 Applicable modelsIt ensures a complete, optimal cleaning range for multiple vehicle types, including dual tires.



Speed = Increased RevenueStreamlined design combined with durable components delivers the best trade-off between upfront costs and sustained earnings. Much quicker wash cycles boost the number of vehicles processed, leading to more compact wash operations that enhance customer satisfaction and drive repeat business.



 E-Chain
Driver or passenger side-mounted factory preloaded energy chain for easy and low-cost installation.



 Humanized design
*LED with voice prompt
*Automatic cleaning of the rearview mirror
*Error log and data report
*Automatic standby service
*Multi-control mode (via touch screen, magnetic card, payment station button, remote control operationwashing system)





 technical parameter
