Automatic Mesh Making Machine for Exhuast Pipe Weight 110kg Voltage 220V Style Vertical Warranty 1 Year Trademark Comflex
Set
Negotiable
Product information
High-quality Automatic Mesh Making Machine for Exhuast Pipe Weight 110kg Voltage 220V Style Vertical Warranty 1 Year Trademark Comflex supplied by Comflex Industrial Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
1 Year
Weight:
110kg
Output:
15m-40m/Hour
Voltage:
220V
Bellow Od:
44.6-86mm
Rotation Speed:
45-85 Rpm
Production Capacity:
500sets/Year
Mesh Width:
70-135mm
Specifications
Warranty:
1 Year
Weight:
110kg
Output:
15m-40m/Hour
Voltage:
220V
Bellow Od:
44.6-86mm
Rotation Speed:
45-85 Rpm
Production Capacity:
500sets/Year
Mesh Width:
70-135mm
Specification:
850mmX550mmX1500mm
HS Code:
8515219900
Trademark:
Comflex
Model NO.:
Comflex
Trade Term:
FOB, CFR, CIF, EXW
Origin:
Jiangsu, China
Payment Term:
LC, T/T, Western Union
Online Installation:
Provide
Port Of Loading:
Shanghai, Qingdao, Hangzhou
Style:
Vertical
Product Name:
Wire Mesh Making Machine
Transport Package:
Wooden Package
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Shanghai, Qingdao, Hangzhou
Certificates:
Flexible Metal Hose Forming Machine
Product descriptions from the supplier

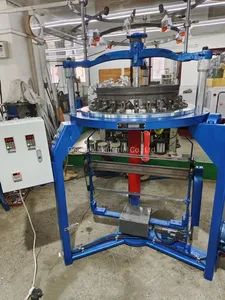

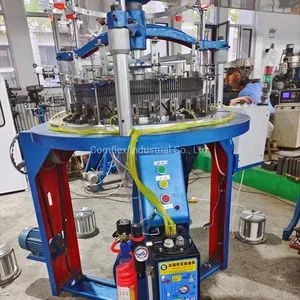

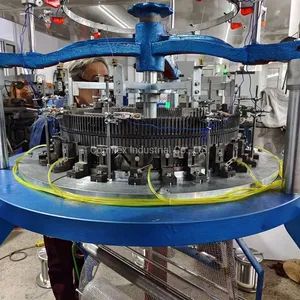

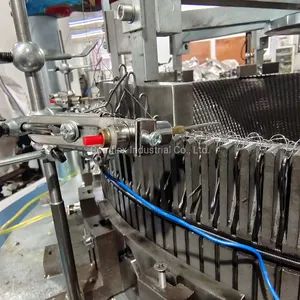

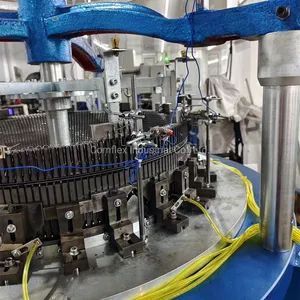

Automatic Exhaust Pipe Manufacturing Equipment Wire Mesh Machine

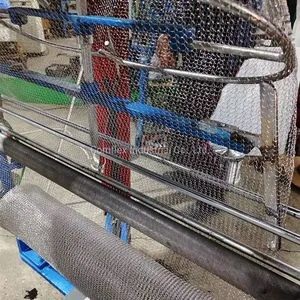

This wire mesh machine is mainly used to produce the mesh for the exhaust pipes.
1. Braiding machine level: E2-E8;2. Rotation speed: 45-85 rpm;
3. The machine adopts 220V three-phase AC power supply;
4. The machine adopts a three-stage frequency converter to control the weaving main shaft, take-up main shaft, and silk shaft untwisting respectively. The output frequency of the inverter is 50Hz, and the three-stage linkage ratio is set according to the wire diameter, tensile strength, and elongation during the weaving process.
5. Overall dimensions and net weight of the machine:
<1> Overall dimensions of the machine: 850mmX550mmX1500mm (length x width x height); <2> Net weight of the machine: 110KG;
6. The coiling and drafting motor is controlled by the frequency converter from 0 to 75 rpm.
7. Machine output: 15m-40m/hour;
| No. | Bellow OD | Mesh Width | Mesh ID | No of Needles |
| 1 | Φ44.6mm | 70mm | Φ44.6mm | 26Needles |
| 2 | Φ58.6mm | 92mm | Φ58.6mm | 32Needles |
| 3 | Φ63.7mm | 100mm | Φ63.7mm | 30Needles |
| 4 | Φ66.8mm | 105mm | Φ66.8mm | 38Needles |
| 5 | Φ73.2mm | 115mm | Φ73.2mm | 40Needles |
| 6 | Φ79.6mm | 125mm | Φ79.6mm | 28Needles |
| 7 | Φ86mm | 135mm | Φ86mm | 32Needles |
2. The width of the mesh can be adjusted within the range of plus or minus 3mm to match the outer diameter of the bellows for production.
Main technical characteristics of the machine
1. This type of machine is equipped with a computer program control system with a memory function. The drive of the main machine and the coiling and drafting are respectively equipped with frequency converters, which can automatically adjust the number of rotations.
2. This type of machine is equipped with a memory length counter, which has the function of automatically setting and controlling the length of the braided shielding net.
3. This type of machine has the function of automatic shutdown and alarm for broken wires and broken needles.
4. This type of machine has the function of automatically alarming, stopping, and restarting after the knitting length is set in place.
5. This type of machine is equipped with a fully automatic oil injection pump, and the oil injection frequency and oil injection volume can be adjusted according to the needs during production.
Interlock hose making machine Vertical bellow making machine Interlock hose cutting machine
We supply all kinds of machines related to hoses, bellows, and exhaust pipes for more than 35 years. Meanwhile, we can also design and manufacture special equipment according to your special requirement. Our machines have been exported to many countries, such as Ukraine, Russia, Viet Nam, India, Canada, Australia, Italy, France, the UK, Turkey, etc. We assure you long-term mutually beneficial cooperation relationship!
Customers
Q: Why choose us as your supplier?
A: We are most professional in flexible exhaust pipe-making machines with more than 30 Years of experience
Q: What can you supply for the flexible exhaust pipe-making machine?
A: Interlock hose-making machine
B: Tube-making machine
C: Bellow-making machine
D: Wire braiding machine
E:...
We need to know the following information to quote you the correct machinery:
2. Wire diameter
