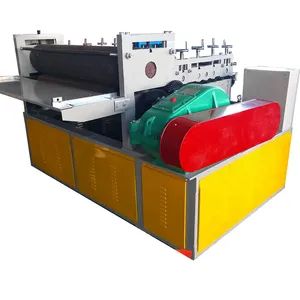

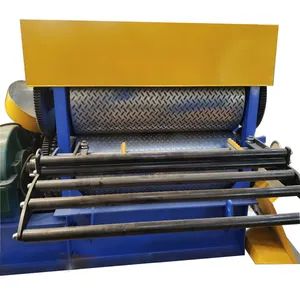

Automatic Metal Coiling Embossing Machine Production Line

This embossing system works well with cars, ornamental doors, industrial equipment, hallway non-slip panels, appliance rear panels, refrigerated facilities, copper entry doors and windows; Available models: 1350, 1600, 1900
Pressure roller specifications: Φ 300mm Φ 350mm Φ 380mm Φ 400mm Φ 450mm;
Pressure regulation: screw pressure or reducer pressure embossing machine;
Motor power: 11.0kw, 15.0kw;
Linear speed: 0-25m/min; Speed: 0-25m/min

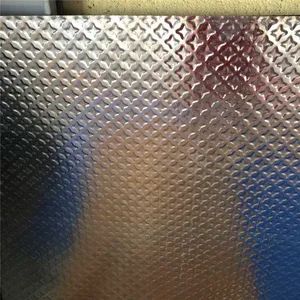

Flower type: willow leaf flower (hyacinth bean flower), compass, three leaves, water hyacinth flower, leopard pattern flower, fuzi flower, wood pattern, bark pattern;
Double sided embossing machine with customized patterns and specifications according to customer special requirements;
The pressed pattern board not only has beautiful patterns and strong three-dimensional sense, but also increases the thickness and strength of some boards.

Overall processing with 5M abrasive grinding, advanced heat treatment process for tempering, multiple stress relief, quenching, Heef-2 microcrack hard chromium electroplating.
Roller surface precision: Achieves mirror finish with Ra0.01 (smoothness grade 14), temperature variation during heating maintained at ±1°C, thermal distortion under 0.01mm. Alignment tolerance within 0.005mm, runout within 0.005mm, coaxiality within 0.005mm. Surface hardness ranges from HRC55 to HRC58; post-chrome plating and polishing reaches HV1000 (equivalent to HRC62). Applications: Ideal for embossing PP, PT, PE, ABS, PVC and other plastics, leather, textiles, paper, iron sheets, stainless steel, aluminum, steel, and wood boards, among others.
The surface is finished with a hard chromium layer exceeding HV900 (standard range HV500–60), featuring a surface finish of Ra0.01 (grade 14). In cases requiring enhanced corrosion resistance, a nickel undercoat may be applied. The final hardness reaches HV1250
Equipment rated at embossing level or higher, featuring a surface finish of Ra0.05 or greater, offers superior resistance to wear and corrosion, extending operational lifespan by 5 to 10 times versus electroplated components.
Hardness treatment of roller body: vacuum heat treatment, laser heat treatment, HRC62-66
Processing range: workpieces with a diameter of 800mm, a length of 4000mm, and a weight of less than 5t.

Processing accuracy: temperature difference ≤ ± 1 ºC, thermal deformation ≤ 0.01mm, flatness, runout, coaxiality ≤ 0.01mm (advanced large specialized grinding machine, ensuring concentricity).

Company Profile



Certifications



Packaging & Shipping



FAQ

1.How to maintain the machine?

Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
The equipment comes with a 12-month warranty. Should any faulty components fail to be fixed, we will provide replacement parts at no cost to you, though you'll be responsible for the shipping fees. Beyond the warranty, we’ll work with you to resolve any issues through discussion, and we offer ongoing technical support throughout the machine’s entire operational life.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
