Automatic Overlap Feeding High Speed Intelligent Flute Laminator Laminating Machine for Corrugated Cardboard
1 Set
$62,000Product information
High-quality Automatic Overlap Feeding High Speed Intelligent Flute Laminator Laminating Machine for Corrugated Cardboard supplied by Anhui Innovo Bochen Machinery Manufacturing Co., Ltd.. Bulk wholesale pricing is $62,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Surface Paper Thickness:
120g-800g
Maximum Paper:
1500*1500mm
Maximum Speed:
200m/Min
Production Capacity:
20PCS/Month
Delivery Time:
30 Days
Down Paper Thickness:
300g-10mm Thickness
Minimum Paper:
400*400mm
HS Code:
8441809000
Specifications
Surface Paper Thickness:
120g-800g
Maximum Paper:
1500*1500mm
Maximum Speed:
200m/Min
Production Capacity:
20PCS/Month
Delivery Time:
30 Days
Down Paper Thickness:
300g-10mm Thickness
Minimum Paper:
400*400mm
HS Code:
8441809000
Automatic Grade:
Automatic
Specification:
CE SGS
Origin:
China
Plastic Film Mulching Modes:
Cold Laminating
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Application:
Fiberboard, Packaging Paper, Color Printing, Soft Board
Model NO.:
GFH-1500A/1700A
Trademark:
INNOVO
Payment Term:
LC, T/T
Membrane Material:
Paper
Classification:
Post-Coating Laminating Machine
Port Of Loading:
Shanghai Port, Ningbo Port
Transport Package:
Vacuum Bag
Performance:
Waterproof
Fitting Accuracy:
±0.8mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-11-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
89
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port, Ningbo Port
Certificates:
CE, ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier

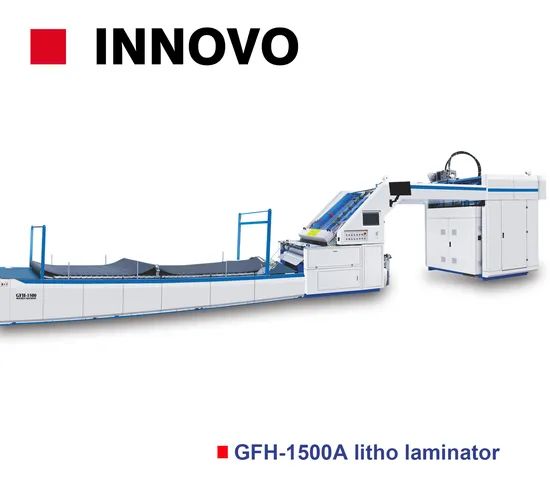

Automatic High Speed Flute Laminator Machine
Machine overview:
GFH-Ais the latest generation of high-speed automatic flutelaminating machine developed by our company. The top paperof this machine adopts overlap feeding the principle of offset printer, and the top paperside gauge adopts the motion side gauge and the servo paper surface tracking and correction principle. It can automatically detect the height of the corrugated paper, automatically adjust the gap between the rollers, automatically adjust the amount of glue, and the laminating roller does not need to be scrubbed. The maximum laminating speed can reach 200 meters/minute (24,000 sheets/hour). High speed, high efficiency and high precision are your ideal choice.
Performance characteristics:
1.Top sheet Overlap feeding+non -stop correction, high speed without losing accuracy. Speed can reach200meters/min.
2.Bottom sheetbig suction beltfeeding system. It can work with both cardboard and corrugated board. Japan Nitta belt. And lead edge system is option.
3.The front pressure roller is made of new polyfluoroethylene material, which is free to wash, and then reduce the labor strength of the operator.
4.The whole machine has no handle, electric adjustment, automatic detection thickness, reducing the strength of the single -order work, and increasing the effective working time.
5.Because the machine uses overlap feeding, no gap correction without stop, so the unit time output increased by 50%, which greatly reduced the power consumption of the unit time, and it was truly increasing production and energy saving.
6. Adopts top sheet aligner system to ensure high accuracy. Feeding mode can be chosen overlap sheet or separation sheet type.
7. Digital design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet).
8. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.
9. Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
10. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.
11. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
12. One -click adjustment of the whole machine (just enter the paper size).
13.Order memory function, one -click to transfer the previous order, convenient and fast.
14.Total 10 servos.Video monitoring.
15. Top sheet double sheet detection system.
SPECIFICATION:
| MODEL | GFH-1500A | GFH-1700A | GFH-1900A | GFH-2200A |
| Max Sheet | 1500×1500mm | 1700×1700mm | 1900×1900mm | 2200*2100mm |
| Min Sheet | 400×400mm | 400×400mm | 500×500mm | 500*500mm |
| Top Paper Thickness | 120-800g | 120-800g | 120-800g | 120-800g |
| Max Speed | 200m/min | 200m/min | 200m/min | 200m/min |
| Fitting Precision | ±0.8-1mm | ±0.8-1mm | ±0.8-1mm | ±0.8-1mm |
| Power | 30KW | 32KW | 35KW | 38KW |
| Bottom Paper Thickness | ≤10mm(A-F corrugated board) ≥400g cardboard |
≤10mm(A-F corrugated board) ≥400g cardboard |
≤10mm(A-F corrugated board) ≥400g cardboard |
≤10mm(A-F corrugated board) ≥400g cardboard |
| Glue consumption | B flute: 15gsm E flute: 20gsm | |||
BRANCH INTRODUCTION:

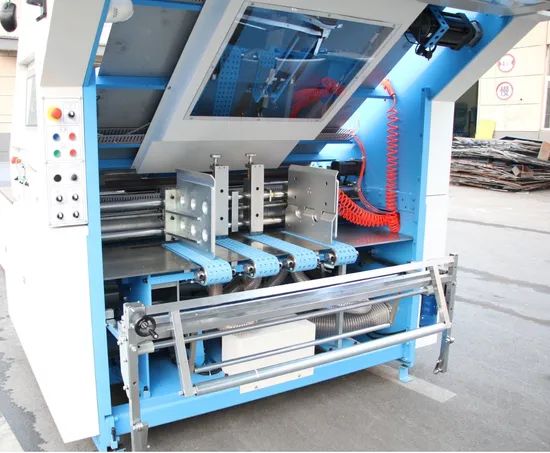

1.BOTTOM PAPER FEEDING
Use big suction belt system. Japan Nitta brand belt. It can work with both cardboard and corrugated board.. The wide rubber wheels ensure that the E, F, and G corrugated does not deform.It can also runmore than300gsmof cardboard or grayboard.Lead edge system is option.

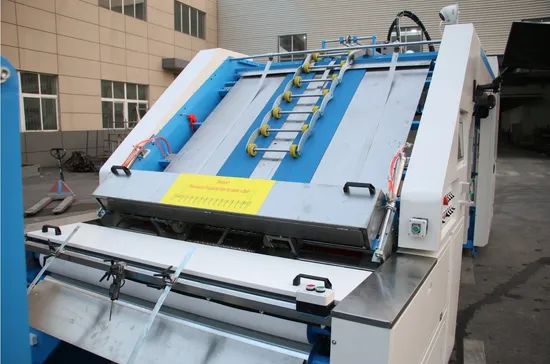

2.TOP SHEET FEEDING MECHANISM
Equipped with high speedshaftlessfeeder,speed can meet 200meters/minute. Together with Becker vacuum pump.The front and rear offeederare controlled by the servo motor.After input paper size, it will be automatically positioned. Feeding mode can choose overlap sheet orseparation sheet type. Adopts top sheet aligner system to ensure high accuracy.
3.ELECTRICAL SYSTEM
Mainly usingSiemenselectric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.
- The machine is equipped with 10 servo motors, achieving full servo control.
- The Siemens PLC in Germany ensures stability and durability.
- All the electrical appliances are placed in one control cabinet, which makes maintenance easier.

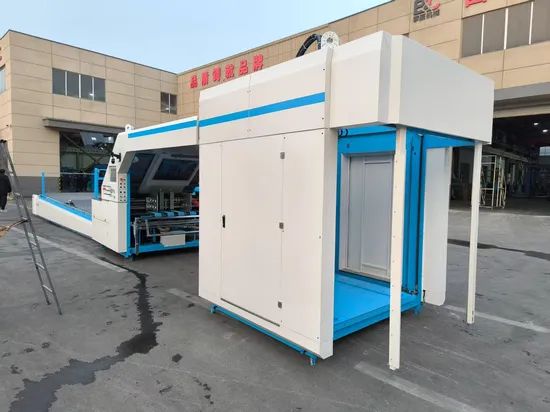

4.PRE-STACKERPART
- Pre-stack pile of paper under the condition of non-stop, improve efficiency. The width of the pre-stackeris controlled by the motor, the size of the paper is automatically positioned.
- The dual -use lifting platform, wecan use the pre-stackerstructure to push the pre -pile of paper into the platform.
- We can alsopush the stack of paper directly into the platform. And the platform can be adjusted around the actual situation of the paper stack.
- The second floor platform can move left and right automatically.
5.POSITIONING SYSTEM & GLUE ROLLER
Equipped with sensors and servo motor, control top sheets to do independent compensation actionto make sure high accuracy.The design of large stainless steelaniloxroller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue.Also with two newpolyfluoroethylene material pressing rollers(150mm diameter), need not cleaning toreduce the labor strength of the operator.
6.AUTOMATIC LUBRICATIONAND VIDEO MONITORING
Lubricate the bearing regularly to prolong the service life of the bearingand save the cost.
Using four high-definition cameras, the machine's operating status is constantly monitored.
7. TOP SHEET RUNNING SYSTEM
Top sheet Overlap sheet feeding. Big belt with wheel system, and with bridge motion correction system. Speed is faster and run more steady. more fit for thin paper. No stuck in running.
8. BOARD THICKNESS MEASURE SYSTEM
Adopt a high -precision thicknessmeasurementdevice with servo motor.All roller pressure will be adjusted automatically. And glue thickness also adjusted by servo.
9. HYDRAULIC LIFTING AND GLUE ROLLER SEPARATED CONTROL SYSTEM
Adopt hydraulic lifting system. When you press the button, it will lift up. It is convenient to wash the glue roller.
Use one separated motor to control the glue roller, when the machine need to stop, the glue roller will not stop. It can keep the glue well, not overflow. Then to save glue.
10. ORDER MANAGEMENT AND DOUBLE SHEETS DETECTION SYSTEM
Order memory function. Machine can storage previous order record. When you want to do previous work. Just arouse previous order, the machine will adjust to this order data automatically.
Double sheets detection system can detect top paper during running to avoid double sheets feeding at the same time.
Machine transport and packing
__________________________________________________________________________
1. The packing of small machines is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
Our Company:
_____________________________________________________________________
Certificate:
______________________________________________________________________
FAQ:
______________________________________________________________________
Q1: Are you a manufacturer?
Yes, we are specialized manufacturer of hot foil stamping machine and die cutting machine in China over 20 years.
Q2: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q3: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to purchaser's factory, all travel cost paid by purchaser.
Q4: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product's photos and videos to make every detail clear.
Why choose us?
_____________________________________________________________________
1.Our brand "INNOVO" is well-known in our domestic market and over 70 countries and territories. Europe, South America, Latin America, Southeast Asia, Middle East, Africa etc.
2.Genuine products with excellent quality. Company has always proved the 100% quality.
3.After-sales service and technical assistance: company provides after sales service and technical assistance as per customers' requirement and needs. After-sales service provided engineers available to service machinery overseas.
4.Cost saving: lon-life, shock resistant and high reliability bearings with excellent quality and better performance, resulting in increased cost saving.
5.Less cost of purchase: We are the manufacturer directly.
6.Attendant customers queries promptly.
