Automatic Pallet Winding Machine X1
Set
Negotiable
Product information
High-quality Automatic Pallet Winding Machine X1 supplied by Suzhou Jiajun Packing Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
1 Year
Power:
1.5kw
Voltage:
220V/110V/50/60Hz 1 Phase
Specification:
2700mmx1650mmx2600mm
Production Capacity:
300 Set/Sets Per Month
HS Code:
84224000
Automatic Grade:
Automatic
Application:
Beverage, Food, Medical, Chemical, Textile, Electrical & Electronics, Machinery, Hardware, Commodity, Apparel
Specifications
Warranty:
1 Year
Power:
1.5kw
Voltage:
220V/110V/50/60Hz 1 Phase
Specification:
2700mmx1650mmx2600mm
Production Capacity:
300 Set/Sets Per Month
HS Code:
84224000
Automatic Grade:
Automatic
Application:
Beverage, Food, Medical, Chemical, Textile, Electrical & Electronics, Machinery, Hardware, Commodity, Apparel
Certification:
CE Certificate
Driven Type:
Electric
Trade Term:
FOB, CFR, CIF
Inclusion Degree:
Fully Wrapped Winding Machine
Alarm System:
Have
Origin:
Jiangsu, China (Mainland)
Payment Term:
LC, T/T, D/P
Packing Material:
LLDPE
Condition:
New
After Sales Service:
Online Support, Video Technical Support
Ramp:
Optional
Weighing Scale:
Optional
Control Type:
PLC
Structure:
Pallet Wrapping Machine
Film Frame Structure:
Pre Tension
Trademark:
SMART WASP
Port Of Loading:
Shanghai
Transport Package:
Steel Frame + Wooden Box
Series:
T Series - Pallet Wrapping Machine
Model NO.:
X1
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2007-07-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CFR, CIF
Port Of Loading:
Shanghai
Certificates:
CE, CE 2025, Certificate of Approval, Certificate of Compliance, Design Patent, Patent for Utility Models
Product descriptions from the supplier
| Product Descriptions | ||||||||||
| Technical Parameters for Smart Wasp X1 | ||||||||||
| Model | X1 | PLC | SIEMENS | |||||||
| Turntable size | Standard1650mm (1800/2000mm optional) |
Inverter | SIEMENS | |||||||
| Wrapping height | Standard2400mm (1800/3200mm optional) |
Touch screen | SIEMENS | |||||||
| Max Load Weight | 2000kg | Sensor brand | SICK (Germany Brand) | |||||||
| Pre-stretch rate | 300%(1m stretch to 3 meter) | Product Memory | Five Mode | |||||||
| Wrapping speed | 30 - 40 load / H(1x1.2x1.8m pallet Warp Two Layers) | Automatic cut film | Have(Pallet grip function or Auto cut film fucntion Alternatives) | |||||||
| Up & down speed | 1.5 ~5.5 m/mins | Pallet Grip System | pallet top/bottom grip optional | |||||||
| Film Width | 500mm (750mm optional) | Safety device | Film carriage pressure-proof device | |||||||
| Film diameter | 250mm | Soft start&stop | Inclued | |||||||
| Film paper core | 76 mm(50 mm optional) | Stop at original | Inclued | |||||||
| Film weight | Maximum 15KG | Intelligent Alarm | Inclued | |||||||
| Machine power | 1.5KW | Wrapping force | Adjustable | |||||||
| Voltage | 220V-240V/50/60HZSingle-Phase (110V/50 Hz optional) | Measure height | Automatic (black/blue color optional) | |||||||
| Machine weight | 750KG | Certificate | CE | |||||||
| Machine size | 2800*1650*2745mm(L*W*H) | Optional device | Ramp ,Weighing scale | |||||||
| Detailed Images |
 |
1. Automatic Cutting Film After finishing wrapping the pallet, our pallet stretch wrapper will cut the film automatically. There is no need for workers to cut the film with tools, which is very helpful for users. |
||||||||||||||
| 2.SIEMENS Touch Operating System Intuitive Easy to understand Require little language and skills Manually change language |
 |
||||||||||||||
 |

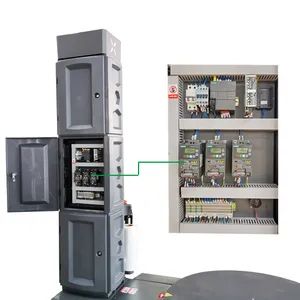

3. Best Spare Parts SIEMENS PLC, SIEMENS Inverter SIEMENS AIR Breaker SIEMENS Contactor Germany SICK Brand Sensor Germany Weidmuller terminal black OMRON 24V power supplier Schneider button Better spare parts, better products |
|||||||||||

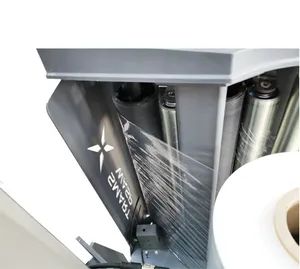

| 4. Save30%Film 300% Pre-stretch rate, save 30% film compared to traditional pallet wrapping machine. Rubber Coated Roller
Most wrapping machines stick the rubber on the roller with glue, which are easily broken while workingg, and it'll make the film crumply. If there is label on pallet, it'll be difficult to scan the barcode on the label.
X1 pallet wrapping machine uses ruber coated roller to avoid rubber dropping problem, and stretch film soomthly, after stretching, film can still be transparent, and barcode on label can be easily scanned. |
 |
 |
5. Safety Devices 1. Machine is made of ABS+Steel body, which could prevent electric shock and leakage. 2. Film carriage bottom safety device: When worker's head or foot touches the bottom of the film carriage, the machine will stop running and alarm. 3. If film carriage falls down, the anti-falling device will catch it immediately. |
|||||||||
| 6. Intelligent operation Guiding system 1.X1 with LED indicator on machine Ready for work: Blue color During working: Green color Alarm: Red color 2.Touch screen guide you how to operate machine. If alarmappears, touch screen will show you how to solve the problem. |
 |
WE PACK MACHINE MORE SAFETY |
| Shipping Type | 1set machine/crate
(size/weight)
|
2sets machines /crate
(size/weight)
|
Mix packing
(just for FLC shipping type)
|
| LCL Shipping | 2.98x1.8x0.9m
800KG
|
2.98x1.8x0.95m
1500KG
|
Turntable /crate
Carriage/crate
Tower/crate
|
| Quantity crates in 20 FT | 4sets | 8sets | 12sets |
| Quantity crates in 40 HQ | 8sets | 16sets | 24sets |
| WELCOME TO JOIN US, TO BE SMART WASP PARTNER | |||||||||||
| 2020 SMARTWASP EXHIBITION LIST | ||||||||||||
The 20th Shanghai International FoodPack China and ProPak China Time: 2020/11/25-27 Address:Shanghai National Convention and Exhibition Center |
2021 Dusseldorf Processing& Packaging Interpack Time: 2021/2/25-3/3 Address:Germany Dusseldorf Exhibition Center |
The 27th China International Packaging Industry Sino-Pack Time:2021/3/4-6 Address:China Import and Export Fair Complex (A area) |
||||||||||
| Our Team | ||||||||||
| SMART WASP Team have 210 members, we have over 30 mechanical engineers and electric engineers. SMART WASP international team in Ukraine Thailand Mexico Malaysia USA Ireland Poland Panama for promoting and doing service for Smart wasp machine. We sincerely welcome more and more partners to join us. |
||||||||||
