Automatic Perfume Filling Production Line
Piece
Negotiable
Product information
High-quality Automatic Perfume Filling Production Line supplied by Shanghai Paixie Packaging Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
1200*900*2200mm
Production Capacity:
2500-3000bph
Package Gross Weight:
600.000kg
Package Size:
800.00cm * 600.00cm * 350.00cm
HS Code:
8422301090
Touch Screen:
According to The Customer
Automatic Grade:
Automatic
Packaging:
Bottle
Specifications
Specification:
1200*900*2200mm
Production Capacity:
2500-3000bph
Package Gross Weight:
600.000kg
Package Size:
800.00cm * 600.00cm * 350.00cm
HS Code:
8422301090
Touch Screen:
According to The Customer
Automatic Grade:
Automatic
Packaging:
Bottle
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
After Sales Service Provided:
Engineers Available to Service Machinery Overseas
Trade Term:
FOB, CIF, CFR
Human Protection:
Frame with Emergency Switch
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Material Type:
Liquid
Packaging Material:
Metal
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Multi-Room Feeding
Transport Package:
Non-Fumigation Wooden Box
Trademark:
PAIXIE
Model NO.:
PX-BFC850
Type:
Piston Filling Machine
Dosing Device:
Plunger
Packaging Container Lifting Structure:
Pneumatic Lifting
Filling Principle:
Pressure
Structure:
Rotary
Driving:
Servo Driving
Origin:
Shanghai
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-12-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
35
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier
Introduction:
This vacuum liquid filling machine uses vacuum constant liquid level filling principle,regardless of whether the bottle volume is the same,the filling liquid level will remain the same.This kind of filling machine can prevent from spreading out fragrance,which is good for filling perfume.
|
Filling head
|
4 Head
|
||
|
Air pressure
|
0.5-0.8MPa
|
||
|
Liquid level accuracy
|
±1mm
|
||
|
Viscosity range
|
The maximum applicable viscosity is 20Cps (static viscosity)
|
||
|
Working Speed
|
20-40 Bottles/Minute
|
||
|
Bottle height
|
≤250mm
|
||
|
Bottle Opening Size
|
≤φ4.5mm-φ28mm
|
||
|
Adjustable liquid level (from the bottle mouth)
|
15-50mm
|
||
|
Pumping rate
|
5.5L/S
|
||
|
Machine size
|
About 1500*1150*1530mm
|
||
|
Machine weight
|
About 278kg
|
||
|
Package size
|
About 1660*1310*1670mm
|
||
|
Package weight
|
About 339kg
|
||
Workflow:bottle feeding→filling→adding dropper cap→screw capping→self adhesive labeling→ribbon printing (optional)→inkjet printing (optional)→bottle collecting
Features:
1.The parts which contact liquid are SUS316L stainless steel and others are SUS304 stainless steel
2.Including feeder turntable,effective cost/space saving
3.It has intuitive and convenient operation, measuring accurate, positioning precision
4.Fully in accordance with the GMP standard production and passed CE certification
5.Siemens Touch screen/PLC (optional)
6. Accept custom MOQ: 1 PC
2.Including feeder turntable,effective cost/space saving
3.It has intuitive and convenient operation, measuring accurate, positioning precision
4.Fully in accordance with the GMP standard production and passed CE certification
5.Siemens Touch screen/PLC (optional)
6. Accept custom MOQ: 1 PC

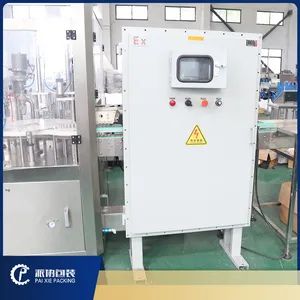

Intelligent control panel and touch screen
control panel
control panel
Working parameters can be set easily without the need to train operators, which helps improve work efficiency. Operation panel language can be customized in different languages, if you need, please contact us.

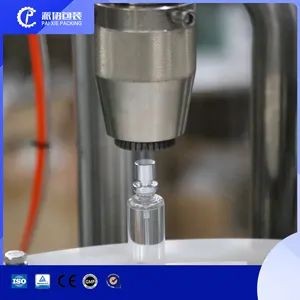

Anti-drip filling nozzle
Equipped with two filling nozzles,and each one can be controlled separatelyThe filling nozzle can be customizedaccording to filling materials,makesthe machine works better with yourproducts This machine is equipped with high quality filling pump,ensures filling accuracy.

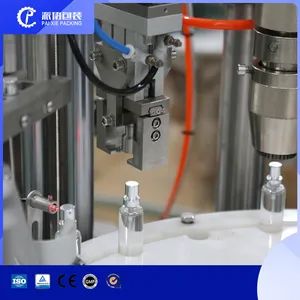

Lids taking device
Automatic take cover, put cover
Screw cover equipment
Servo motor control fillingcapping ,finished product passrate 99%
Detection electronic eye
Equipped with high quality electriceye,this can be used to detect bottles and make the machine start or stop to work.The sensitivity of the electric can be adjusted by the adjusting part. Improves working accuracy.
Advantage:

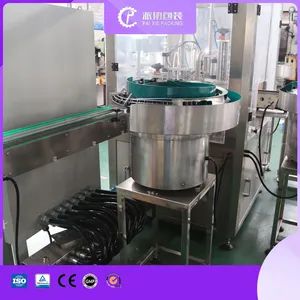

1. The machine uses a disc-type bottle unscrambler for automatic bottle feeding.
2. It is equipped with a SIEMENS PLC control system and a colored touch-screen display.
3. The pressure plug is automatically sorted and inserted using a vibrating disk, with an additional device for automatic induction of the pressure plug to ensure higher reliability.
4. Similarly, the capping machine also uses vibration plate sorting, hanging cover, and special lock head for three-knife capping, resulting in a beautiful appearance.
We'll change into your standard plug before shipping,such as American plug, UK plug, European plug...
Complimentary installation kit
Complimentary installation kit
We use accessories from internationally renowned brands
Q1: Are you manufacturer?
A1: Yes, we are the manufacturer of mixer and filling lines over 10 year's experience.
Q2:How can I know your machine has good quality?
A2:We will send video of the machine working condition, video chatting see our workshop and also you can come to visit our factory.
Q3:What is your advantage?
A3: 1)Competitive price;
Q2:How can I know your machine has good quality?
A2:We will send video of the machine working condition, video chatting see our workshop and also you can come to visit our factory.
Q3:What is your advantage?
A3: 1)Competitive price;
2)Excellent technical support;
3)Great after-sale service;
4)Over 10 years experience
Q4:What is the payment terms?
A4:30% deposit, the balance before delivery.
Q5:How long of the delivery time?
A5: Normally 40-50 working days depend on the detail machine you request.
Q6:What is your warranty time?
A6:One year. Life-long maintenance services and technical support.
Q7:Can you offer overseas service?
A7: Yes, if request.We suggest online problem solving firstly, if the problem still shows we can arrange engineer to go to your factory to solve the issue.
Q4:What is the payment terms?
A4:30% deposit, the balance before delivery.
Q5:How long of the delivery time?
A5: Normally 40-50 working days depend on the detail machine you request.
Q6:What is your warranty time?
A6:One year. Life-long maintenance services and technical support.
Q7:Can you offer overseas service?
A7: Yes, if request.We suggest online problem solving firstly, if the problem still shows we can arrange engineer to go to your factory to solve the issue.
