Automatic Pet Bottles Heat Shrink Wrap Machine Shrink Packaging Machine
1 Set
$11,0001 Set
$9,000Product information
High-quality Automatic Pet Bottles Heat Shrink Wrap Machine Shrink Packaging Machine supplied by Ruian Huadong Packing Machinery Co., Ltd.. Bulk wholesale pricing ranges from $9,000 to $11,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
15sets/Month
HS Code:
84224000
Automatic Grade:
Automatic
Model NO.:
BMD-800A
Specification:
CE, SGS, TUV
Origin:
China
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR
Specifications
Production Capacity:
15sets/Month
HS Code:
84224000
Automatic Grade:
Automatic
Model NO.:
BMD-800A
Specification:
CE, SGS, TUV
Origin:
China
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR
Packaging:
Film
Packaging Material:
Film
Application:
Food, Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical
Adjust Speed:
Frequency Conversion Speed Regulation
Trademark:
HUADONG
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Port Of Loading:
Ningbo Port, Shanghai Port
Film Used:
PE Film
Type:
PE Shrink Film Machine
Sealing Type:
Sleeve Sealing
Heating Mode:
Stainless Steel Heating
Manner Of Packing:
Two Sides Open
Transport Package:
Wooden Cases
Sealing Knife:
an "U" Knife and a Saw Tooth Blade
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
1996-07-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
53
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
CE
Product descriptions from the supplier

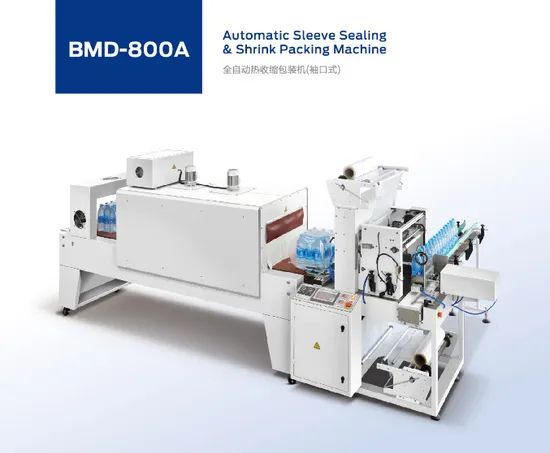

Automatic PET Bottles Heat Shrink Wrap Machine Shrink Packaging Machine
Application:
Large capacity bottles arranged in multiple rows, tray-free, including soda bottles, bottled water, beer containers, and similar. Compatible and integrable with automated filling systems.
Features:

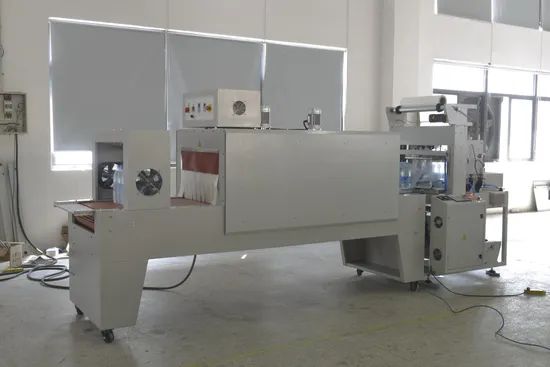

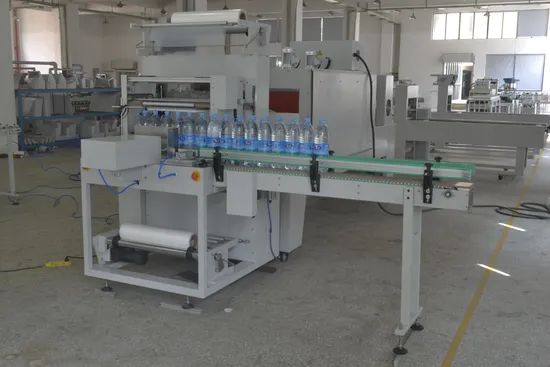

The BMD-800A is a fully automated shrink wrapping system featuring an integrated sleeve sealer and shrink tunnel that handles product feeding, stacking, film sealing, cutting, and bag shrinking without manual intervention. This machine is commonly applied in food, pharmaceutical, cosmetic, printing, hardware, and various other sectors.
This device handles round or square bottles, cans, and gable-top cartons. It integrates with filling or labeling equipment to enable a fully automated production line.
3. Bottles can be collated faster by a special faster and stable collating device and never fall down.
Equip with robust U-shaped alloyed seal blade and serrated cutting blade, coated in anti-adhesion Teflon, stabilized by a four-point support structure, delivering a powerful seal capable of handling thicker PE films for heavy-duty applications.
Row settings are available via the touchscreen. If the product dimensions vary, simply modify the machine’s packing configuration quickly, no mold changes required.

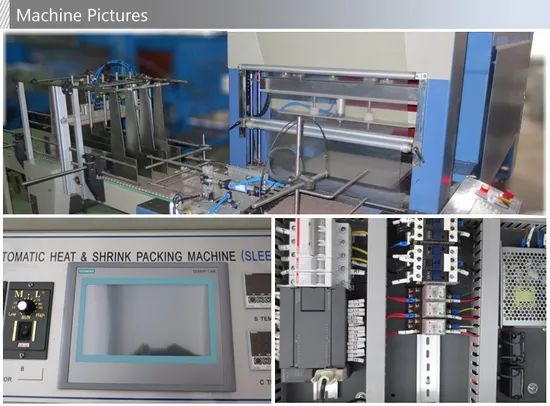

6. Adopt Siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.
7. Optional output roller table or conveyors are available.
8. Optional safety cover is available
Automatic PET Bottles Heat Shrink Wrap Machine Shrink Packaging Machine
Automatic PET Bottles Heat Shrink Wrap Machine Shrink Packaging Machine
A Brief Introduction of the Company
Ruian Huadong Packing Machinery Co., established in 1996, situated in Feiyun District, Ruian City, Zhejiang Province. The company combines R&D, production, sales, and after-sales support. It boasts strong technical expertise, state-of-the-art manufacturing tools, skilled personnel, and comprehensive service follow-up.
Our core offerings include fully automated heat shrink wrapping systems such as L-bar auto sealing and shrink packaging units, side auto sealing and shrink packaging machines, and automatic sleeve heating and shrink wrapping solutions, along with complementary equipment. Additionally, we offer OEM support to other manufacturers or businesses.
The majority of our equipment is CE certified. Known for superior build and competitive cost, our machines are widely used domestically and shipped to more than 40 countries. We have established a strong standing in the shrink wrapping sector.
We strongly uphold a partnership-driven approach centered on "integrity and customer satisfaction." Through consistent performance, we have earned the confidence of international and domestic clients, and we are eager to expand our collaboration with emerging partners.
Automatic PET Bottles Heat Shrink Wrap Machine Shrink Packaging Machine
Application:
Large capacity bottles arranged in multiple rows, tray-free, including soda bottles, bottled water, beer containers, and similar. Compatible and integrable with automated filling systems.
Features:
The BMD-800A is a fully automated shrink wrapping system featuring an integrated sleeve sealer and shrink tunnel that handles product feeding, stacking, film sealing, cutting, and bag shrinking without manual intervention. This machine is commonly applied in food, pharmaceutical, cosmetic, printing, hardware, and various other sectors.
This device handles round or square bottles, cans, and gable-top cartons. It integrates with filling or labeling equipment to enable a fully automated production line.
3. Bottles can be collated faster by a special faster and stable collating device and never fall down.
Equip with robust U-shaped alloyed seal blade and serrated cutting blade, coated in anti-adhesion Teflon, stabilized by a four-point support structure, delivering a powerful seal capable of handling thicker PE films for heavy-duty applications.
Row settings are available via the touchscreen. If the product dimensions vary, simply modify the machine’s packing configuration quickly, no mold changes required.
6. Adopt Siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.
7. Optional output roller table or conveyors are available.
8. Optional safety cover is available
Automatic PET Bottles Heat Shrink Wrap Machine Shrink Packaging Machine
| Technical data | BMD-800A |
| Sealing type | sleeve sealing |
| Power supply | 380V/50-60Hz/3phase |
| Max product size | 420(L) x 300(W) x 300(H) mm |
| Packing capacity | 8 - 20 packs/min |
| Film type | polyethylene (PE) film |
| Max film size | 630 (width) x 280mm(outer diameter) |
| Power consumption | max. 20kw |
| Shrink tunnel oven size | 1800mm(L) x 700(W) x 400(H) mm |
| Tunnel conveyor speed | variable, 15m/min |
| Tunnel conveyor | silicon coated rods or stainless steel mesh conveyor |
| Working height | 850-950 mm |
| Air pressure | 0.5MPa (5 bar) |
| Sealing knife | Teflon coated "U" knife and sawtooth knife with permanently heated bar |
| Main control components | Siemens PLC and touch screen, Omron temperature controller, relay and sensor |
| Machine main material | powder coated carbon steel |

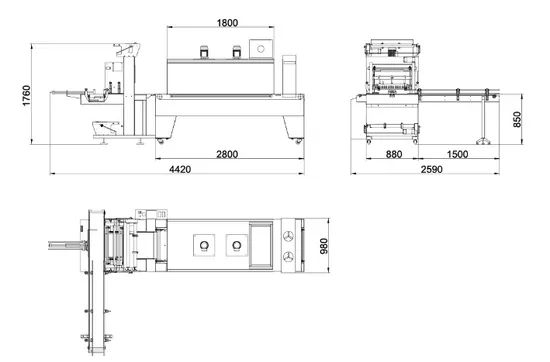

| Machine dimensions | 4420 x 2590 x 1760mm |
| Machine weight | 1000kgs |
A Brief Introduction of the Company
Ruian Huadong Packing Machinery Co., established in 1996, situated in Feiyun District, Ruian City, Zhejiang Province. The company combines R&D, production, sales, and after-sales support. It boasts strong technical expertise, state-of-the-art manufacturing tools, skilled personnel, and comprehensive service follow-up.
Our core offerings include fully automated heat shrink wrapping systems such as L-bar auto sealing and shrink packaging units, side auto sealing and shrink packaging machines, and automatic sleeve heating and shrink wrapping solutions, along with complementary equipment. Additionally, we offer OEM support to other manufacturers or businesses.
The majority of our equipment is CE certified. Known for superior build and competitive cost, our machines are widely used domestically and shipped to more than 40 countries. We have established a strong standing in the shrink wrapping sector.
We strongly uphold a partnership-driven approach centered on "integrity and customer satisfaction." Through consistent performance, we have earned the confidence of international and domestic clients, and we are eager to expand our collaboration with emerging partners.
Automatic PET Bottles Heat Shrink Wrap Machine Shrink Packaging Machine
