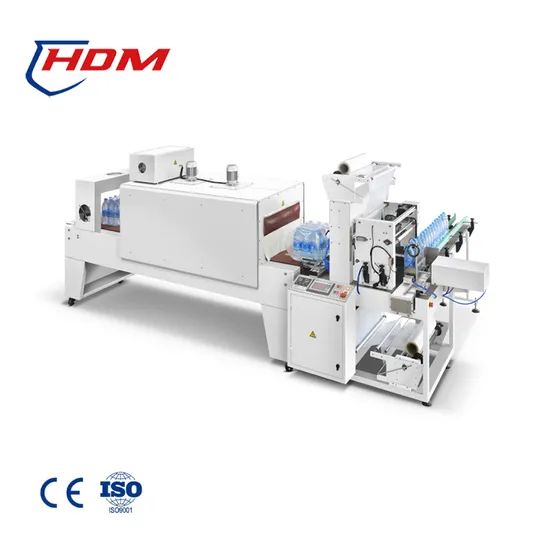

Automatic Plastic Bottle Shrink Wrap Machine Heat Shrink Packaging Machine
1 Set
$9,0001 Set
$11,000Product information
High-quality Automatic Plastic Bottle Shrink Wrap Machine Heat Shrink Packaging Machine supplied by Ruian Huadong Packing Machinery Co., Ltd.. Bulk wholesale pricing ranges from $9,000 to $11,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
20sets/Month
HS Code:
84224000
Automatic Grade:
Automatic
Model NO.:
BMD-800A
Specification:
CE, SGS, TUV
Origin:
China
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR
Specifications
Production Capacity:
20sets/Month
HS Code:
84224000
Automatic Grade:
Automatic
Model NO.:
BMD-800A
Specification:
CE, SGS, TUV
Origin:
China
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR
Packaging Material:
Film
Packaging:
Film
Application:
Food, Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Medical
Adjust Speed:
Frequency Conversion Speed Regulation
Trademark:
HUADONG
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Port Of Loading:
Ningbo Port, Shanghai Port
Film Used:
PE Film
Type:
PE Shrink Film Machine
Sealing Type:
Sleeve Sealing
Heating Mode:
Stainless Steel Heating
Manner Of Packing:
Two Sides Open
Transport Package:
Wooden Case
Sealing Knife:
an "U" Knife and a Saw Teeth Blade
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
1996-07-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
53
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
CE
Product descriptions from the supplier
Automatic Plastic Bottle Shrink Wrap Machine Heat Shrink Packaging Machine
Application:

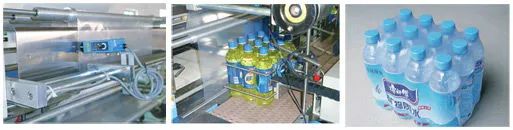

Big bottles in multi-row without trays such as drinking bottles, pure water bottles, beer bottles, etc. It can be connected and work with auto filling machine.
Features:
1. BMD-800A is a fully automatic shrink packaging machine including sleeve sealer and shrink tunnel which can feed products, collating, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, cosmetics, printing, hardware, and other industry.
2. This machine can collate bottles (round or square), cans, gable cartons, automatically. It can connect filling machine or labelling machine to make production line unmanned.
3. Bottles can be collated faster by a special faster and stable collating device and never fall down.
4. Adopt durable "u" shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats supported by four columns, the sealing line is very strong and can use thicker PE film for heavy products.
5. Rows can be set on the touch screen. When product size changes only adjust packing size on the machine within a short time without changing any molds.
6. Adopt Siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.
7. Optional output roller table or conveyors are available.
8. Optional safety cover is available.
Automatic Plastic Bottle Shrink Wrap Machine Heat Shrink Packaging Machine
Automatic Plastic Bottle Shrink Wrap Machine Heat Shrink Packaging Machine
A Brief Introduction of The Company
Ruian Huadong Packing Machinery Co., Ltd., founded in 1996, located in Feiyun down, Ruian City, Zhejiang province. Our company integrates scientific research, manufacture, marketing with services. It has abundant tachnical strength, advanced production equipment, high quality staffs and perfect post-services.
The main products of our company are automatic heat shrink wrapping machinery such as auto L-bar sealing & shrink packing machine, automatic side sealing & shrink packing machine, automatic sleeve heat & shrink packing machine and related equipments. Also we are glad to provide OEM service for other manufacturer or company.
Most of our machines have CE certificate. Our machines are famous for high quality and reasonable prices. They are popular in domestic and exported to over 40 countrices. Till now, we have good reputation around shrink packing industry.
On the basis of mutual benefit, we firmly insist on the principle of "credit and customers satisfication first". We have won the trust of clients form home and abroad and we are also looking forward to wider cooperation with new customer.
Application:
Big bottles in multi-row without trays such as drinking bottles, pure water bottles, beer bottles, etc. It can be connected and work with auto filling machine.
Features:
1. BMD-800A is a fully automatic shrink packaging machine including sleeve sealer and shrink tunnel which can feed products, collating, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, cosmetics, printing, hardware, and other industry.
2. This machine can collate bottles (round or square), cans, gable cartons, automatically. It can connect filling machine or labelling machine to make production line unmanned.
3. Bottles can be collated faster by a special faster and stable collating device and never fall down.
4. Adopt durable "u" shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats supported by four columns, the sealing line is very strong and can use thicker PE film for heavy products.
5. Rows can be set on the touch screen. When product size changes only adjust packing size on the machine within a short time without changing any molds.
6. Adopt Siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.
7. Optional output roller table or conveyors are available.
8. Optional safety cover is available.
Automatic Plastic Bottle Shrink Wrap Machine Heat Shrink Packaging Machine
| Technical data | BMD-800A |
| Sealing type | sleeve sealing |
| Power supply | 380V/50-60Hz/3phase |
| Max product size | 420(L) x 300(W) x 300(H) mm |
| Packing capacity | 8 - 20 packs/min |
| Film type | polyethylene (PE) film |
| Max film size | 630 (width) x 280mm(outer diameter) |
| Power consumption | max. 20kw |
| Shrink tunnel oven size | 1800mm(L) x 700(W) x 400(H) mm |
| Tunnel conveyor speed | variable, 15m/min |
| Tunnel conveyor | silicon coated rods or stainless steel mesh conveyor |
| Working height | 850-950 mm |
| Air pressure | 0.5MPa (5 bar) |
| Sealing knife | Teflon coated "U" knife and sawtooth knife with permanently heated bar |
| Main control components | Siemens PLC and touch screen, Omron temperature controller, relay and sensor |
| Machine main material | powder coated carbon steel |
| Machine dimensions | 4420 x 2590 x 1760mm |
| Machine weight | 1000kgs |
