Automatic Powder Coating Plant Line with Cyclone Recovery Booth
Piece
Negotiable
Product information
High-quality Automatic Powder Coating Plant Line with Cyclone Recovery Booth supplied by Hangzhou Feifu Import and Export Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Booth The Average Wind Speed:
0.5m/Sec.(150mm/Aq)
Production Capacity:
1000PCS/Years
Weight:
1000kgs
Warranty:
12 Months
Cartridges Filter:
12PCS
Exhaust:
15000 M3/Hr(150mm/Aq)
Power:
15kw
Fluorescent Lamp:
40W
Specifications
Booth The Average Wind Speed:
0.5m/Sec.(150mm/Aq)
Production Capacity:
1000PCS/Years
Weight:
1000kgs
Warranty:
12 Months
Cartridges Filter:
12PCS
Exhaust:
15000 M3/Hr(150mm/Aq)
Power:
15kw
Fluorescent Lamp:
40W
HS Code:
8424899990
Fan Type:
Anti-Explode Fan
Method Type:
Automatic
Trademark:
COLO
Size:
Can Be Customized
Model NO.:
Customized powder coating booth
Type:
Electrostatic Spraying Equipment
Trade Term:
FOB, CIF, CFR, EXW
Key Selling Points:
High Productivity
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Applicable Industries:
Machinery Repair Shops, Powder Coating Line
Machine Type:
Multi Cyclone Powder Coating Booth
Transport Package:
Naked Package/Wooden Package
Condition:
New
Port Of Loading:
Ningbo Port, Shanghai Port
After Sales Service:
Online
Core Components:
PLC, Motor
Booth Carbin Material:
PP Plastic Plate
Coating:
Powder
Item:
Powder Coating Booth
Specification:
W*H*D customed
Origin:
Zhejiang Hangzhou
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-01-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
1
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo Port, Shanghai Port
Certificates:
Best Powder Coating Enterprise in china, Business license, CE and ISO certificate, CE certificate, Company Certificates, Company certification, Foreign trade license, SGS Certification
Product descriptions from the supplier

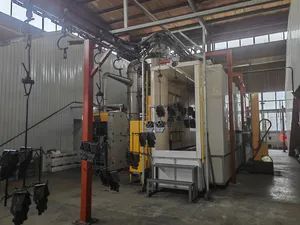

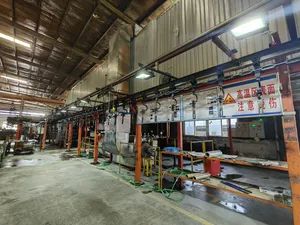

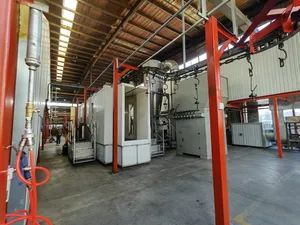

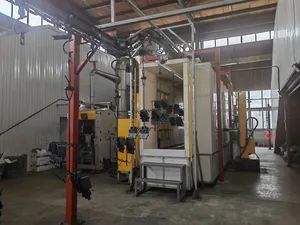

Automatic powder coating plant line with cyclone recovery booth
This automatic powder coating line with cyclone recovery spraying booth suitable for large quantities of multi-color workpieces spray painting operations.
The automatic powder coating lineinclude pp plastic powder coating booth with stainless steel cyclone and automatic powder caoting spraying system, powder coating curing tunnel and overhead conveyor system,it's efficient solution for color change demands.
Automatic Powder Coating LineConfiguration Characteristics
1. Automatic powder coating booth wall is made of anti-static plastic it does not attract powders which minimizes powder accumulation on the surface.There's air clean system continuously transports over sprayed powder from the booth floor, quickly recycling it back to the powder feed container.
2. Stainless steelcyclone achieves recycling efficiency up to 98%, a great saving of powders. a quick cleaning takes around 15 minutes.
3. The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.
3. The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.
4.Automatic powder coating gun system allows custom design to select 2-24 pcs of auto spray guns to achieve any scale of production, onecentral control cabinet combines all gun controller for integrated operation, enbales to set parameters only at one host unit to control whole system.
5. Powder self-recycling feed center ensures maximum utilization of powder and least waste, so you no need to worry about the automatic powder recovery, filtering and powder return to the powder hopper.
Powder Coating Curing Tunne
Tunnel oven are designed for continuous operations in automatic powder coating line. Maximum painting efficiency is obtained with high capacities by means of those systems.
The powder coating oven made of 100mm rock wool board features heat-resistent. Quickly and uniformly raise to required temperature up to 250'C, increase production efficiency. With fan that circles hot air throght the entire chamber ensures uniform temperature.
Heating source can be electric, gas or diesel.
Powder Coating Curing Tunne
Tunnel oven are designed for continuous operations in automatic powder coating line. Maximum painting efficiency is obtained with high capacities by means of those systems.
The powder coating oven made of 100mm rock wool board features heat-resistent. Quickly and uniformly raise to required temperature up to 250'C, increase production efficiency. With fan that circles hot air throght the entire chamber ensures uniform temperature.
Heating source can be electric, gas or diesel.

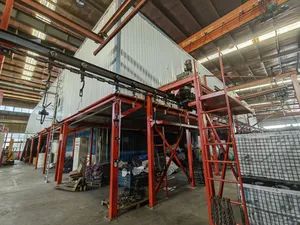

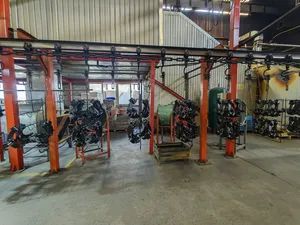

Overhead Conveyor System
Overhead conveyor system is the most commonly used solution for wet paint or powder coating finishing. The type of conveyor selected for your operation will depend on the weight, size and even the shape of the items being transported. We we can design whole conveyor system specially for your needs.
Autoamtic spray booth size, cyclone quantity, spray booth material can be customized.
|
Booth material
|
Wall: pp plastic, floor: SUS 304, chassis: galvanized square tube
|
|
Inside dimension
|
W1700x H2100x L8600mm
|
|
Opening dimension
|
W1000x H2100mm
|
|
Fan power
|
22kw, Q=15000m^3/h, P=3500-3000Pa
|
|
Powder recovery system:
304 big cyclone+
4x4 filter recovery system
|
Cyclone diameter 1.3 meters,
1.2m rotary wing type filter 16 sets,
325x600mm filters 32 pcs
|
Cyclone type autoamtic pp powder coating spray booth applications
The cyclone type automatic pp powder spray booth is mostly used for the powder coating line spraying operation, and is used with the automatic spraying gun system, which is suitable for the batch spraying of aluminum profiles, doors, windows and furniture, shelves and other workpieces.
Standard and Safety Export Packages
Inside with environment-friendly soft bubble paper , EPE foam wrapped well, carton outside for the delivery.
Please contact us NOW to get the latest powder coating product catalog and price.Welcome to send an inquriy to us.
