Automatic Roll to Roll Flexo Offset Printing Machine

Automatic Roll to Roll Flexo Offset Printing Machine - Image 1
Automatic Roll to Roll Flexo Offset Printing Machine - Image 2
Automatic Roll to Roll Flexo Offset Printing Machine - Image 3
Automatic Roll to Roll Flexo Offset Printing Machine - Image 4
Automatic Roll to Roll Flexo Offset Printing Machine - Image 1
Automatic Roll to Roll Flexo Offset Printing Machine - Image 2
Automatic Roll to Roll Flexo Offset Printing Machine - Image 3
Automatic Roll to Roll Flexo Offset Printing Machine - Image 4

1 Set

$30,000

1 Set

$10,000

Product information

High-quality Automatic Roll to Roll Flexo Offset Printing Machine supplied by Hangzhou Royall Import & Export Co., Ltd.. Bulk wholesale pricing ranges from $10,000 to $30,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.

Plate Thickness:

1.7mm

Printing Speed:

100m/Min

Motor Power (KM/HP):

20kw

Production Capacity:

30set/Month

Printing Width:

50-520mm

Max. Width Of Substrate:

520mm

Max. Unwinding Diameter:

600mm

Automatic Grade:

Automatic

Specifications

Plate Thickness:

1.7mm

Printing Speed:

100m/Min

Motor Power (KM/HP):

20kw

Production Capacity:

30set/Month

Printing Width:

50-520mm

Max. Width Of Substrate:

520mm

Max. Unwinding Diameter:

600mm

Automatic Grade:

Automatic

Origin:

China

Trade Term:

FOB, CFR, CIF, EXW

Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Color & Page:

Multi-Colour

Usage:

Paper Printer, Label Printer, Bill Printer, Cloths Printer

Printing Paper Size:

Paper, Plastic Film

Trademark:

ROYAL PACKING

Model NO.:

RYYT-520

Type:

Roll to Roll

Port Of Loading:

Shanghai Port; Ningbo Port

Ink Type:

UV Ink

Transport Package:

Wooden Case

Printing Color:

as You Want

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Not specified

Year Established:

2012-07-16

Annual Revenue Amount:

Not specified

Numbers Of Employees:

15

Preferred Payment Term:

LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Preferred Trade Term:

FOB, CFR, CIF, EXW

Port Of Loading:

Shanghai Port; Ningbo Port

Certificates:

CE

Product descriptions from the supplier

RYYT 520 Automatic Roll to RollFlexoOffset PrintingMachine

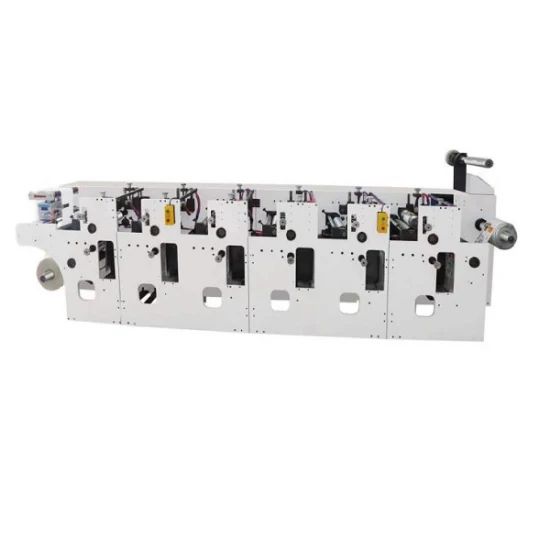

 Automatic Roll to Roll Flexo Offset Printing Machine
1 discharging, 2 automatic constant tension, 3 scraper, 4 printing unit, 5 traction, 6 automatic constant tension, 7 center receiving

Feature:
1. From the discharge to the receipt of the short distance.
2. The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.
3. Repeatedly printing the circumference of 190.5-635MM, filling the blank of the cascading flexographic printing machine, the slanting trademark printing machine, the petal printing machine and the printing length.
4. The use of gear color to solve the 360-degree coloring device gap, assembly, wear, etc., affecting the color accuracy and printing instability.
Automatic Roll to Roll Flexo Offset Printing Machine5. From left to right: coil feeding, printing,  curing,  film cutting, winding a coherent completion .
6. Water-based ink (UV +IR) printing, pollution-free, environmentally friendly, printing speed varies according to the network cable, the speed is also different, the fastest speed of printing labels is 90 meters per minute.
7. Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.
8. Printing materials: paper 100~400g/m2 self-adhesive soft coil and other materials.


Technical parameters
Printed form Flexo
Ink type UV Ink
Printing speed 10-100m/min
Mechanical speed 10-110m/min
Max.width of substrate 520mm
Printing width 50-520mm
Printing circumference 190.5-635mm
Plate thickness 1.7mm(special advance notice)
Anilox roller Φ85*540*5mm
Aluminum guide roller Φ70*550mm
Printing bottom roller Φ85*550mm
Max. unwinding diameter Φ600 mm
Max.winding diameter Φ600 mm
Max. oven temperature 80ºC
Substrate core diameter 74mm
Total power of the whole machine 30KW
Drying heat source Electric heating
Machine weight 4000KG
Dimensions 5400(L) x1200 (W) x 1200(H)mm

Automatic Roll to Roll Flexo Offset Printing MachineAutomatic Roll to Roll Flexo Offset Printing Machine
