Automatic Soldering Machine PCB Wave Solder Machine External Spray System
1 Piece
$20,000Product information
High-quality Automatic Soldering Machine PCB Wave Solder Machine External Spray System supplied by Shenzhen Jaguar Automation Equipment Co., Ltd.. Bulk wholesale pricing is $20,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
100PCS/Month
Warranty:
12 Months
Weight:
1600kg
Length Of Heating Zones:
2000
Preheating Power:
220V 5kw
Solder&NbspPot&NbspCapacity:
220kg
Solder Power:
380V&Nbsp6kw
Heating Zones:
4
Specifications
Production Capacity:
100PCS/Month
Warranty:
12 Months
Weight:
1600kg
Length Of Heating Zones:
2000
Preheating Power:
220V 5kw
Solder&NbspPot&NbspCapacity:
220kg
Solder Power:
380V&Nbsp6kw
Heating Zones:
4
Power Supply:
5 Line, 3phase, 380V 50/60Hz
HS Code:
85151900
Automatic Grade:
Automatic
Specification:
CE
Certification:
CE, ISO, CCC
Application:
Electrical & Electronics Industry
Trade Term:
FOB, EXW
Heating Method:
IR(Standard)
Trademark:
Jaguar
Solder Type:
Lead-Free / Sn-Pb
Model NO.:
N450
Condition:
New
Control&Nbsp&NbspMethod:
Press&NbspKey -PLC
Port Of Loading:
Shenzhen
Origin:
Shenzhen, China
Payment Term:
T/T
Installation:
Vertical
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-04-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB, EXW
Port Of Loading:
Shenzhen
Certificates:
Automatic Loader CE Certificates, Business license, Copyright certificate of welding temperature control information system, reflow oven machine CE Certificates, Screen Printing CE Certificates, SGS Audited Supplier, Shenzhen Intelligent Equipment Industry Association Vice President units, SMT PCB Conveyor CE Certificates, Tax Registration Certificate, The copyright certificate of the intelligent adjustment system of welding parameters, Utility model patent certificate-Double chain, Utility model patent certificate-Mesh belt and chain, Wave soldering CE Certificates
Product descriptions from the supplier

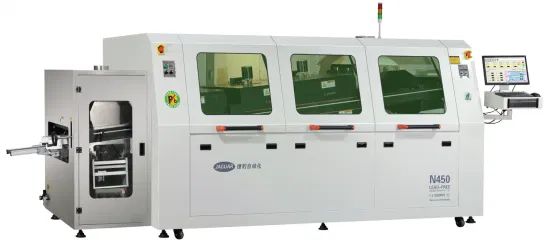

Computerized lead-free dual wave soldering machine
INTRODUCTION:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by pneumatic cylinders. PLC controlled, accurate and reliable.
4. Preheating system uses four independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
5. Titanium solder fingers, high strengthened double v-groove with tin resistant
6. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
7. Pre-heat passage with modularized design, environmental protection and safety, convenient for cleanup.
8. PID close loop controlled hot air pre-heaters
9. Timer startup feature for solder pot, solder melted in within 90 minutes.
10. With black box memory function, the machine can always store the SPC data, improve work efficiency.
11. Automatic finger cleaner equipped.
12. Intelligent monitoring and alarm system ensure the stable performance and operators' safety.
13. Nitrogen Structure (optional): High accuracy Oxygen analyzer, Nitrogen consumption of 16m3/hr based on 1000ppm.
Specification:
| Model No. | JAGUAR N450 |
| Number of heating zones | 4 |
| Length of heating zones | 2100mm |
| Total/steady consumption | 32KW/8-12KW |
| Air supply | 0.5MPa |
| Preheating style | Hot air |
| Preheating consumption | 220V 8KW |
| Control method | PC +PLC |
| Range of temp. setpoint | Room temperature---300ºC |
| Preheating time | About 10-15mins for setting 150ºC |
| Solder Application | Lead-free / Sn-Pb |
| Solder pot capacity | 400KG |
| Solder pot temperature | 300ºC |
| Solder pot material | Cast Iron Ceramic Coating/TA1 Titanium/316 Stainless Steel |
| Heater consumption | 380V 8KW |
| Solder temp. control method | PID+SSR |
| Wave motor consumption | 1KW 220V |
| Wave height Control | Inverter |
| Solder melting time | About 180mins for setting 250ºC |
| PCB width | 60-450mm |
| Product clearance | Top 120mm(option 160mm) Bottom 15mm |
| Conveyor speed | 0-2000mm/min |
| Process height | 750+/-20mm |
| Conveyor direction | L→R (R→L optional) |
| Conveyor Inclination | 4-7 º |
| Process width adjustment | Manual |
| UPS | Option |
| Nitrogen structure | Option |
| Flux pressure/capacity | 3-5 bar/6.5L |
| Weight | 1800KG |
| Power Requirement | 3P5W,380/220V 50Hz 63A |
| Dimensions | 4550(L)*1420(W)*1750(H) |
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
What we can do for you?
1. We provide full SMT and THT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT and THT factory setup
5. We can solve any question about SMT and THT
