Automatic Wire Mesh Machine Portable Inverter Welding Machine Electric Transformer
1-4 Set
$3,9995-9 Set
$3,49910 Set
$2,999Product information
High-quality Automatic Wire Mesh Machine Portable Inverter Welding Machine Electric Transformer supplied by Guangdong Ur Welder Co., Ltd.. Bulk wholesale pricing ranges from $2,999 to $3,999 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Welding Thickness:
0.02-9.0mm
Frequency:
1-5kHz
Max. Output Current:
1000A(Primary)
Production Capacity:
200 Sets Per Month
Rated Capacity:
220kVA
Duty Cycle:
5%
Specification:
578 * 600 * 305 mm
Package Size:
60.00cm * 62.00cm * 45.00cm
Specifications
Welding Thickness:
0.02-9.0mm
Frequency:
1-5kHz
Max. Output Current:
1000A(Primary)
Production Capacity:
200 Sets Per Month
Rated Capacity:
220kVA
Duty Cycle:
5%
Specification:
578 * 600 * 305 mm
Package Size:
60.00cm * 62.00cm * 45.00cm
Package Gross Weight:
80.000kg
HS Code:
8515190090
Certification:
CE ISO
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Advantage:
Easy Operation High Efficiency
Product Name:
Electric Resistance Welding Machine
Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Origin:
Guangdong, China
Trademark:
HUANDZK
Model NO.:
IDP-1000
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Welding Way:
Resistance Spot Welding
Port Of Loading:
SHENZHEN
Welding Type:
Spot Welding/Seam Welding/Butt Welding/Nut Welding
Payment Methods:
Support payments in USD
Type:
Three-Phase Secondary Rectification Welder
Style:
Vertical
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-04-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, Others, FCA
Port Of Loading:
SHENZHEN
Certificates:
A high-precision real-time control device for resistance welding welding pressure, A precision resistance spot welding machine patent, CERTIFICATE OF CONFORMITY, GB/T 19001-2016/1S0 9001:2015, Huandian high frequency welding control software V1.0, Huandian Precision Welding Control Software V1.0, Huandian resistance welding pressure real-time control software V1.0, Huandian spot welding machine welding pressure control application system V1.0, Precision welding control software, Protection components for resistance spot welding machines, Resistance spot welding machine circulation cooling device, Spot welding machine welding pressure control device, Welding and seam welding sealing detection system
Product descriptions from the supplier

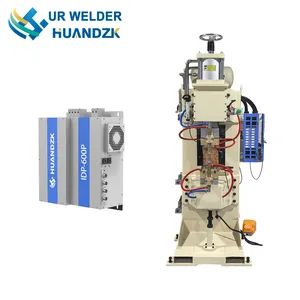

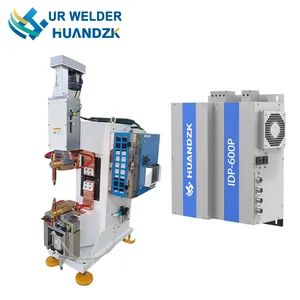

IDP series precision welding power supply is a high-frequency inverter DC power supply developed by us, the main components are imported to ensure product reliability and stability, while applying today's most advanced inverter power supply technology and dsp electronic control technology. This power supply has powerful welding quality control ability, data monitoring function and welding quality traceability function, at the same time has a high control accuracy (0.2 ms), small heat, small damage to the workpiece, welded joints good appearance, welding tensile strength, welding stability, welding defective rate is low and so on, and also supports the optional upper unit group network group control and real-time welding quality monitoring system.
Power Supply Specifications:
| Model | IDP-600 | IDP-800 | IDP-1000 | |
| Supply Voltage | 3-phase 380V(50/60V) | |||
| Control Frequency | 1kHz/2kHz/3kHz/4kHz/5kHZ | |||
| Max Output Current | 600A(Primary) | 800A(Primary) | 1000A(Primary) | |
| Rated Power | 120KVA | 170KVA | 220KVA | |
| Control Method | Constant Pulse Width/Constant Peak Primary/Constant Secondary Current/Constant Secondary Voltage/Constant Power/Hybrid Control | |||
| Number Of Welding Norms | 256 Group Norms | |||
| Welding Time Setting | Pre-pressure Time | 0-9999ms | ||
| Pressurization Time | 0-9999ms | |||
| Slow Rise 1 Time | 0-9999cyc | |||
| Welding 1 Time | 0-9999cyc | |||
| Slow Down 1 Time | 0-9999cyc | |||
| Cooldown | 0-9999cyc | |||
| Slow Rise 2 Time | 0-9999cyc | |||
| Welding 2 Time | 0-9999cyc | |||
| Slow Down 2 Time | 0-9999cyc | |||
| Slow Rise 3 Time | 0-9999cyc | |||
| Welding 3 Time | 0-9999cyc | |||
| Slow Down 3 Time | 0-9999cyc | |||
| Holding Time | 0-9999ms | |||
| Rest Period | 0-9999ms | |||
| Finish Time | 0-9999ms | |||
| Number Of Cycles | 0-9 | |||
| Setting Range For Secondary Current | 0.1-25.00KA | 0.2 - 35.00KA | 0.3 - 45.00KA | |
| Setting Range Of Pulse Width | 1%-100% | |||
| Setting Range For Secondary Voltage | 0.02-10V | |||
| Size | 578*305*600mm | |||
| Weight | 40KG | |||
| Matching Transformer | IDT-925C | IDT-935C | IDT-945C | |
| Communication Method | RS-232/RS-485/Ethernet , etc. | |||
| Cooling Method | Water cooling | Water cooling | Water cooling | |
Transformer Specifications:
| Model | IDT-925C | IDT-935C | IDT-945C |
| Supply Voltage | PWM 500V | PWM 500V | PWM 500V |
| Rated Power | 120KVA | 170KVA | 220KVA |
| No load secondary voltage | 9.1V | 11.3V | 11V |
| Max. Utilization Rate | 25000A(5%) | 40000A(10%) | 50000A(5%) |
| Cooling Method | Water cooling | Water Cooling | Water Cooling |
| Input Frequency | 1-5kHz | 1-5kHz | 1-5kHz |
| Transformer Volume Ratio | 55:1 | 44:1 | 55:1 |
| Sizes | 268 * 160 * 125mm | 334 * 160 * 125mm | 343 * 146 * 106mm |
| Weight | 19 KG | 19.5 KG | 30 KG |
Guangdong Ur Welder Co., Ltd. is a high-tech enterprise integrating R&D, manufacturing and sales of resistance welding systems and resistance welding peripherals, such as resistance welding power supply, precision spot welder, welding monitor, etc. All of the company's resistance welding products are independent research and development, with all the independent intellectual property rights.
Ur Welder 's creative team has more than ten years of experience in resistance welding industry, and now we have formed a strong R&D team with professors and doctors as the core. Ur Welder insists on investing a large amount of R&D funds every year to maintain the competitiveness of its products and to ensure the leading technical R&D strength.
Ur Welder 's creative team has more than ten years of experience in resistance welding industry, and now we have formed a strong R&D team with professors and doctors as the core. Ur Welder insists on investing a large amount of R&D funds every year to maintain the competitiveness of its products and to ensure the leading technical R&D strength.
