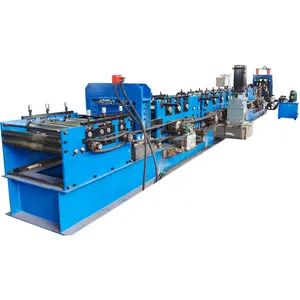

Automatically Making Tile Automatic Change C Z Purlin Making Roll Forming Machine
Piece
Negotiable
Product information
High-quality Automatically Making Tile Automatic Change C Z Purlin Making Roll Forming Machine supplied by Cangzhou Guangchi Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Size:
1200.00cm * 100.00cm * 100.00cm
Package Gross Weight:
13000.000kg
Production Capacity:
200PCS/Year
Main Frame:
350h Steel
Roller Material:
45#Steel Chrome Plated
Certification:
CE, ISO
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specifications
Package Size:
1200.00cm * 100.00cm * 100.00cm
Package Gross Weight:
13000.000kg
Production Capacity:
200PCS/Year
Main Frame:
350h Steel
Roller Material:
45#Steel Chrome Plated
Certification:
CE, ISO
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Cutting Blade Material:
Cr 12 High Grade Steel
Customized:
Customized
Transmission Method:
Electric
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Condition:
New
Control System:
PLC(Imported Brand)
Raw Material:
PPGI PPGL Gi Gl
Machine Type:
Roll Forming machine
Usage:
Roof
Payment Methods:
Support payments in USD
Port Of Loading:
Tianjin Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-12-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
9
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
Certificates
Product descriptions from the supplier
SONA2024 2.2.1
Material | Raw material | Galvanized steel or PPGI |
Thickness | 0.3-0.6mm | |
Machine | Roller station | 16 roller stations or depend on customer' drawing |
Shaft diameter | 75mm | |
Solid shaft material | High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment | |
Roller material hardness 30-40 HRC | Cr12 | |
Machine dimension | 11500*1350*1750mm | |
Machine weight | About 3.0T | |
Working speed | 25-35m/min | |
Cutter | Driving way | Chain 1 inch |
Main motor | 4KW | |
Pump motor for cutter | 3 KW | |
Voltage | 380v,50hz ,3ph or Customized as customer' request | |
Control system | PLC brand | Touchable screen |
Screen | Touchable screen |
Standard Decoiler
Standard Decoiler
De-Coiler is provided to load Raw material coil on its bridge& Hold the coil and also in loop area store the row material before in process. It will hold tighten sheet coil & decoiling for roofing line smoothly.
Roll Forming
Consist pairs of contoured roll tools. While the coil stock is passing through succession contoured rolls the material bends to
its desired shape. 1.Rolling shaft :40Cr STEEL,Tempering treatment to prevent deformed and improve hardness,Shaft diameter: 75mm
2.Roller:Cr12 steel,Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase service life.
2.Roller:Cr12 steel,Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase service life.

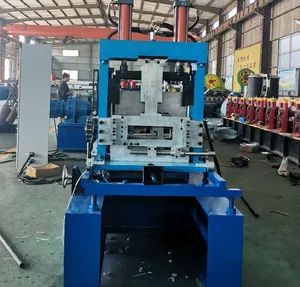

Hydraulic Cutting
Suitable for material with thickness 1-3mm
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling
Main motor=22KW , Frequency speed control. Forming speed approx.18m/minPLC Control System Omron (Touch screen: WUXI xinjie)
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling
Main motor=22KW , Frequency speed control. Forming speed approx.18m/minPLC Control System Omron (Touch screen: WUXI xinjie)
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
CONTROL PANELS
Frequency brand:Delta,PLC
brand:Delta Screen
type:Touch screen, also have buttons on the panel Screen language:English /Chinese/Spanish
Low pressure electric part: Schneiders brand
Encode:Omron brand Remark:Support multi orders input,ensure the machine canwork continuously according to different request without stop.
All the electrical parts are branded with high quality, it can be fixed easily if damaged.
Product Description

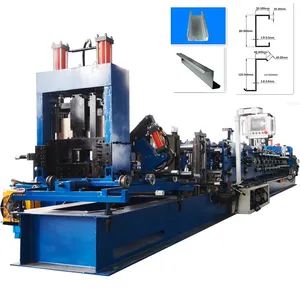

The following diagram shows the CZU layout, which allows for easy changes in C and Z and U. In addition, we also have fully automatic CZ purlins with shapes such as C, Z, U, W, T, Omega, etc.
Purlins are widely used in large buildings, high-rise buildings, subway tunnels, bridges and other fields. Through the galvanizing treatment of purlins, the service life of the purlins can be effectively increased, and the safety and stability performance of the purlins can also be improved, making the building stronger and more stable.
Company Profile
FAQ
Q:How to visit our company:
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train to Cangzhou Xi(4.5 hours),then we can pick up you.
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train to Cangzhou Xi(4.5 hours),then we can pick up you.
Q: Can you customize the machine from your company?
A: Of course, we can manufacture the machine according to your customized size demand.
A: Of course, we can manufacture the machine according to your customized size demand.
Q: How to play order?
A: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit
A: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit
Q:How to visit our company:
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
1. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
2. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
Q: How is the quality? Is there any department related to quality control?
A: All raw materials we use are quality controlled. Workers will take care of every detail when handling production and packaging. The quality control department is responsible for the quality of each process.
A: All raw materials we use are quality controlled. Workers will take care of every detail when handling production and packaging. The quality control department is responsible for the quality of each process.
Q: Is the packaging form?
A: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.
A: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.
Q: How about after-sales service?
A: TM is online 24 hours a day, and you can also contact them via email, Skype, MSN, whatsapp. and many more Two-year
warranty and parts replacement.
A: TM is online 24 hours a day, and you can also contact them via email, Skype, MSN, whatsapp. and many more Two-year
warranty and parts replacement.
