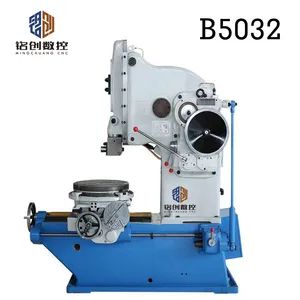

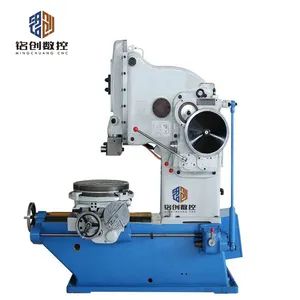

B5032 Metal Slotting Machine Vertical Shaping Machine
Piece
Negotiable
Product information
High-quality B5032 Metal Slotting Machine Vertical Shaping Machine supplied by Shandong Mingchuang CNC Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Lead Time:
10 days (1 - 1 Pieces)To be negotiated ( > 1 Pieces)
Production Capacity:
200 Set Per Month
Specification:
2000x1300x2000mm
Package Size:
2010.00cm * 1340.00cm * 2000.00cm
Package Gross Weight:
2200.000kg
Maximum Cutting Length Of Slider:
220mm
Vertical Adjustment Distance Of Slider:
230mm
Number Of Movements Of The Slider:
32.50.80.125
Specifications
Lead Time:
10 days (1 - 1 Pieces)To be negotiated ( > 1 Pieces)
Production Capacity:
200 Set Per Month
Specification:
2000x1300x2000mm
Package Size:
2010.00cm * 1340.00cm * 2000.00cm
Package Gross Weight:
2200.000kg
Maximum Cutting Length Of Slider:
220mm
Vertical Adjustment Distance Of Slider:
230mm
Number Of Movements Of The Slider:
32.50.80.125
Maximum Travel Of The Slider:
340mm
HS Code:
8461202000
Tilt Angle Of Slider:
8°
Model NO.:
B5032
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
EXW, CFR, CIF, FOB
Transport Package:
Export Specific Wooden Crate
Port Of Loading:
Qingdao Port
Payment Methods:
Support payments in USD
Payment Term:
T/T, D/P, LC
Trademark:
mingchuang
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-03-31
Annual Revenue Amount:
Not specified
Numbers Of Employees:
10
Preferred Payment Term:
T/T, D/P, LC
Preferred Trade Term:
EXW, CFR, CIF, FOB
Port Of Loading:
Qingdao Port
Certificates:
CE
Product descriptions from the supplier
SONA2024 2.2.1
Product Description
Machine Details

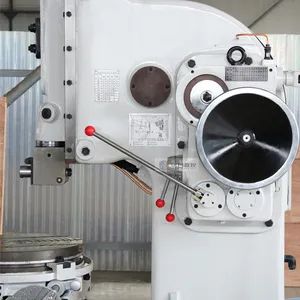

Slide pillow tilt 0-8 °
Whole body casting of bed body
The overall casting ensures the machining accuracy, stability, and service life of the lathe from the basic structure through five advantages: no splicing defects, high-precision molding, strong vibration reduction, high flexibility, and high reliability, especially suitable for the needs of medium to high precision and heavy-duty lathes.

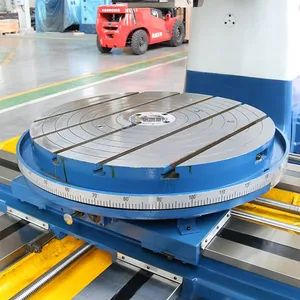

rotary table
360 ° automatic rotation, horizontal and vertical automatic feeding

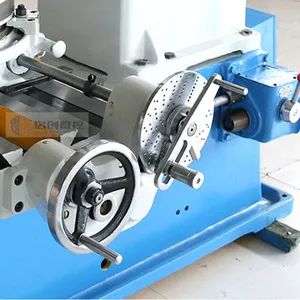

Feed range scale
Pin finished product
Insertable flat forming surface keyway
Specification
Specification | Unit | B5032 |
Max. stroke of RAM | mm | 340 |
Ram maximum slotting length | mm | 320 |
Ram motion frequency | times/min | 20.32.50.80 |
Ram tilt angle | ° | 0-8 |
Ram vertical adjustment distance | mm | 315 |
Cutter head bearing surface to the distance between the forearm bed | mm | 600 |
Table Diameter | mm | 630 |
The distance between the lower end of the sliding frame to work table | mm | 490 |
Max. longitudinal moving distance of working table | mm | 630 |
Max. transverse moving distance of working table | mm | 560 |
Table maximum rotation angle | ° | 360 |
Vertical and horizontal table power feed range | mm | 0.08-1.21 |
Table rotary feed range | mm | 0.052-0.783 |
Motor power | kw | 4 |
Motor speed | r/min | 960 |
Machine weight | kg | 3000 |
Outline dimension | mm | 2261*1495*2245 |
