BMS Fire Protection Fire Alarm Host
1 Piece
$601 Piece
$525Product information
High-quality BMS Fire Protection Fire Alarm Host supplied by Shenzhen Asenware Test and Control Technology Co., Ltd.. Bulk wholesale pricing ranges from $60 to $525 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Extendable Zones:
1-32 Zones 20
Production Capacity:
10, 000PCS/Year
Wiring Structure:
2-Wire System
Individual Zone Capacity:
20 Detectors Max.
Power Supply:
240VAC
Backup Lead Acid Battery:
24VDC
HS Code:
853110000
Model NO.:
AW-CFP2166-8
Specifications
Extendable Zones:
1-32 Zones 20
Production Capacity:
10, 000PCS/Year
Wiring Structure:
2-Wire System
Individual Zone Capacity:
20 Detectors Max.
Power Supply:
240VAC
Backup Lead Acid Battery:
24VDC
HS Code:
853110000
Model NO.:
AW-CFP2166-8
Working Mode:
Active
Trademark:
Asenware
Certification:
CE, ISO, RoHS, CCC
Transmission Mode:
Cable
Receive Frequency:
Cable
Transport Package:
EPE Inside, Carton Outside
Trade Term:
FOB, EXW, CIF
Optional Housing Color:
Grey, Red, Black, White
Origin:
Guangdong, China
Application:
Indoor, Fire Projects
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Alarm Notification:
LCD Panel & LED Indicator
Housing Material:
Metal
Working Principle:
Response to The Trigger Device
Mainboard & Zone Board:
SMT Workmanship
Package:
Seaworthy
Specification:
Working on LPCB Certificate
Port Of Loading:
Zhongshan
Alarm Volume (Within 1m):
≥110dB
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2005-06-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CIF
Port Of Loading:
Zhongshan
Certificates:
CE, CE certificate, Intertek CE, Intertek SASO, ISO9001, LPCB, LPCB Certificate, SASO certificate, SGS certificate, TUV certificate, TUV CIV certificates
Product descriptions from the supplier
BMS Fire Protection Fire Alarm Host
Introductions:
1. Based on EN54 part 2 & 4 standard.
2. Modularized design with flexible following extendable capacity.
3. Two-level control mode by a lock
4.27VDC power supply output.
5. FIRE PROTECTION, FIRE ROUTING and FAULT signal output, the output can be configured to dry relay type or wet sources type.
6.2 channel general sounders output.
7. Each zone has 1 circuit detectors input.
8. Each zone can be disable by a button.
9. RESET button to reset the panel.
10. SILENCE button to stop BUZZER and SOUNDERS.
11. EVACUATE button to start a manual fire alarm immediately.
12. TEST button to test all LEDs orderly.
13. Low-battery level protection with automatic power supply switch function
14. Optional GSM module is available for fire alarm by SMS.
Asenware, professional fire alarm solution provider.
Introductions:
1. Based on EN54 part 2 & 4 standard.
2. Modularized design with flexible following extendable capacity.
3. Two-level control mode by a lock
4.27VDC power supply output.
5. FIRE PROTECTION, FIRE ROUTING and FAULT signal output, the output can be configured to dry relay type or wet sources type.
6.2 channel general sounders output.
7. Each zone has 1 circuit detectors input.
8. Each zone can be disable by a button.
9. RESET button to reset the panel.
10. SILENCE button to stop BUZZER and SOUNDERS.
11. EVACUATE button to start a manual fire alarm immediately.
12. TEST button to test all LEDs orderly.
13. Low-battery level protection with automatic power supply switch function
14. Optional GSM module is available for fire alarm by SMS.
Asenware, professional fire alarm solution provider.

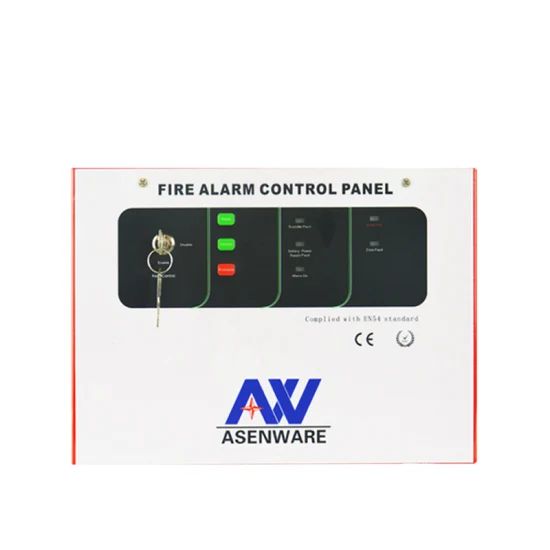

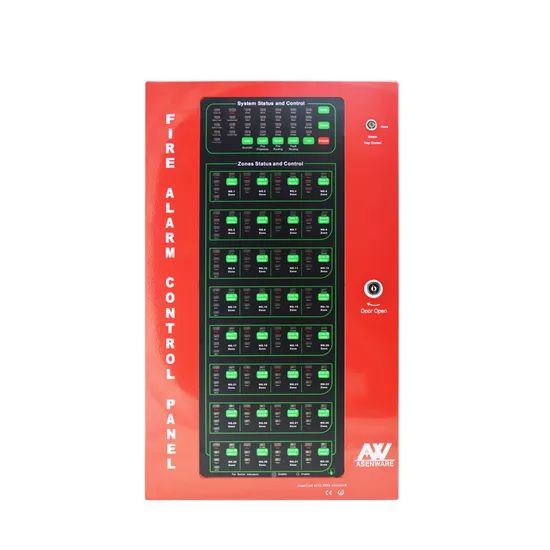

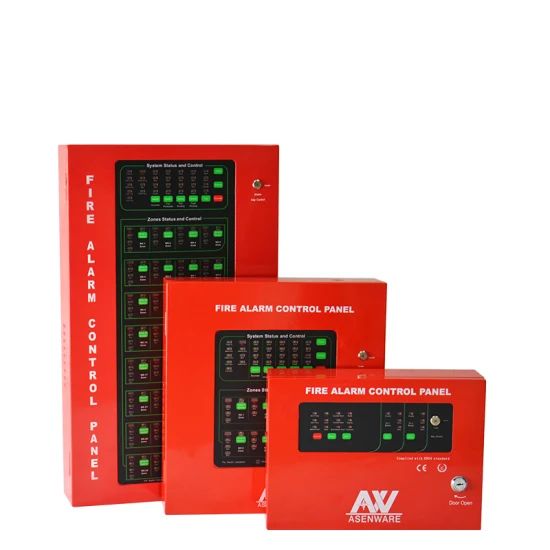

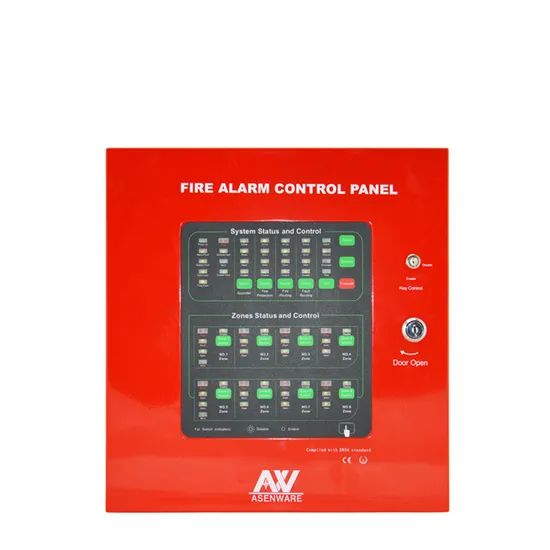

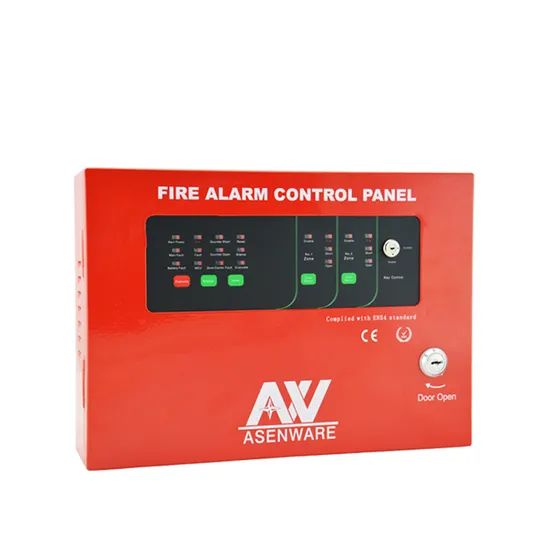

| ITEM | 1Zone panel | 2Zone panel | 4-8 Zone panel | 12-32 Zone panel |
| Model No. | AW-CFP2166-01 | AW-CFP2166-02 | AW-CFP2166-04-8 | AW-CFP2166-12-32 |
| Power specification | ||||
| Mains supply voltage | 110VAC or 240VAC | |||
| Internal power supply | 27.2VDC | |||
| Total output current limited | 500mA @ 240VAC | 500mA @ 240VAC | 3A @ 240VAC | 3A @ 240VAC |
| Main supply monitor for fault | Yes | |||
| Battery protection for low voltage | Yes | |||
| Batteries (default configuration) | 12V2AH*2 | |||
| Detector circuit specification | ||||
| Number of circuit | 1 | 2 | 4-16 | 4-32 |
| Line fault monitor for open circuit | Yes | |||
| Line fault monitor for short circuit | Yes | |||
| Line fault monitor for detector removal | Yes, if End of Line Monitor Unit fitted in place of End of Line Resistor | |||
| End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| Detector continuity diodes | Silicon 1N4001 or Schottky type (required if End of Line Monitor Unit fitted to give Detector Removal Fault) | |||
| Call point resistor value | 470 to 680 Ω, 0.225 or 0.5 watt | |||
| Maximum number of smoke/heat detectors per zone | 20 (based on a total detector current of 2mA, each detector consuming 100μA).Note: if End of Line Monitor Unit is fitted, for correct operation maxmum voltage drop must not exceed 12 volts. | |||
| Maximum number of manual call points per zone | No limit | |||
| Sounder circuit specification | ||||
| Number of general circuits | 2 | |||
| End of line resistor value | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| Line fault monitor for open circuit | Yes | |||
| Line fault monitor for short circuit | Yes | |||
| Outputs fused AT | 400mA | |||
| Maximum number of bells @ 20mA of each sounder output | 20 | |||
| Fuses | ||||
| Battery fuse | 1.5A F 20mm | |||
| Sounder outputs | 500mA F 20mm | |||
| Fire and fault output | ||||
| Output type | NC and NO relay | |||
| Maximum current | 100mA | |||
| Connection block | ||||
| Largest acceptable conductor size | 2.5mm2 | |||
| Smallest acceptable conductor size | 0.75mm2 | |||
| Size and weight | ||||
| Dimensions(mm) | 272*200*70mm | 320*231*90mm | 395X502X124 | 362X565X124 |
| Weight (without batteries) | 4kg | 5kg | 7kg | 8kg |
| Weight (with batteries) | 5.8kg | 6.8kg | 9.6kg | 12.5kg |
