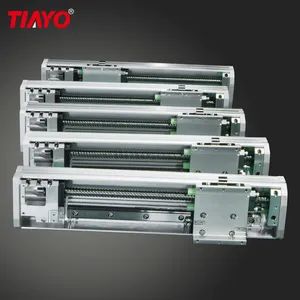

Ball Lead Screw Linear Guide Rail
Piece
Negotiable
Product information
High-quality Ball Lead Screw Linear Guide Rail supplied by Hunan Tianyou Precision Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Repeatability Accuracy:
+-0.01
Couping:
10 X 14 mm
Maximum Stroke:
1050mm
Warranty:
12 Months
Maximum Speed:
1600mm/S
Screw Lead:
5/10/20/32mm
Production Capacity:
5000 Sets/Month
Delivery Time:
7-10 Days, According to Quantity
Specifications
Repeatability Accuracy:
+-0.01
Couping:
10 X 14 mm
Maximum Stroke:
1050mm
Warranty:
12 Months
Maximum Speed:
1600mm/S
Screw Lead:
5/10/20/32mm
Production Capacity:
5000 Sets/Month
Delivery Time:
7-10 Days, According to Quantity
HS Code:
8486402900
Installation:
All Automation Machines
Material:
Aluminium
Feature:
Antiseptic, Heat-Resistant, Wear-Resistant
Product Type:
Ball Screw Linear Stage
Ball Screw:
C7@16
Trade Term:
CIF, FOB, CFR, EXW
Transport Package:
Carton Box
Origin:
China
Motor Position:
Exposed/Lower Side/Right Side/Left Side
Max Payload:
Horizontal 70kg;Vertical 17kg
Installation Way:
Horizontal/Wall Installation/Vertical
Sensor:
Inside/Outside/No Sensor
Running Mode:
Moving
Structure:
Semi-Sealed
Driven Type:
Servo Motor
Port Of Loading:
Shenzhen Port
Drive Motor:
Step Motor, Servo Motor
Payment Term:
T/T, LC, D/P, Western Union, Small-amount payment
Trademark:
TIAYO
Linear Guide:
W12 X H7.5, 2PCS
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-03-22
Annual Revenue Amount:
Not specified
Numbers Of Employees:
156
Preferred Payment Term:
T/T, LC, D/P, Western Union, Small-amount payment
Preferred Trade Term:
CIF, FOB, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
CDDIA-1, CDDIA-2
Product descriptions from the supplier
Ball Lead Screw Linear Guide Rail
TIAYO TMH Series
TMH14linear module, two guides and two sliders, with high precision, multi-segment repeat positioning, compact structure, strong versatility.
Maximum stroke: 1050mm
Repeat accuracy: +-0.01mm
Easy maintenance
Long stoke without reducing speed
High rigidity mainframe and cover: one pieceestruded aluminum structure for optimal rigidity and weight ratio.
Range of application:
It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dustfree workshops or special fields such as electronics and medical equipment, such as film, Depreciation, IC printing, CCD on-line inspection, precise positioning detection of soldering automation equipment, laser plus(laser cutting/laser marking/laser engraving/laser drilling,etc.) precision assembly, precision machine tools, semiconductor production equipment, location detection, electronic production equipment , and 3D printing equipment and other fields.
Our Service
1. Our products use high-quality materials and adopt mature processing methods.
2. The products of each series are very rich. If you don't see them on the page, please contact customer service.
3. Our products provides 1 year warranty.
4. We can accept customized processing only if you provide drawings.
5. Our quotation is ex-factory unit price. Freight needs to be borne by you. Please consult the freight.
6. Under normal circumstances, the goods will be delivered within 20 days.
7. Our company always listens to your suggestions, if your opinions are favorable.
Our Company & Team
Tiayo is a China-based company specializingin the R&D, production, marketing, project consultancy of linear module in the automation industry, which was established since 2007. We are located in changsha city, with convenient transportation access. Our product series include but not limited to ball screw driven linear module,belt driven linear module, linear motor, XY stage, XYZ stage and so on. All of them comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our Factory
Quality control from material source and we accept OEM service. if you want to customize product, contact us freely and send me your requirement. We will customize for you.
Our Exhibition
Tiayo aims to be linear transmission,pneumatic components & vacuum components provider,meanwile we are a linear module manufacturer. We hope to provide a full solution for automation industry to make powerful future.
FAQ:
1. Why choose us?
a: With background over10years
b.Strict Inspection ,and the best quality price with reasonable price bearings provided .
c.OEM service provided.
d. Delivery products from our factory warehouse , delivery time is short .
e. After sale service at any time .
2. Should I worry about the quality?
We import ISO9001 quality management processes,with 3D testing equipments to make sure accuracy.We also cooperate with Japanese company building up a strict quality control system.All our modules were 100% inspected before leaving factory.
3. How do I pay?
My friend, there are many ways. T/T(we prefer this one), Western Union, L/C, choose your favorite one.
4. How's after-sale service?
If, unfortunatly, you received defective goods, dont worry, contact me freely. Believe us, it will be a happy ending.We have a perfect after-sale system.
TIAYO TMH Series
TMH14linear module, two guides and two sliders, with high precision, multi-segment repeat positioning, compact structure, strong versatility.
Maximum stroke: 1050mm
Repeat accuracy: +-0.01mm
Easy maintenance
Long stoke without reducing speed
High rigidity mainframe and cover: one pieceestruded aluminum structure for optimal rigidity and weight ratio.
Range of application:
It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dustfree workshops or special fields such as electronics and medical equipment, such as film, Depreciation, IC printing, CCD on-line inspection, precise positioning detection of soldering automation equipment, laser plus(laser cutting/laser marking/laser engraving/laser drilling,etc.) precision assembly, precision machine tools, semiconductor production equipment, location detection, electronic production equipment , and 3D printing equipment and other fields.
