Ball Weld Compact Vertical Valve Cladding Systems
1 Set
$68,0001 Set
$45,000Product information
High-quality Ball Weld Compact Vertical Valve Cladding Systems supplied by Faith-Han Intelligent Technology Co., Ltd.. Bulk wholesale pricing ranges from $45,000 to $68,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Wire Dia.:
1.0/1.2mm (1.6mm Optional)
Automatic TIG Hotwire:
1.3kg/H
Dia. Of Turntable:
1200mm
Recommend Gas Flow Rate:
12~20L/Min
Clad Thickness:
1~3mm/Layer, Multilayer Cladding, Standard Clad Th
Package Gross Weight:
2300.000kg
Tungsten Dia.:
3.2mm (4.0mm Optional)
Package Size:
3200.00cm * 2200.00cm * 1300.00cm
Specifications
Wire Dia.:
1.0/1.2mm (1.6mm Optional)
Automatic TIG Hotwire:
1.3kg/H
Dia. Of Turntable:
1200mm
Recommend Gas Flow Rate:
12~20L/Min
Clad Thickness:
1~3mm/Layer, Multilayer Cladding, Standard Clad Th
Package Gross Weight:
2300.000kg
Tungsten Dia.:
3.2mm (4.0mm Optional)
Package Size:
3200.00cm * 2200.00cm * 1300.00cm
Specification:
3700*1700*4000mm
Equipment Dimension:
3700mmx1700mmx4000mm
Loading Bearing:
5 Metric Tons
Displayer:
5.7 Inch Screen Chinese/English Displayer
HS Code:
8518809090
Welding Process:
Automatic TIG Hotwire
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Overlay Processing:
Dia.:ID30 (After Cladding) -ID1500mm
Hot Wire Source:
Ewm 200 Hot Wire
Power Source:
Ewm Ethernet/IP Tetrix 452
Model NO.:
FIT-VCS-IV-E-5-1200
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Fitco
Work Form:
Gtaw Hot Wire Cladding
Arc Starting:
Hf/Contact
Frequency Range:
High Frequency
Electric Current:
Inverter
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Max Height For Vertical Overlay:
Less Than 1500mm
Transport Package:
Plywood Case
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Origin:
Suzhou, China
Type:
TIG Welder
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-06-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
385
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
Engineered for the oil & gas, chemical, valve, pressure vessel, and related sectors, this vertical compact cladding system handles diverse product geometries. It enables accurate joining of materials that resist corrosion and abrasion.
This unit features a sleek, space-efficient form factor with robust performance. It includes essential capabilities like internal, external, and flat surface welding, plus advanced optional features such as 90-degree intersecting dual-hole cladding, automatic welding at multi-bore intersections, integrated workpiece preheating, and cooling mechanisms. Detailed feature specifications are available in the commercial agreement.
Technical Parameter
| 1 | Type of Power Source | DC Type Inverter |
| 2 | Welder Current Duty Circle (40ºC) |
5~450A 450A 80%; 420A 100A |
| 3 | Hot Wre Current Duty Cycle (40ºC) |
5~200A 200A 60%; 100A 100% |
| 4 | Open Circuit Voltage | 80V |
| 5 | Input Voltage | 3×400V (-25%+20%) 50/60Hz |
| 6 | Input Power | 35KVA |
| 7 | AVC Accuracy | ±0.2V |
| 8 | Recommend Peak Current | 150~280A |
| 1 | Welding Process | Automatic TIG Hot Wire |
| 2 | Inverter Cooling | Air cooling |
| 3 | Displayer | 5.7"screen Chinese/English displayer Real-time parameter displayer |
| 4 | Fault Detect | Tool shorting, thermal overload safeguard, current overload safeguard, voltage overload safeguard, water supply deficiency alert, gas absence warning, power malfunction, arc malfunction, servo malfunction. |
| 5 | Torch Cooling | External Constant Temperature Circulating Water Cooling |
| 6 | Overlay Processing | Dia.: φ30 (after cladding) - φ1500mm Max height for vertical overlay: ≤1500mm Loading bearing 5 tons Dia. of turntable 1200mm. |
| 7 | Single Layer Thickness | 1-3mm |
| 8 | Tungsten Dia. | 3.2mm (4.0mm optional) |
| 9 | Wire Dia. | 1.0/1.2mm (1.6mm Optional) |
| 10 | Recommend Gas Flow RatE | 12~20L/min |
| 11 | ARC Starting | HF/Contact |
| 12 | Insulation Safety Level /Standard | H/IP70 |
| 13 | Equipment Diamension | 3700 x 1700 x 4000mm |
Application Products
Pipe rings, Fittings, Flanges, LR bends, Valve Bodies, Valve Balls, Risers, Well head block tree valves, Pressure Vessel Components, Nozzle, Dished ends, etc.
 |
 |
 |
 |
 |
 |
 |
 |
 |
Vertical cladding systems.
Weld Overlay for Valves, Flanges and Plates

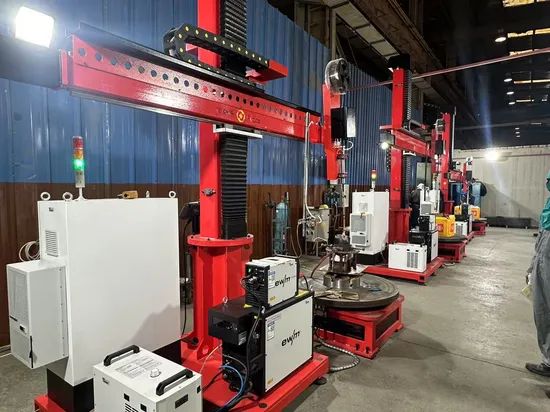

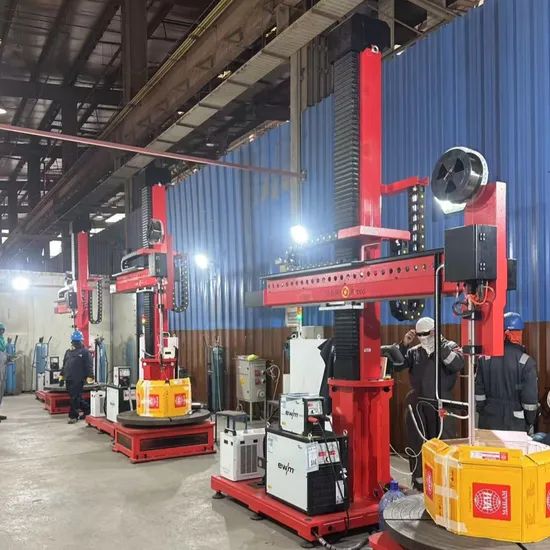

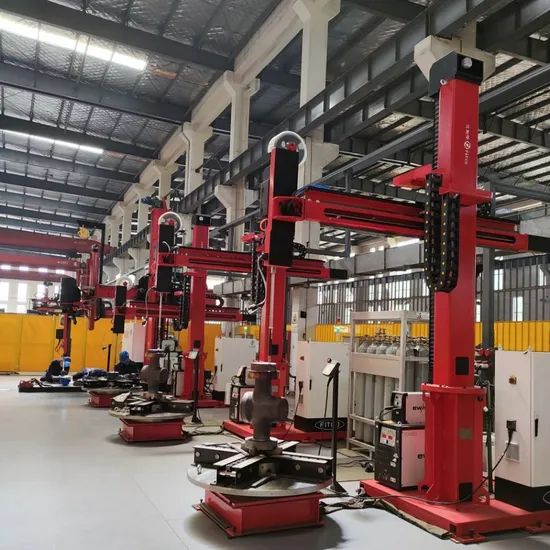

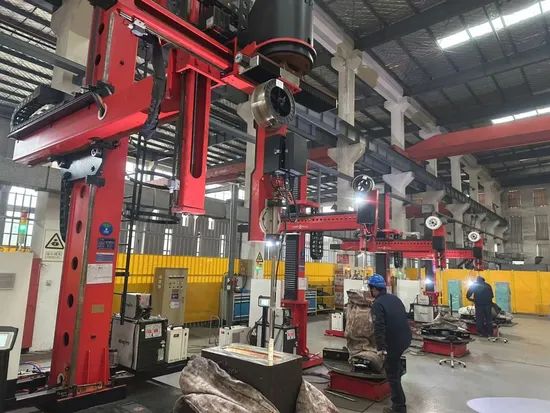

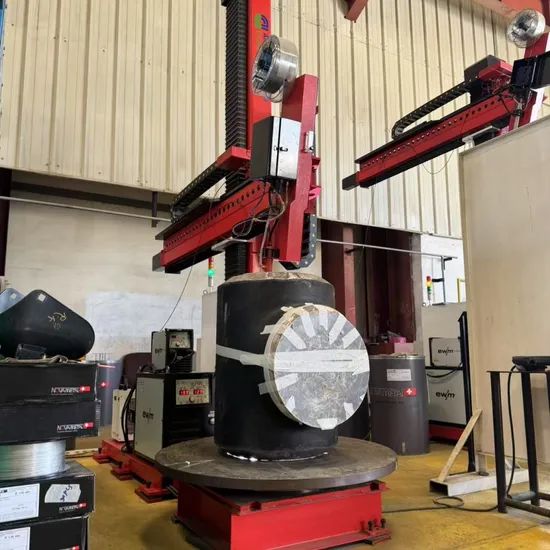

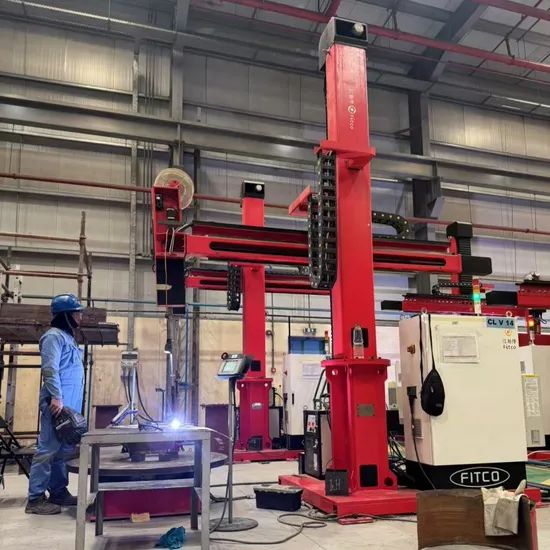

Our vertical cladding systems feature a Column & Boom Manipulator paired with a Floor Turntable. A second turntable or welding positioner can be included to boost efficiency. The Floor Turntable/Positioner includes a preheat function and is equipped with an anti-backlash gearbox.
Advantages:
Fitco was born and developed within actual production facilities where our machinery is actively used, giving us deep insight into product demands, operational workflows, and operator experiences—something no other manufacturer can match. As the flagship facility of China’s largest and globally top-tier welding solutions producer, Fitco delivers equipment that performs reliably and with advanced intelligence, earning strong trust from customers. By integrating the most advanced programmable logic control systems and sophisticated mathematical algorithms, we engineer smarter, more responsive devices.
Our Company--Faith-Han Intelligent Technology Co., Ltd.
Founded and registered in 2018, Fitco is located in Kunshan High-tech District, between Shanghai and Suzhou.
Fitco specializes in developing and producing tailor-made, intelligent automation systems for industrial welding, accompanying software, support machinery, and related solutions.
Fitco has engineered and produced over 150 welding systems for both Chinese and global clients. These units deliver consistent performance and advanced automation, validated through long-term field operations and recognized by international users. By integrating sophisticated mathematical algorithms into our software, our machines outperform those of rival brands in smart functionality. Sustainable practices and user safety are central to every phase of our mechanical and electrical development.
