Bank ATM POS Thermal Paper Roll Slitting and Rewinding Machine
Piece
Negotiable
Product information
High-quality Bank ATM POS Thermal Paper Roll Slitting and Rewinding Machine supplied by Hangzhou Ecoographix Digital Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Max. Unwinding Width:
1400mm
Machine Speed:
210m/Min
Min. Slitting Width:
25m
Trademark:
3100*2100*1900mm
Production Capacity:
800 PCS Per Year
HS Code:
844110
Origin:
China
Computerized:
Computerized
Specifications
Max. Unwinding Width:
1400mm
Machine Speed:
210m/Min
Min. Slitting Width:
25m
Trademark:
3100*2100*1900mm
Production Capacity:
800 PCS Per Year
HS Code:
844110
Origin:
China
Computerized:
Computerized
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP, CIP
Driven Type:
Hydraulic
Type:
Industrial Cutter
Payment Term:
LC, T/T, PayPal, Western Union
Classification:
Multiple Knife Cutter
Port Of Loading:
Shanghai
Blade Material:
Stainless Steel
Model NO.:
T1400C
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-02-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP, CIP
Port Of Loading:
Shanghai
Certificates:
Atestation of compliance, Audited supplier by BV, brand certificate, CE certificate, Nova certificate, SGS certificate
Product descriptions from the supplier
Bank ATM POS Thermal Paper Roll Slitting and Rewinding Machine

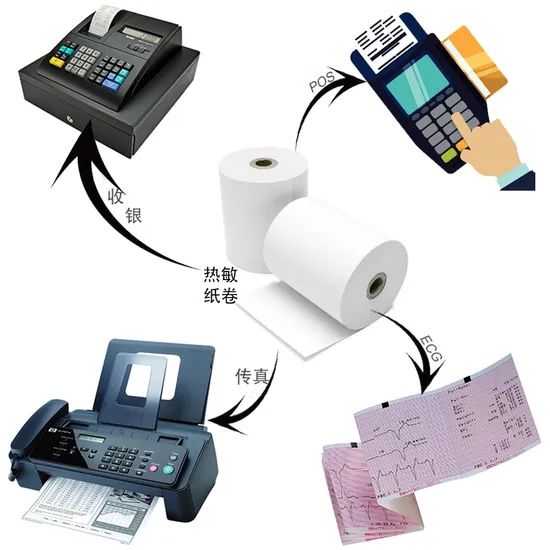

EcooGraphixT-1400C is used for making all kinds of thermal paper rolls, including fax paper roll, ECG paper roll, medical record paper roll, POS roll, ATM roll, cash register paper roll, etc.
Features
1.SIEMENS PLC control system and touch screen, all the parameters are displayed on the monitor. Just setup the roll diameter, material thickness, initial tension, the machine runs automatically.
2.Shaftless hydraulic loading system, Max. load capacity is 3 tons.
3.20Kg/m2 electromagnetic brake for unwinding tension control.
4.CNC processed & heat-treatment foothold wall panel, no deformation.
5.Unwinding section equips with direction adjustable balancing roller, ensures roller itself keeping tight touch with whole web.
6.Dynamic / static balancing transmission rollers.
7.The upper circular knives are fixed by screws, and the lower circular knives are fixed by aluminum spacer, cutting precision could be guaranteed.
8.Automatic tucker tucks the tail, convenient for quickly trigger rewinding.
9.Load cell sensor & automatic tension controller ensures constant tension.
10.Automatic meter counter, when reaches preset length, machine stops automatically.
11.Overlapping problem could be avoided with banana roller.
12.Equipped with emergency switch.
13.CCD digital camera sensor or photocell for web guiding.
Main Technical data
| Model Type | Ecoo-1400C |
| Max. Unwinding Width | 1400mm |
| Max. Unwinding Diameter | 1200mm |
| Max. Rewinding Diameter | 310mm |
| Min. Slitting Width | 25mm |
| Max. Machine Speed | 210 m/min |
| Main Power | 3.7Kw |
| Total Power | 6kw |
| Unwinding Shaft | Hydraulic Shaftless Unwinder to fix 3'' 6'' core |
| Rewinding Shaft | 0.5'', 1'' or as your request |
| Weight | 4000 kgs |
| Overall Dimension | 3100*2100*1900mm |
| Application Material |
|
| Unwinding Section |
|
| Slitting Section |
|
| Rewinding Section |
|
| Controlling Section |
|
| Trimmed Waste |
|
| Optional |
|
Application Material
All kinds of thermal paper, including fax paper, cash register paper, ATM paper, medical record paper, self-adhesive trademarks, films and so on.
Unwinding Section

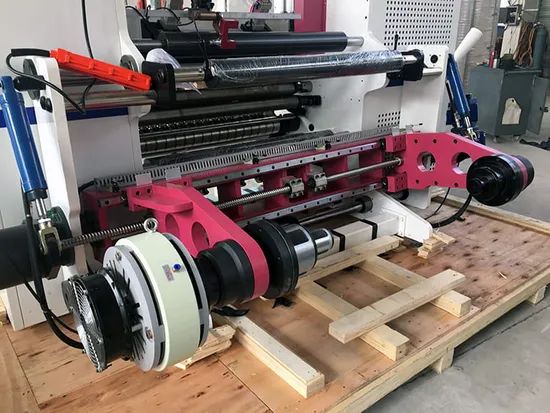

Hydraulic Shaftless Unwinder to fix 3'' 6'' core which is easier to loading material
Electromagnetic Brake from Taiwan
Fully automatic tension controller
One set of Photocell to tracking the precision
Slitting Section
Disc cutter
Cutter with adjustable and movable blade base.
Meter counter
Banana Roller which can avoid overlapping problem completely.
Rewinding Section
0.5",1" or as your request
Surface Rewinding technology, it adopts vertical method to press the rewinding roll
Electromagnetic Clutch from Taiwan
Surface Rewinding technology
Automatic cutting & gluing unit
Controlling Section
Siemens PLC & HMI from Germany
All the parameters are displayed on the monitor
Low voltage electrical appliances all from Schneider
Trimmed Waste
It adopts air blower to blow waste material off, the air blower power is 0.75kw.
Air blower pipe is more wear-resisting.
Optional
Safety guard for the slitting device.
Emergency Switches on the 4 corners of machine.
