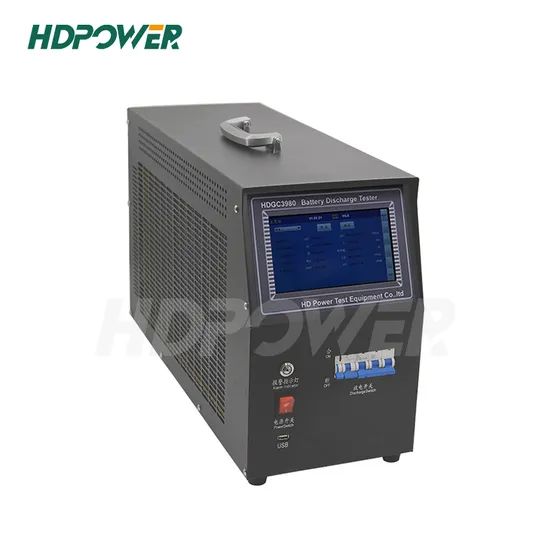

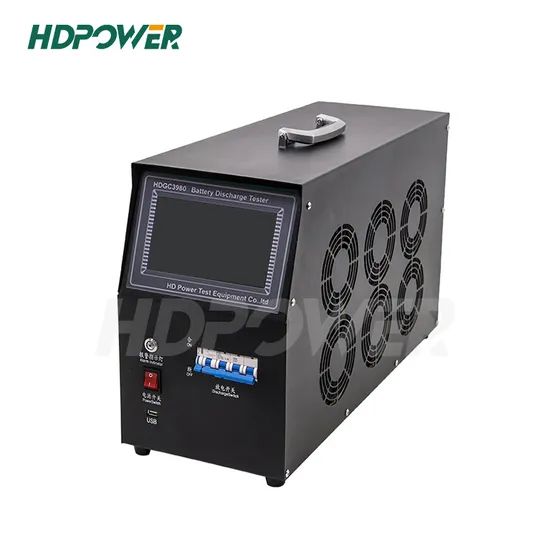

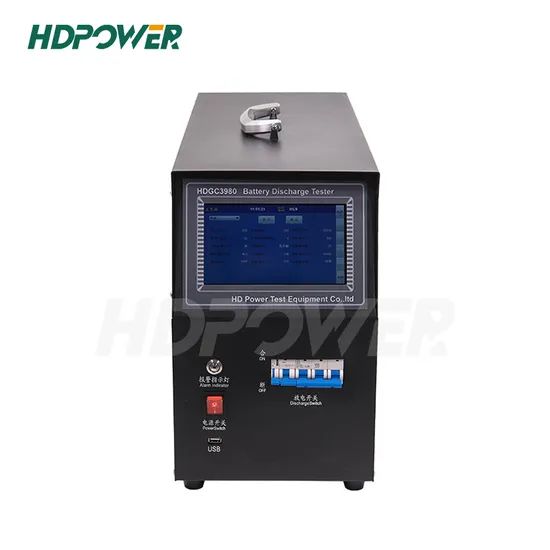

Battery Discharge Test Storage Capacity Tester Battery Discharging Diagnostic Device for Lead Acid Batteries
1 Piece
$6,0001 Piece
$1,000Product information
High-quality Battery Discharge Test Storage Capacity Tester Battery Discharging Diagnostic Device for Lead Acid Batteries supplied by HD Power Test Equipment Co., Ltd.. Bulk wholesale pricing ranges from $1,000 to $6,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Discharge Current:
0~40A
Production Capacity:
800/Month
HS Code:
9030899090
Test Region:
Charge and Discharge
Safety:
Compliance with En610950
Customized:
Customized
Discharge Voltage:
DC 380-600V
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP
Specifications
Discharge Current:
0~40A
Production Capacity:
800/Month
HS Code:
9030899090
Test Region:
Charge and Discharge
Safety:
Compliance with En610950
Customized:
Customized
Discharge Voltage:
DC 380-600V
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP
Trademark:
HD Power
Model NO.:
HDFD-4804
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Application:
Lead-acid Battery
Origin:
Made in China
PC Communication:
RS485 Interface, USB Interface
Port Of Loading:
Shanghai, Shenzhen, Guangzhou
Type:
Storage Battery Tester
Transport Package:
Wooden Box with Foam Inside
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-02-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP
Port Of Loading:
Shanghai, Shenzhen, Guangzhou
Certificates:
Certificate of Occupational Health and Safe Manage System, Copyright of Battery Discharge Monitor Tester, Copyright of Battery On-line Monitor Tester, Copyright of Cell Montoring System, Environment Management System Certification ISO14001, Patent Right of AC Resonant Test System, Patent Right of Battery Discharge Tester, Patent Right of Battery Load Unit, Quality Management System Certification
Product descriptions from the supplier
HDFD-4804Battery Discharge Testerfor 480V Battery Group
General information
HDFD-4803Battery Discharge Tester can be used as the discharge load in the battery off-line state to realize the constant discharge at the set value by regulating continuously the discharge current. When discharging, the tester will automatically stop discharging when the voltage on the battery group terminal or the cell falls to the set lower limit value, or when the set discharging time is out, or when it reaches the set discharging capacity. Battery Discharge Tester can records all valuable and continuous real-time data during the discharge process.
Features
1.PTC ceramic resistor is adopted to avoid the red heat phenomenon for a safer discharge process.
2.Cell monitoring module is performed the voltage commission by remote radio wireless communication mode, it can set up to four unique frequency brands.
3.Wireless acquisition box can monitor each cell for monitoring the whole process of battery series. There are three data monitoring methods.
4.Each tester can monitor 25 cell monitoring mode , every cell monitoring mode can connect 12 battery ,monitoring in total of 300 battery.
5.Cell voltage value can be displayed by sliding table and sliding bar chart and searched by two data .
6.Connected with USB interface,the data of the discharge process can be record to U disk and transformed to PC by U disk . PC data manage software can analyze the discharge process and generate the corresponding data for more convenient storage .
7.Intelligent SCM ARM control, 7inch 1024*600 LCD screen , capacitive touch operation, built in English menu, simple and clear operation menu.
8.Automatic self-protection stop function,over-heat protection,over voltage protection,over current protection and reverse connection protection,alarm prompt is displayed on the screen once it appears any issue, air circuit breaker automatically cut off.
9.It can perform on-line compensated charge/discharge, and can also carry on discharge test for on-line working storage battery by connection external current clamp sensor,which is convenient for measurement work.
10. RS485 remote control charge , discharge and activation functions .
11. It has the function of charge, discharge and activation with muti machine parallel mode by only operating in the display screen of the parallel instrument with parameters as the master.
Technical Parameter
General information
HDFD-4803Battery Discharge Tester can be used as the discharge load in the battery off-line state to realize the constant discharge at the set value by regulating continuously the discharge current. When discharging, the tester will automatically stop discharging when the voltage on the battery group terminal or the cell falls to the set lower limit value, or when the set discharging time is out, or when it reaches the set discharging capacity. Battery Discharge Tester can records all valuable and continuous real-time data during the discharge process.
Features
1.PTC ceramic resistor is adopted to avoid the red heat phenomenon for a safer discharge process.
2.Cell monitoring module is performed the voltage commission by remote radio wireless communication mode, it can set up to four unique frequency brands.
3.Wireless acquisition box can monitor each cell for monitoring the whole process of battery series. There are three data monitoring methods.
4.Each tester can monitor 25 cell monitoring mode , every cell monitoring mode can connect 12 battery ,monitoring in total of 300 battery.
5.Cell voltage value can be displayed by sliding table and sliding bar chart and searched by two data .
6.Connected with USB interface,the data of the discharge process can be record to U disk and transformed to PC by U disk . PC data manage software can analyze the discharge process and generate the corresponding data for more convenient storage .
7.Intelligent SCM ARM control, 7inch 1024*600 LCD screen , capacitive touch operation, built in English menu, simple and clear operation menu.
8.Automatic self-protection stop function,over-heat protection,over voltage protection,over current protection and reverse connection protection,alarm prompt is displayed on the screen once it appears any issue, air circuit breaker automatically cut off.
9.It can perform on-line compensated charge/discharge, and can also carry on discharge test for on-line working storage battery by connection external current clamp sensor,which is convenient for measurement work.
10. RS485 remote control charge , discharge and activation functions .
11. It has the function of charge, discharge and activation with muti machine parallel mode by only operating in the display screen of the parallel instrument with parameters as the master.
Technical Parameter
| Suitable Battery | DC 480V Battery Pack |
| Model No. | HDFD-4804 |
| Discharge current | 0~40A |
| Discharge Voltage | DC 380-600V |
| Working mode | Single main unit, parallel master mode, parallel slave mode, and remote controlled mode |
| Protection performance | Over-voltage protection, under-voltage stop, over-current protection, reverse wiring protection, 65ºCover-temperature protection, LCD prompt and buzzer alarm |
| Cell voltage collection (optional) | Multi-band RF wireless module for communication distance of more than 100m, compatible with 2V/4V/6V/12V cellmonitor module, 1-25 groups of RF wireless monitoring modules up to 300 batteries, and single wireless monitoring module for monitoring 12 cells |
| Control precision | Discharge current≤±1%; group voltage≤±0.1%; cell voltage≤±0.5% |
| PC communication | RS485 interface, USB interface |
| Work Environment | |
| Heat radiation | Forced air cooling |
| Temperature | Working rage: -5-50ºCStorage temperature: -40-70ºC |
| Humidity | Relative humidity 0-90% (40±2ºC) |
| Elevation | Below4,000m |
| Noise | <75dB |
| Working Power Supply | |
| Voltage | Power supply: single-phase AC220V (-20%-+30%), frequency: 45-65Hz; |
| Electric strength test | Input-shell: 2200Vdc 1min Input-output: 2200Vdc 1min Output-shell: 700Vdc 1min |
| Safety | Compliance with EN610950 |
