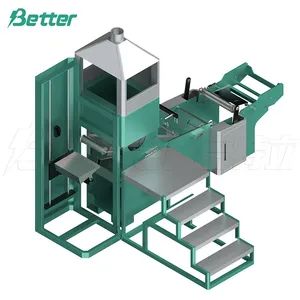

Battery Grid Casting Machine for Lead Acid Battery
Piece
Negotiable
Product information
High-quality Battery Grid Casting Machine for Lead Acid Battery supplied by Better Technology Group Limited. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Machining Tolerance:
+/-0.10mm
Power Of Lead Scrap Motor:
0.4kw
Compressed Air Pressure:
0.4~0.6MPa
Lead Furnace Capacity:
0.9t
Motor:
1.5kw
Mould:
1.6kw*2 Sets = 3.2kw
Weight:
1.85t
Capacity:
12-17 Panels/Min
Specifications
Machining Tolerance:
+/-0.10mm
Power Of Lead Scrap Motor:
0.4kw
Compressed Air Pressure:
0.4~0.6MPa
Lead Furnace Capacity:
0.9t
Motor:
1.5kw
Mould:
1.6kw*2 Sets = 3.2kw
Weight:
1.85t
Capacity:
12-17 Panels/Min
Power Supply:
380V +/- 10%
Specification:
4600mm*1200mm*3150mm
Cooling Water Volume:
5-6 M3
Total Power:
9.7kw
Lead Ladle:
900W*4 Set= 3.6kw
Model NO.:
BETTER
Trademark:
Better
Origin:
China
Surface Treatment:
Customized
Surface Roughness:
Customized
Trade Term:
FOB, EXW, CFR, CIF
Certification:
ISO 9001:2008
Payment Term:
LC, T/T, Western Union
Casting Metal:
Lead Alloy
Air Exhaust Amount:
Not Less Than 0.3m3/Min
Transport Package:
Over Sea Export Standard
Cooling Water:
Pipe Diameter:15mm and Outlet Pipe:25mm
Casting Form Usage Count:
Semi-permanent
Grid Range:
W*L*T=(100~180)*(250~385)*(1~5)mm
Port Of Loading:
shanghai
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-08-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
shanghai
Certificates:
Honor and Qualification, Technical Strength
Product descriptions from the supplier

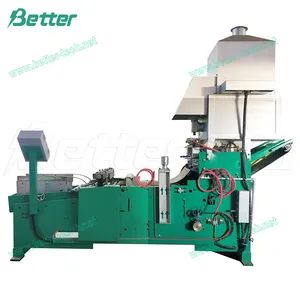

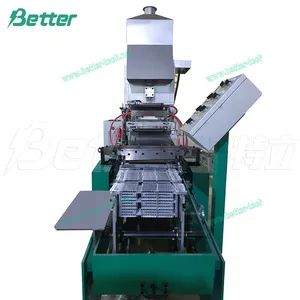

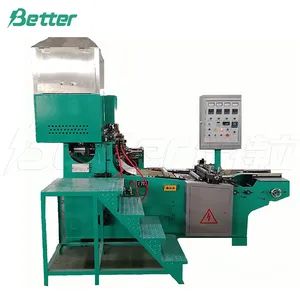

High Furnace Grid Casting Machine
(Natural Gas Heating)
(Natural Gas Heating)
This grid casting system handles various lead alloys efficiently, offering high output and consistent product standards. Equipped with cutting-edge technology and ongoing improvements, it reduces energy consumption and simplifies operation and upkeep.
The primary motor uses a foreign-made inverter for smooth, uninterrupted speed control with continuous frequency adjustment. Mold opening and closing, along with the lead liquid delivery, feature high-grade pneumatic components.
The lead supply system features precise volume regulation. Design is straightforward. The lead valve spool withstands elevated temperatures and offers prolonged operational durability, making it simple to replace.
The horizontal pull rod design ensures smooth machine operation and minimizes vibration, thereby decreasing the need for manual mold spraying and boosting output efficiency.
4. Lead scrap recycling device can be optional, which can lower the labor strength.
Specification:
| Mould | 1.6KW*2 sets=3.2kw |
| Power for lead scrap motor | 0.4kw |
| Total Power | 9.7KW |
| Grid Range | W*L*T=(100~180)*(250~385)*(1~5)mm |
| Power Supply | 380V±10% |
| Cooling Water | Pipe Diameter: 15mm and outlet pipe: 25mm |
| Compressed air pressure | 0.4~0.6Mpa |
| Weight | 1.85T |
| Lead Ladle | 900W*4 sets=3.6KW |
| Motor | 1.5KW |
| Lead furnace capacity | 0.9T |
| Air exhaust amount | Not less than 0.3m³/min |
| Cooling water volume | 5~6 m3 |
| Production Capacity | 12~17 panels/min |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
