Bc6066 Jointer Planer Machine for Metal Shaping
1 Piece
$4,8001 Piece
$5,200Product information
High-quality Bc6066 Jointer Planer Machine for Metal Shaping supplied by Shandong Jorsen Machinery Co., Ltd.. Bulk wholesale pricing ranges from $4,800 to $5,200 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Feeding Range Of Vertical Travel:
0.08~1.00 (12 Steps)
Feeding Range Of Level Travel:
0.4~5 (12 Steps)
Production Capacity:
1000 Pieces/Year
Travel Of Tool Head:
120
T Slots Width:
18
Package Gross Weight:
1920.000kg
Weight:
1920kg
Package Size:
200.00cm * 130.00cm * 165.00cm
Specifications
Feeding Range Of Vertical Travel:
0.08~1.00 (12 Steps)
Feeding Range Of Level Travel:
0.4~5 (12 Steps)
Production Capacity:
1000 Pieces/Year
Travel Of Tool Head:
120
T Slots Width:
18
Package Gross Weight:
1920.000kg
Weight:
1920kg
Package Size:
200.00cm * 130.00cm * 165.00cm
Specification:
2357*1225*1480
Worktable Vertical Movement:
360
Worktable Horizontal Movement:
385
Motor Power:
3kw
RAM Bottom To Table Surface:
630
Shaping Length:
660
Table Size:
660*400
HS Code:
8461201000
Controlling Mode:
Artificial
Model NO.:
BC6066
Certification:
CE, ISO 9001, EAC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Power Source:
Electric
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP, FCA
Precision:
High Precision
Trademark:
JORSEN
Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Automatic Grade:
Manual
Name:
Metal Planer, Shaper Machine
Condition:
New
Transport Package:
Plywood Case
Port Of Loading:
Qingdao, Ningbo, Tianjin
Shaping Machine Type:
Small Type
Payment Methods:
Support payments in USD
Customization:
Table, Voltage, Power, Color, Logo
Application:
Ultra-Precision Machining of Optical and Semicondu
Tool Carrier Rotary Angle:
±60°
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-03-08
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP, FCA
Port Of Loading:
Qingdao, Ningbo, Tianjin
Certificates:
CE
Product descriptions from the supplier
Technical Specifications
Specifications | Units | BC6063/BC6066 | |
Maximum shaping length | mm | 630/660 | |
Max.range of the horizontal movement of the table | mm | 385 | |
Max.distance between he ram bottom and table | mm | 630 | |
Max.length of the vertical movement of table | mm | 360 | |
Dimension of table top(L*W) | mm | 630X400/660X400 | |
Travel of tool head | mm | 120 | |
Number of ram strokes per minute | Times min | 14,20,28,40,56,80 | |
Swivel of tool head | ° | ±60 | |
Maximum size of tool shank(W*T) | mm | 20X30 | |
Range of table feed | Horizontal 12 steps | mm | 0.4-5 |
Vertical 12 steps | mm | 0.08-1.00 | |
Width of the T-slot for center positioning | mm | 18 | |
Main motor power | KW | 3 | |
Overall dimension(L*W*H) | mm | 2000X1300X1550/2357X1225X1480 | |
N.w./G.W | kg | 1750/1870 1800/1920 | |
Key Features:
The shaper's table swings left and right with both horizontal and vertical adjustments, enabling bevel planing and broadening its usability.
2. The shaper's feed system utilizes a cam mechanism, allowing for convenient feed adjustment and tool change.
The shaper's tool switching mechanism includes a safety feature that activates under overload conditions. Should the tool experience excessive force from operator error or outside factors, the tool changer will disengage, protecting the workpiece and maintaining uninterrupted machine function.
A lubricating oil pump transfers oil from the ram to the bed rails, and also between the speed-control gear set and the primary guide ways.
5. The shaper is equipped with a parking brake to facilitate speed changes. The power supply cannot be disconnected during machine startup or shutdown.
Details

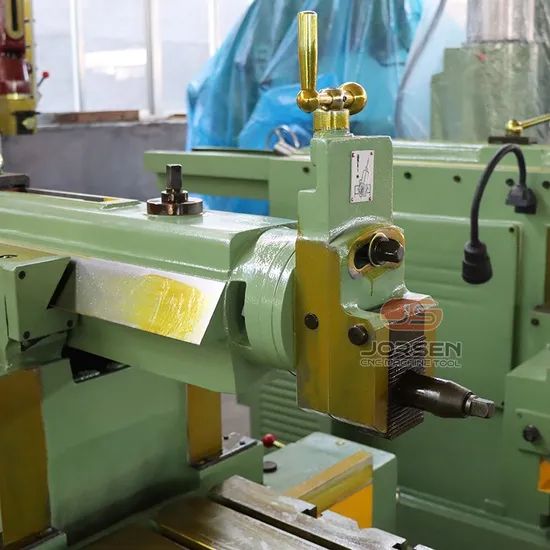

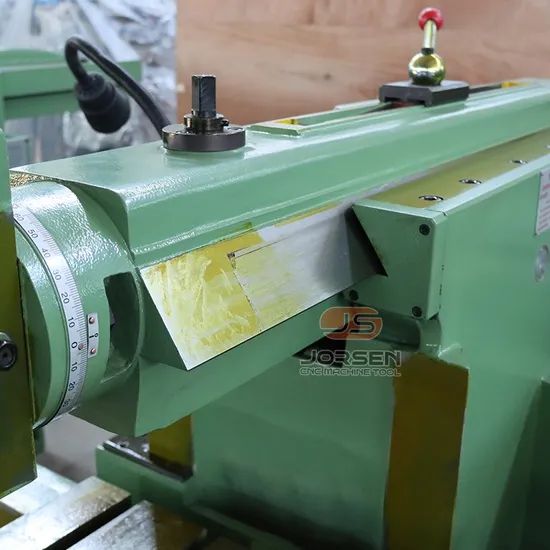

RAM AND TOOL CARRIER
WORKTABLE
1. Ram and tool carrier reciprocate in horizontal plane
2. Tool carrier rotates ± 60°
Wortable can auto feed and rapid traverse in vertical and horizontal direction
TABLE AUTO FEED DIRECTION

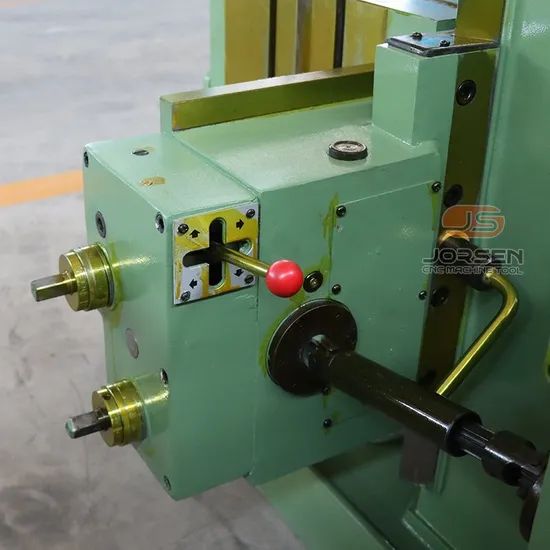

AUTO FEED BOX

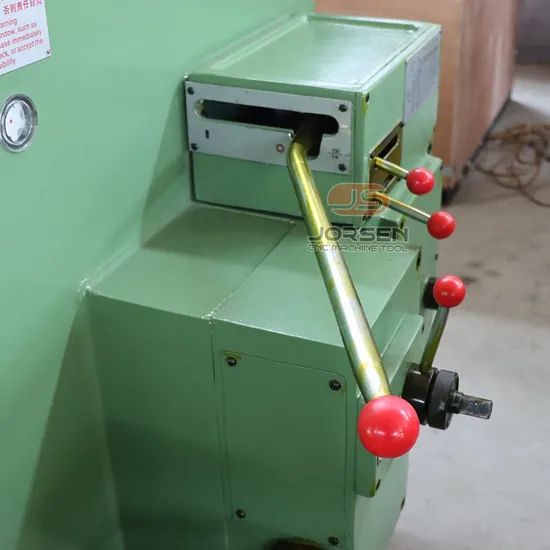

This handle can adjust the table auto feed up/down/left/right
Automatic feed can be adjusted by this handle
ADJUST RAM SPEED
ELECTRICAL BOX
Ram can be adjusted at higher/lower speed by these handles
Electrical appliances are imported brands, longer service life
Company Profile
Shandong Jorsen Machinery Co., Ltd. has :
1. 20+ years CNC machine manufacture experience factory.
2. More than 60,000m² of the factory with more than 200 workers.
3. Strict QC control with more than 24 steps testing processes.
4. Trade with customers in more than 150 countries around the world.
5. Cooperate with the famous brand, such as FANUC, SIEMENS, SYNTEC, etc.
6. 24 hours online service at any time.
7. Support ODM & OEM.
2. More than 60,000m² of the factory with more than 200 workers.
3. Strict QC control with more than 24 steps testing processes.
4. Trade with customers in more than 150 countries around the world.
5. Cooperate with the famous brand, such as FANUC, SIEMENS, SYNTEC, etc.
6. 24 hours online service at any time.
7. Support ODM & OEM.
Packaging & Shipping
After Sales Service
We provide the following after-sales services
1. The standard warranty period is 18 months. Some models can be extended to more than 24 months.
2. Technical support by phone, e-mail, whatsapp and skype. If you have any problems, we will solve it within 12 hours.
3. You will be get free training advice towards our machine in our factory.
4. If you need any component of the machine, we will provide the best price for you.
2. Technical support by phone, e-mail, whatsapp and skype. If you have any problems, we will solve it within 12 hours.
3. You will be get free training advice towards our machine in our factory.
4. If you need any component of the machine, we will provide the best price for you.
FAQ
1: How can I choose the most suitable machines ?
Let us know your requirements, and we’ll recommend the ideal machine for your needs—or you can pick the specific one you’d like. Additionally, if you share the product design, we’ll match it with the most fitting equipment.
2: What's your main products of your company ?
A: We focus on a wide range of machinery including CNC Lathe, CNC Milling, Vertical Machining Center, Lathe, Drilling, Radial Drilling, Sawing, Shaping equipment, and more.
3: Where is our factory located? How can I visit there ?
A: Our factory is located in Tengzhou City, Shandong Province, 277500 China. You are warmly welcomed to visit us.
4: What is your trade terms ?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight.
6: What's the MOQ ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Let us know your requirements, and we’ll recommend the ideal machine for your needs—or you can pick the specific one you’d like. Additionally, if you share the product design, we’ll match it with the most fitting equipment.
2: What's your main products of your company ?
A: We focus on a wide range of machinery including CNC Lathe, CNC Milling, Vertical Machining Center, Lathe, Drilling, Radial Drilling, Sawing, Shaping equipment, and more.
3: Where is our factory located? How can I visit there ?
A: Our factory is located in Tengzhou City, Shandong Province, 277500 China. You are warmly welcomed to visit us.
4: What is your trade terms ?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight.
6: What's the MOQ ?
A: 1 set .(Only some low cost machines will be more than 1 set )
