Bc6066 Planner Horizontal Mechanical Metal Shaping Shaper Machine
1 Piece
$3,0001 Piece
$5,300Product information
High-quality Bc6066 Planner Horizontal Mechanical Metal Shaping Shaper Machine supplied by Shandong Schuler CNC Machinery Co., Ltd.. Bulk wholesale pricing ranges from $3,000 to $5,300 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Maximum Tool Carrier Travel:
120mm
Production Capacity:
2000 Piece/Year
Dimension Of Table Top:
360mm
Main Motor Power:
3kw
Table Size:
660X400mm
Maximum Shaping Length:
660mm
HS Code:
8461201000
Model NO.:
BC6066
Specifications
Maximum Tool Carrier Travel:
120mm
Production Capacity:
2000 Piece/Year
Dimension Of Table Top:
360mm
Main Motor Power:
3kw
Table Size:
660X400mm
Maximum Shaping Length:
660mm
HS Code:
8461201000
Model NO.:
BC6066
Specification:
Bc6060
Origin:
China
Power Source:
Electric
Trade Term:
FOB
Certification:
GS, CE, RoHS, ISO 9001, SGS
Precision:
High Precision
Automatic Grade:
Manual
Condition:
New
Transport Package:
Plywood
Trademark:
Schuler
Shaping Machine Type:
Small Type
Payment Term:
To be discussed
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
Certificates, CNC Lathe CE, cnc machining center CE, Drilling Machine CE, Miilling Machine CE, Occupational Health Management Certificate, Quality Management Witness System Certificate
Product descriptions from the supplier
BC6066 Planner Horizontal Mechanical Metal Shaping Shaper Machine

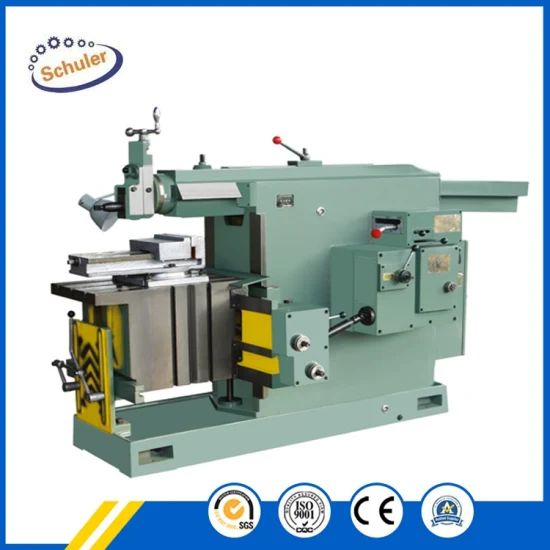

Product picture:
Metal Shaping Shaper Machine (BC6066) Applications:
1. Optimized principle design, machine appearance, easy to operate.
2. Vertical, horizontal guide surface with rectangular guide, better stability.
3. The use of advanced ultra-audio quenching process, so that the machine life longer.
4. Suitable for planing various small and medium parts of the plane, T-slot and molding surface, can be used for single and batch production.
Metal Shaping Shaper Machine (BC6066) Technical Parameters:
|
Model |
BC6063 |
B6066 |
|
|
Max Shaping Length (mm) |
630 |
660 |
|
|
The Max. Distance of Ram Bottom to Worktable Plane (mm) |
385 |
385 |
|
|
The Max. Horizontal Movement of Worktable (mm) |
630 |
630 |
|
|
The Max. Vertical Movement of Worktable (mm) |
360 |
360 |
|
|
Worktable Size(L*W)(mm) |
630×400 |
660x400 |
|
|
Tool Post Travel (mm) |
120 |
120 |
|
|
Ram Strokes per Minute |
14,20,28,40,56,80 |
14,20,28,40,56,80 |
|
|
Mechanical Feeding Range of Worktable |
Horizontal Feeding(mm) |
0.2~2.5 (12 steps) |
0.2-2.5(12 steps) |
|
Vertical Feeding(mm) |
0.08~1.00(12 steps) |
0.08-1.00(12 steps) |
|
|
Worktable fast moving speed |
Horizontal feeding (m/min) |
- |
- |
|
Vertical feeding (m/min) |
- |
- |
|
|
Size of Worktable Central T-slot (mm) |
18 |
18 |
|
|
Main Motor (kw) |
3 |
3 |
|
|
Overall Size(LxWxH)(mm) |
2342x1225x1480 |
2357x1225x1480 |
|
|
Weight (kg) |
1750 |
187 |
|

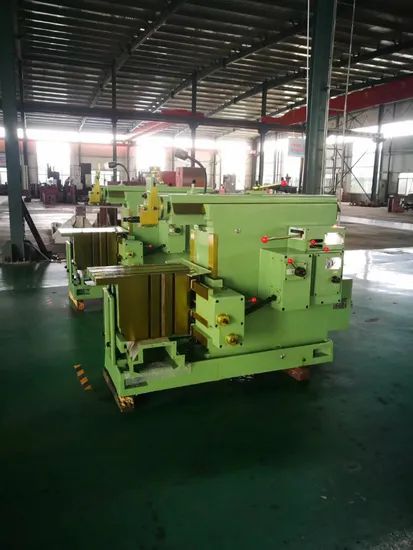

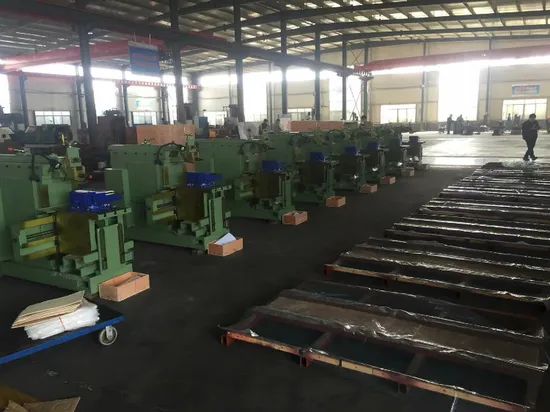

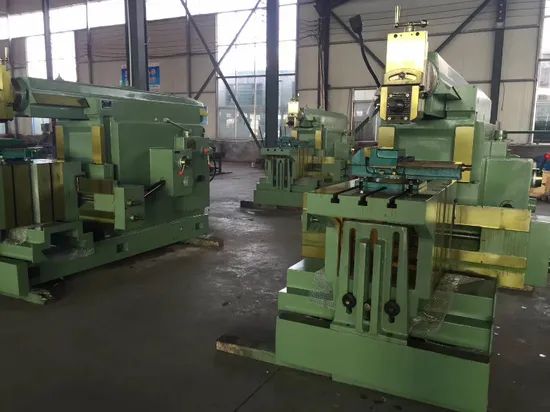

Metal Shaping Shaper Machine (BC6066) In Workshop:
Metal Shaping Shaper Machine (BC6066) Details:
FAQ:
| Is it independent research and development production? |
| Yes! We have a strong technical team and a complete modern production Metal Shaper Machine Price BC6063 B6066, and has a number of patented technology. |
| Whether to provide quality assurance and complete after-sales support? |
| Yes! Our metal forming machine price BC6063 B6066 is guaranteed for 12 months and supports on-site installation if necessary. Commissioning, technical guidance and after-sales maintenance support. |
| Is it possible to deliver in time? |
| Yes! Our manufactory is very high degree of modernization, brand positioning the global market, production capacity is very strong, conventional models try to ensure that the spot. |
| Is the machine voltage adjustable and the pressure is adequate? |
| Yes! The Metal Shaper Machine Price BC6063 B6066 motor uses three-phase power and the voltage is set according to your local voltage. |
| Is it possible to visit your factory? Is the traffic convenient? |
| Yes! Our factory is located in China's Shandong Province, Tengzhou City, Land, sea and air traffic conditions are very convenient. |
