Best Precision Automatic Metal Straightening Machinery for Bolt Screw Screwdriver Rod
1 Piece
$3,0001 Piece
$40,000Product information
High-quality Best Precision Automatic Metal Straightening Machinery for Bolt Screw Screwdriver Rod supplied by YANGZHOU RZF IMP. AND EXP. CO., LTD.. Bulk wholesale pricing ranges from $3,000 to $40,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Thickness Range:
0.5mm to 25mm
Production Capacity:
10000/Year
Roller Diameter:
100mm
Warranty:
12 Months
Maximum Width:
2000mm
Maximum Speed:
30 Meters Per Minute
Voltage:
380V
Power Requirements:
380V, 50Hz, 3-Phase
Specifications
Thickness Range:
0.5mm to 25mm
Production Capacity:
10000/Year
Roller Diameter:
100mm
Warranty:
12 Months
Maximum Width:
2000mm
Maximum Speed:
30 Meters Per Minute
Voltage:
380V
Power Requirements:
380V, 50Hz, 3-Phase
Roller Configuration:
4-High Roller Configuration
Package Size:
400.00cm * 200.00cm * 300.00cm
Machine Weight:
5000kg
Package Gross Weight:
5800.000kg
HS Code:
8462219000
Automatic Grade:
Automatic
Trademark:
BOLI
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Automation Features:
Computer Controls, Sensors, Feedback Systems
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Drive System:
Electric Motor with Variable Speed Control
Safety Features:
Emergency Stop Button, Safety Guards, Interlocking
Transport Package:
Export Package
Trade Term:
FOB, CIF
Roller Material:
Hardened Steel
Certification:
ISO9001, CE
Payment Term:
LC, T/T
Principle:
Large Deformation
Product Name:
Leveling Machine
Origin:
Made in China
Condition:
New
Control System:
PLC (Programmable Logic Controller)
Model NO.:
PLM-022
Material Compatibility:
Steel, Aluminum, Stainless Steel, Plastics, Compos
Payment Methods:
Support payments in USD
Port Of Loading:
shanghai
Leveling Accuracy:
±0.1mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-07-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
shanghai
Certificates:
Company License, MIC-ASR Certification, MICC-10 YEARS, SGS
Product descriptions from the supplier
Leveling Machine
Servo precision Leveler was designed for levelling operation of higher requirement,such as PLM Servo precision leveler which was produced by BOLI TRADE.The leveling rollers were supported with the best way adn the distance among them was small.The integrated levelling gap adjustment device kept hte levelling gap constandjn the whole levelling process.including the change of part cross section.lt also stuied the burning incision parts which can not be levelled easlly.After a few minutes,they can be levelled and nearly have not internal force.
Performance and Charactenstics
Micron grade leveling of clearance adjustment Efficient reversing processing function Overload protection
Quickly adjust sheet thickness
Servo proportion control technology
30 Series Servo Precise Leveling Machine
| Model | Unit | 30-300-21 | 30-500-21 | 30-800-21 | 30-1000-21 |
| Roller diameter | mm | 030 | 4>30 | 030 | 030 |
| Roller number | 21 | 21 | 21 | 21 | |
| Nominal leveled width | mm | 300 | 500 | 800 | 1000 |
| Rated plate thickness(Q235) | mm | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| Max. plate thickness(Q235) | mm | 5 | 5 | 5 | 5 |
| Leveled precision(GB/T1184-1996) | H | H | H | H | |
| Applicable object | Nonferrous sheet metals, mirror sheet metals, etc. | ||||
| Technical features | Tiny roller imprint and high leveling precision | ||||
| Model | Unit | 40-600-21 | 40-800-21 | 40-1000-21 | 40-1300-21 | 40-1500-21 |
| Roller diameter | mm | 040 | <M0 | 040 | 040 | 040 |
| Roller number | 21 | 21 | 21 | 21 | 21 | |
| Nominal leveled width | mm | 600 | 800 | 1000 | 1300 | 1500 |
| Rated plate thickness(Q235) | mm | 0.6-2.5 | 0.6-2.5 | 0.6-2.5 | 0.6-2.5 | 0.6-2.5 |
| Max. plate thickness(Q235) | mm | 6 | 6 | 6 | 6 | 6 |
| Leveled precision(GB/T1184-1996) | H | H | H | H | H | |
| Applicable object | Tape coiling, stnp steel, sheet metals, etc | |||||
| Technical features | Tiny roller imprint and high leveling precision | |||||
50 Series Servo Precise Leveling Machine
| Model | Unit | 50-600-21 | 50-800-21 | 50-1000-21 | 50-1300-21 | 50-1500-21 |
| Roller diameter | mm | 050 | 0>50 | <t»50 | 050 | 4>50 |
| Roller number | 21 | 21 | 21 | 21 | 21 | |
| Nominal leveled width | mm | 600 | 800 | 1000 | 1300 | 1500 |
| Rated plate thickness(Q235) | mm | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| Max. plate thickness(Q235) | mm | 5 | 5 | 5 | 5 | 5 |
| Leveled precision(GB/T1184-1996) | H | H | H | H | H | |
| Applicable object | Flat parts, metals, etc. | |||||
| Technical features | High leveling precision |
60 Series Servo Precise Leveling Machine
| Model | Unit | 60*600*21 | 60*800-21 | 60-1000-21 | 60-1300-21 | 60-1500-21 |
| Roller diameter | mm | 060 | 060 | 060 | 060 | <t>60 |
| Roller number | 21 | 21 | 21 | 21 | 21 | |
| Nominal leveled width | mm | 600 | 800 | 1000 | 1300 | 1500 |
| Rated plate thickness(Q235) | mm | 1.25-5 | 1.25-5 | 1.25-5 | 1.25-5 | 1.25-5 |
| Max. plate thickness(Q235) | mm | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| Leveled precision(GB/T1184-1996) | H.k | H.k | H.k | H.k | H.k | |
| Applicable object | Flat parts, metals, etc. | |||||
| Technical features | High leveling precision |
The above technical parameters are for reference only, with speafk: technical proposal as the cntenon.
80 Series Servo Precise Leveling Machine
| Model | Unit | 80-1000-19 | 80-1300-19 | 80-1600-19 | 80-2100-19 |
| Roller diameter | mm | 080 | 080 | 080 | 080 |
| Roller number | 19 | 19 | 19 | 19 | |
| Nominal leveled width | mm | 1000 | 1300 | 1600 | 2100 |
| Rated plate thickness(Q235) | mm | 2-8 | 2-8 | 2-8 | 2-6 |
| Max. plate thickness(Q235) | mm | 20 | 20 | 20 | 20 |
| Leveled preasion(GB/T1184-1996) | H.k | H.k | H.k | H.k | |
| Applicable object | Flat parts, metals, etc. | ||||
| Technical features | High leveling precision | ||||
The above technical parameters are fcr reference only, with specific technical proposal as the cntenon
Q1: What is a leveling machine?
A1: A leveling machine is a piece of equipment used to flatten and straighten surfaces, typically metal sheets or plates, by applying pressure and force.Q2: How does a leveling machine work?

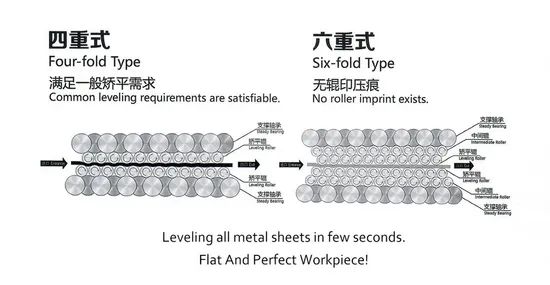

A2: A leveling machine works by passing the material through a series of rollers that apply pressure to the surface. These rollers bend and stretch the material, effectively removing any warping or unevenness.
Q3: What are the benefits of using a leveling machine?
A3: Using a leveling machine ensures that the material is flat and even, which is crucial for further processing such as cutting or welding. It also improves the appearance and quality of the finished product.
Q4: What types of materials can be leveled using a leveling machine?
A4: A leveling machine can be used on a variety of materials, including steel, aluminum, stainless steel, and other metals. It can also be used on non-metallic materials such as plastics or composites.
Q5: Are there different types of leveling machines available?
A5: Yes, there are different types of leveling machines available, including roller levelers, stretcher levelers, and precision levelers. Each type has its own advantages and is suitable for specific applications.
Q6: What factors should be considered when selecting a leveling machine?
A6: Factors to consider when selecting a leveling machine include the type and thickness of the material to be leveled, the desired level of precision, production volume, and available space in the facility.
Q7: Can a leveling machine be automated?
A7: Yes, many modern leveling machines are equipped with automation features such as computer controls, sensors, and feedback systems. This allows for precise and consistent leveling results.
Q8: Are there any safety precautions to take when operating a leveling machine?
A8: Yes, safety precautions should be taken when operating a leveling machine. These may include wearing appropriate personal protective equipment (PPE), following proper operating procedures, and ensuring that the machine is well-maintained and regularly inspected for any potential hazards.
