BestScope BS-6024RF Industry Reflected Professional Research Upright Metallurgical Microscope
1-4 Piece
$7,9505 Piece
$7,900Product information
High-quality BestScope BS-6024RF Industry Reflected Professional Research Upright Metallurgical Microscope supplied by Beijing Bestscope Technology Co., Ltd.. Bulk wholesale pricing ranges from $7,900 to $7,950 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
1000/Month
Objective:
5x, 10x, 20x, 50x, 100x
Specification:
66*59*33
Model NO.:
BS-6024RF
Nosepiece:
Backward Sextuple
Origin:
Beijing, China
Trademark:
BestScope
Shape:
Cylindrical Shaped Lens
Specifications
Production Capacity:
1000/Month
Objective:
5x, 10x, 20x, 50x, 100x
Specification:
66*59*33
Model NO.:
BS-6024RF
Nosepiece:
Backward Sextuple
Origin:
Beijing, China
Trademark:
BestScope
Shape:
Cylindrical Shaped Lens
Mobility:
Desktop
Trade Term:
FOB, EXW, CFR, CIF
Principle Of Optics:
Infinite Color Corrected Optical System
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Type:
Metallographic
Principle:
Optics
Kind Of Light Source:
Reflected illumination
Eyepiece:
SW10x/ 25mm
Transport Package:
Standard Export Carton with Strong Sponge
Usage:
Teaching, Research, Metallurgical
Port Of Loading:
Tianjin, Shanghai, Ningbo
Stereoscopic Effect:
Without Stereoscopic Effect
Focusing:
fine division 1um
Number Of Cylinder:
≥Three
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-03-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Tianjin, Shanghai, Ningbo
Product descriptions from the supplier
Introduction
BS-6024 series upright metallurgical microscopes have been developed for research with a number of pioneering design in appearance and functions, with wide field of view, high definition and bright/dark field semi-apochromatic metallurgical objectives and ergonomical operating system, they are born to provide a perfect research solution and develop a new pattern of industrial field.Features
1. Excellent Infinite Optical System.
With the excellent infinite optical system, BS-6024 series upright metallurgical microscope provides high resolution, high definition and chromatic aberration corrected images which could display the details of your specimen very well.
2. Modular Design.
BS-6024 series microscopes have been designed with modularity to meet various industrial and material science applications. It gives users flexibility to build a system for specific needs.
3. ECO Function.
The microscope light will be off automatically after 15 minutes from operators leaving. It not only saves energy, but also saves the lamp lifetime.
4. Comfortable and Easy to Use.
(1) NIS45 Infinite Plan Semi-APO and APO Objectives.
With high transparent glass and advanced coating technology, NIS45 objective lens can provide high resolution images and accurately reproduce the natural color of the specimens. For special applications, a variety of objectives is available, including polarizing and long working distance.
With high transparent glass and advanced coating technology, NIS45 objective lens can provide high resolution images and accurately reproduce the natural color of the specimens. For special applications, a variety of objectives is available, including polarizing and long working distance.

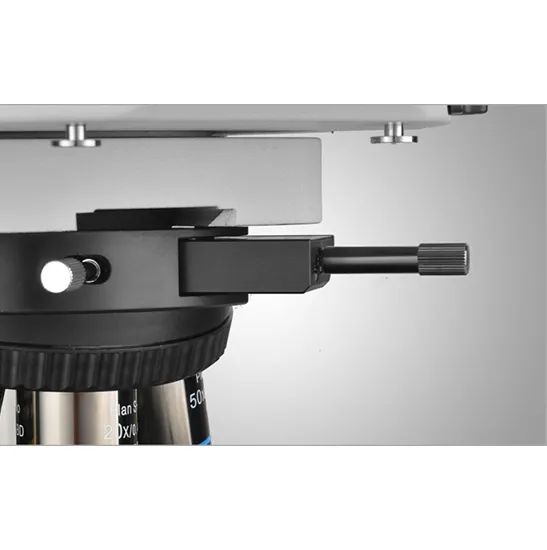

(2) Nomarski DIC.
With newly designed DIC module, the height difference of a specimen which can not be detected with brightfield becomes a relief-like or 3D image. It is ideal for the observation of LCD conducting particles and the surface scratches of hard-disk etc.
With newly designed DIC module, the height difference of a specimen which can not be detected with brightfield becomes a relief-like or 3D image. It is ideal for the observation of LCD conducting particles and the surface scratches of hard-disk etc.

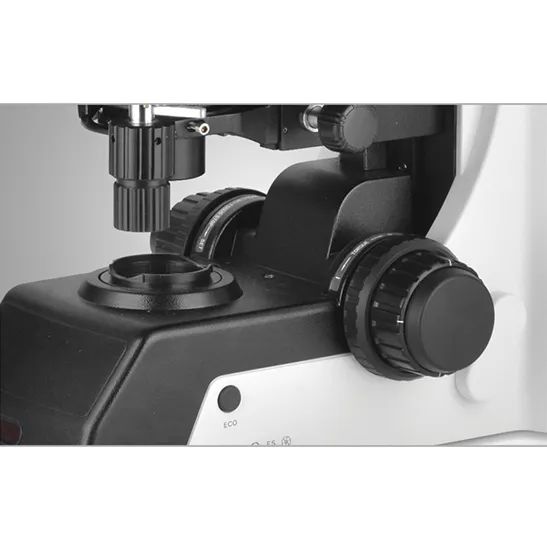

(3) Focusing System.
In order to make the system suitable for the operating habits of the operators, the knob of focusing and stage can be adjusted to the left-hand side or right-hand side. This design makes the operation more comfortable.
In order to make the system suitable for the operating habits of the operators, the knob of focusing and stage can be adjusted to the left-hand side or right-hand side. This design makes the operation more comfortable.

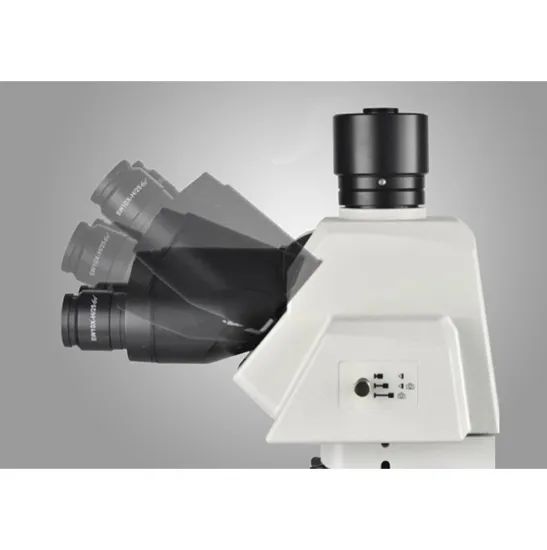

(4) Ergo Tilting Trinocular Head.
Eyepiece tube can be adjustable from 0 ° to 35 °,Trinocular tube can be connected to DSLR camera and digital camera, having a 3-postion beam splitter (0:100, 100:0, 80:20), the splitter bar can be assembled on the either side according to user's requirement.
Eyepiece tube can be adjustable from 0 ° to 35 °,Trinocular tube can be connected to DSLR camera and digital camera, having a 3-postion beam splitter (0:100, 100:0, 80:20), the splitter bar can be assembled on the either side according to user's requirement.
| Darkfield (Wafer) Darkfield enables the observation of scattered or diffracted light from the specimen. Anything that is not flat reflects this light while anything that is flat appears dark so imperfections clearly stand out. The user can identify the existence of even a minute scratch or flaw down to the 8nm level-smaller than the resolving power limit of an optical microscope. Darkfield is ideal for detecting minute scratches or flaws on a specimen and examining mirror surface specimens, including wafers. |
Differential Interference Contrast (Conducting Particles) DIC is a microscopic observation technique in which the height difference of a specimen not detectable with brightfield becomes a relief-like or three- dimensional image with improved contrast. This technique utilizes polarized light and can be customized with a choice of three specially designed prisms. It is ideal for examining specimens with very minute height differences, including metallurgical structures, minerals, magnetic heads, hard-disk media and polished wafer surfaces. |
| Transmitted Light Observation (LCD) For transparent specimen such as LCDs, plastics, and glass materials, transmitted light observation is available by using a variety of condensers. Examining specimen in transmitted brightfield and polarized light can be accomplished all in one convenient system. |
Polarized Light (Asbestos) This microscopic observation technique utilizes polarized light generated by a set of filters (analyzer and polarizer). The characteristics of the sample directly affect the intensity of the light reflected through the system. It is suitable for metallurgical structures (i.e., growth pattern of graphite on nodular casting iron), minerals, LCDs and semiconductor materials. |
Application
BS-6024 series microscopes are widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, it also can be used in electronics, chemical and semiconductor industry, such as wafer, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, other non-metallic materials and so on.Specification
| Item | Specification | BS-6024RF | BS-6024TRF | |
| Optical System | NIS45 Infinite Color Corrected Optical System (Tube length: 200mm) | * | * | |
| Viewing Head | Ergo Tilting Trinocular Head, adjustable 0-35° inclined, interpupillary distance 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100 | * | * | |
| Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100 | ○ | ○ | ||
| Seidentopf Binocular Head, 30° inclined, interpupillary distance: 47mm-78mm | ○ | ○ | ||
| Eyepiece | Super wide field plan eyepiece SW10X/25mm, diopter adjustable | * | * | |
| Super wide field plan eyepiece SW10X/22mm, diopter adjustable | ○ | ○ | ||
| Extra wide field plan eyepiece EW12.5X/16mm, diopter adjustable | ○ | ○ | ||
| Wide field plan eyepiece WF15X/16mm, diopter adjustable | ○ | ○ | ||
| Wide field plan eyepiece WF20X/12mm, diopter adjustable | ○ | ○ | ||
| Objective | NIS45 Infinite LWD Plan Semi-APO Objective (BF & DF) | 5X/NA=0.15, WD=20mm | * | * |
| 10X/NA=0.3, WD=11mm | * | * | ||
| 20X/NA=0.45, WD=3.0mm | * | * | ||
| NIS45 Infinite LWD Plan APO Objective (BF & DF) | 50X/NA=0.8, WD=1.0mm | * | * | |
| 100X/NA=0.9, WD=1.0mm | * | * | ||
| NIS60 Infinite LWD Plan Semi-APO Objective (BF) | 5X/NA=0.15, WD=20mm | ○ | ○ | |
| 10X/NA=0.3, WD=11mm | ○ | ○ | ||
| 20X/NA=0.45, WD=3.0mm | ○ | ○ | ||
| NIS60 Infinite LWD Plan APO Objective (BF) | 50X/NA=0.8, WD=1.0mm | ○ | ○ | |
| 100X/NA=0.9, WD=1.0mm | ○ | ○ | ||
| Nosepiece | Backward Sextuple Nosepiece (with DIC slot) | * | * | |
| Condenser | LWD condenser N.A.0.65 | ○ | * | |
| Transmitted Illumination | 24V/100W halogen lamp, Kohler illumination, with ND6/ND25 filter | ○ | * | |
| 3W S-LED lamp, center pre-set, intensity adjustable | ○ | ○ | ||
| Reflected Illumination | Reflected light 24V/100W halogen lamp, Koehler illumination, with 6 position turret | * | * | |
| 100W halogen lamp house | * | * | ||
| Reflected light with 5W LED lamp, Koehler illumination, with 6 position turret | ○ | ○ | ||
| BF1 bright field module | ○ | ○ | ||
| BF2 bright field module | * | * | ||
| DF dark field module | * | * | ||
| Built-in ND6, ND25 filter and color correction filter | ○ | ○ | ||
| ECO Function | ECO function with ECO button | * | * | |
| Focusing | Low-position coaxial coarse and fine focusing, fine division 1μm, Moving range 35mm | * | * | |
| Max. Specimen Height | 76mm | * | ||
| 56mm | * | |||
| Stage | Double layers mechanical stage, size 210mmX170mm; moving range 105mmX105mm (Right or left handle); precision: 1mm; with hard oxidized surface to prevent abrasion, Y direction could be locked | * | * | |
| Wafer holder: could be used to hold 2", 3", 4" wafer | ○ | ○ | ||
| DIC Kit | DIC Kit for reflected illumination (can be used for 10X, 20X, 50X, 100X objectives) | ○ | ○ | |
| Polarizing Kit | Polarizer for reflected illumination | ○ | ○ | |
| Analyzer for reflected illumination, 0-360° rotatable | ○ | ○ | ||
| Polarizer for transmitted illumination | ○ | |||
| Analyzer for transmitted illumination | ○ | |||
| Other Accessories | 0.5X C-mount Adapter | ○ | ○ | |
| 1X C-mount Adapter | ○ | ○ | ||
| Dust Cover | * | * | ||
| Power Cord | * | * | ||
| Calibration slide 0.01mm | ○ | ○ | ||
| Specimen Presser | ○ | ○ | ||
System Diagram
