Billet Machine Continuous Casting Machine Origin China Condition New Trademark SEMC HS Code 8501320000 Type Special Casting

          Our company specializes produces metallurgical equipment, continue casting machine, electric furnace. Our company found in 1986, and covers the area over 30 hectares(300000M2 ), has more than 1000 employees, among of them there are more than 80 engineers and technicians with 20 senior and 25 intermediate title.

       Our company has modern machinery and processing equipment more than 100sets include CNC Gantry Milling Machine, large CNC boring and milling machine, Large CNC cutting machine and so on. We mainly produce electric furnace, continue casting machine, rolling mill, blast furnace, converter and so on, we can do all of design, manufacture, installation, commissioning. Our products were exported to Italy, Philippines, Indonesia, Mongolia, Kazakhstan, Malaysia, Ukraine, Honduras, Iran, Zambia, Nigeria, Myanmar, Vietnam, Syria, Angola, etc. We produce and sale various metallurgical equipments more than 100sets yearly.

      Our continue casting machine series produces were awarded "China Top Ten Brands of the well-known continuous casting machine", and passed the ISO9001: 2008 standard certification. Our metallurgical equipments include electric arc furnace, ladle refining furnace adopt the technology of conductive across arm, tubular water-cooled furnace wall, tubular water-cooled furnace lid and so on with the world advanced level, and equip the PLC control, they are more energy-saving, environmental protection. Our automatic hydraulic cutter which we research and development independent possess reasonable structure, stable performance, and is controlled by PLC, with high cutting precision, fast speed, and reduced waste.

Product Data:



Oscillation control: Frequency conversion PCL control(Siemens or Delta products)
Withdrawal and straightening form:Frequency conversion PCL control(Siemens or Delta products)
Dummy head withdrawal and straightening : PCL control
Public service parameter
Water system require
A. Mould cooling water:P≥0.9Mpa,Q≥100 Nm ³/h
B. Twain cooling water: P≥0.6Mpa,Q≥30 Nm³/h
C. Machine cooling water:  P≥0.6Mpa,Q≥20Nm³/h

   Gas system
A. Oxygen(incise):P≥0.6Mpa,Q≥2.0Nm³/min
Pure≥99.5%
B. Compress air: P≥0.5Mpa,Q≥1.0Nm³/min
C. Burn gas: P≥0.3Mpa,Q≥1.0Nm³/min
Power system
Continue casting main body equipment power consumption ≥60KW  380V  50Hz
CCM public service, water supply, compressor system

1. Strip plate mould of the entirety copper-tube mode which is simple and low cost.
2. High-frequency and small-swing plate spring vibration, the depth of vibration mark is under 0.2mm.
3. The simplified billet guiding device is low cost and easy maintenance.
4. Five-roller and four-drive straightening machine is of the large straightening.
5. Auxiliary straightening machine can re-straighten the billet in emergency.
6. Stainless steel cutting machine can cut-to-length accurately.
7. The coping rate in the surface is less than 5%.
8. Computer and PLC system
9. Tundish roaster

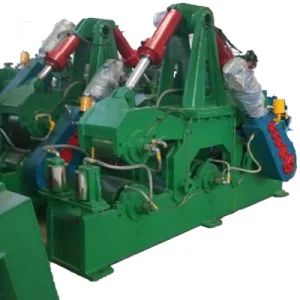

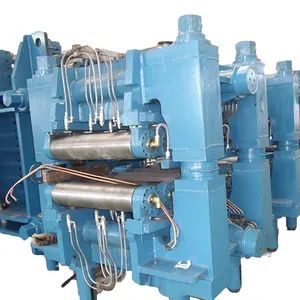

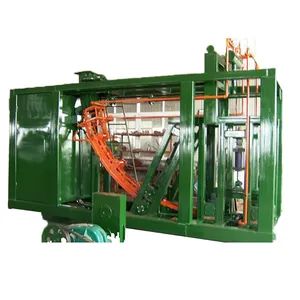

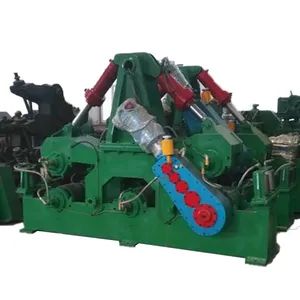

Product Show
