Biodegradable Eco Friendly Single Color PLA Drinking Straw Making Machine
1 Set
$30,0001 Set
$20,000Product information
High-quality Biodegradable Eco Friendly Single Color PLA Drinking Straw Making Machine supplied by Zhangjiagang Borun Machinery Co., Ltd.. Bulk wholesale pricing ranges from $20,000 to $30,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Straw Thickness:
0.1-0.35mm
Production Capacity:
1000sets/Year
Extruding Output:
20-35kg/H
Straw Diameter:
3-12mm
Screw L/D:
33:1
Production Speed:
400-1800PCS/Min
Water Tank Length:
4800mm
Extruder Screw Diameter:
50mm
Specifications
Straw Thickness:
0.1-0.35mm
Production Capacity:
1000sets/Year
Extruding Output:
20-35kg/H
Straw Diameter:
3-12mm
Screw L/D:
33:1
Production Speed:
400-1800PCS/Min
Water Tank Length:
4800mm
Extruder Screw Diameter:
50mm
Straw Length:
80-300mm
HS Code:
84778000
Angle Of Port:
90 / 60 / 45 Degree
Trademark:
BORUN
Origin:
China
Trade Term:
FOB, CFR, CIF, DDP, CIP, CPT, EXW
Payment Term:
LC, T/T, Western Union
Condition:
New
Straw Color:
One Color, Two Color, Three Colors
Straw Material:
PLA, PE, PP
Port Of Loading:
Shanghai, Lianyungang, Ningbo
Stripes:
Straight / Helical
Transport Package:
Wrapping Film / Wooden Cases
Control:
by PLC.
Specification:
customized according to customer's samples
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-04-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CFR, CIF, DDP, CIP, CPT, EXW
Port Of Loading:
Shanghai, Lianyungang, Ningbo
Certificates:
CE Certificate, ISO9001, SGS Certificate
Product descriptions from the supplier
Biodegradable Eco Friendly Single Color PLA Drinking Straw Making Machine

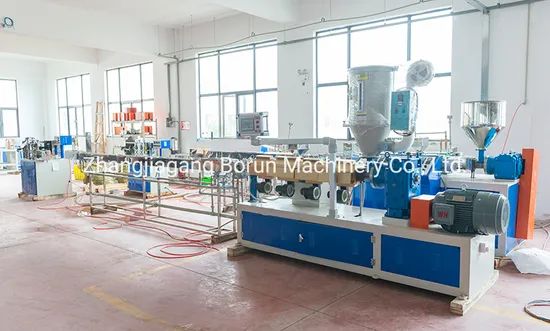

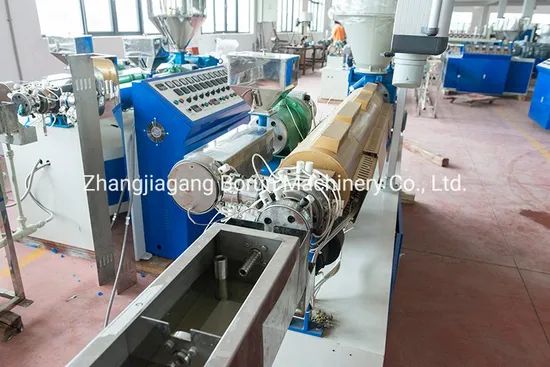

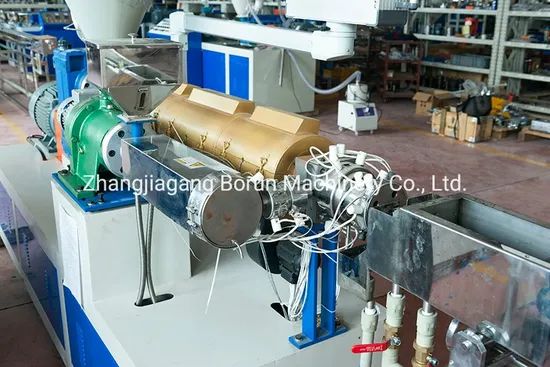

ML12 PLA extrusion line is a tube extrusion line, composed of PLA extruder and die, size setting and water cooling unit, haul-off unit, servo motor rotary cutter unit,special design screw diameter 50mm L:D(33:1) for PLA material, also PP material can be used. High efficient & saving energy motor and heating system. Servo motor cut, The series machines can produce all kinds of PLA & PP drinking straw, medical pipe,all the machine's controls base with PLC & Touch screen control elements ergonomically adapted to permit easy operation. All production data can be transfer to center office by NCC. WIFI function, plc system can be checked and updated by internet.
Features:
1.Special designed L/D 33:1 screw, use for PLA and PP material, 146 hard surface gear box, 18kw high efficient & saving energy synchronous motor.
2. high efficient & saving energy.
3.Water bath in stainless steel can be adjusted in three planes;
4. The haul-off unit can be belt or rollers, it is customizable, Fitted with double rotary cutter. Cut angle: 90°/45°,90°/60°
5. PLC touch screen system, servo motor cutting, wireless wifi network, industry network access.
| Model | ML12 | |
| Basic information | Material | PLA/PP/PE |
| Color | 2 | |
| Straw diameter | φ3.0 ~ φ12 mm | |
| Straw thickness | 0.10 ~ 0.35 mm | |
| Straw length | 80 ~ 300 mm | |
| Stripes | Straight/Helical | |
| Capability | 400 ~ 1800 pcs/min | |
| Extruding output range | 20 ~ 35 kgs/hr | |
| Extruder | Main Screw diameter | φ50 mm ( BM Screw) |
| Screw L/D | 33 : 1 | |
| Main driving motor | 18.5 Kw (Servo motor) | |
| Vice screw diameter | Φ25mmx1 | |
| Vice driving motor | 0.75kwx1(VFD) | |
| Gearbox | ZLY146 hardened face gear | |
| Automatic thermo-controller | 8 sets | |
| Heating power | 11.63kw | |
| Water cooling tank | Forming device | 1 set |
| Water storage tank | (length)3400 mm /304 Steel stainless | |
| Base frame material | 304 Steel stainless | |
| Blow dry device | 1 set | |
| Take up & Cutting Unit | Take up unit | 1 set |
| motor | 0.75kW×1(VFD) | |
| Cutting knife unit | 1 set | |
| Cutting motor | 1.5kW×1(Servo motor) | |
| angle of port | 90°/60°/45° | |
| Digital counter | 1 set | |
| Touch+PLC System | 1set | |
| Others | Air compressor | 1.5kw |
| Dimension LxWxH | 8.5m×1.2m×1.6 m | |
| Machine weight | 2200 kgs | |
