Biodegradable Plastic Blown Film Machine Lab Film Extruder Origin China Raw Material PE Certification CE HS Code 8441200000
set
Negotiable
Product information
High-quality Biodegradable Plastic Blown Film Machine Lab Film Extruder Origin China Raw Material PE Certification CE HS Code 8441200000 supplied by Dongguan Miko Testing Instrument Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
1800mm×800mm×2000mm
Maximum Folding Width Of Film:
200mm
Screw Diameter:
25mm
Die Diameter:
25mm, 30mm, 35mm for Option
Machine Weight:
400kg
HS Code:
8441200000
Automation:
Automatic
Certification:
CE
Specifications
Specification:
1800mm×800mm×2000mm
Maximum Folding Width Of Film:
200mm
Screw Diameter:
25mm
Die Diameter:
25mm, 30mm, 35mm for Option
Machine Weight:
400kg
HS Code:
8441200000
Automation:
Automatic
Certification:
CE
Origin:
China
Trade Term:
FOB
Color:
Green and White or Customized Color
Model NO.:
MK-8003BF
Raw Material:
PE
Computerized:
PLC Control
Transport Package:
Plywood Case
Control System:
Siemens PLC Control
Type:
Single-Layer Film Blown Machine
Payment Term:
To be discussed
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
Certificate
Product descriptions from the supplier
SONA2024 2.2.1
2. Precision Process Control
3. Material & Process Flexibility

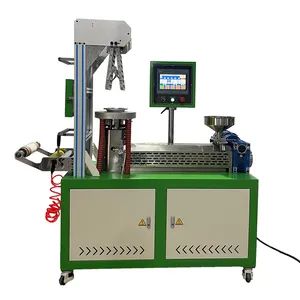

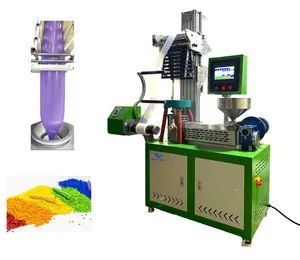

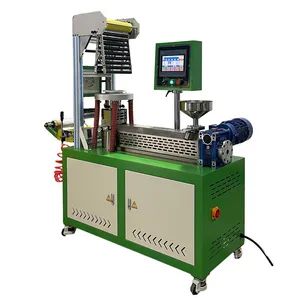

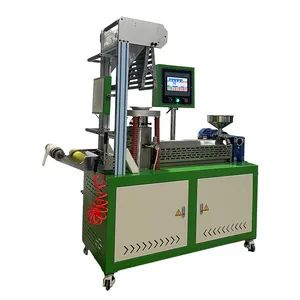

Laboratory Monolayer Blown Film Extrusion Machine Mini Plastic Film Blowing Machine
Lab blown film extrusion machine is used to produce plastic films in laboratory environments or small-scale production.
Working Principle:
Plastic raw materials are heated and melted through a screw extruder. The screw propels the molten material forward, and the molten plastic is extruded through a ring die to form a tubular film. Compressed air is introduced into the tubular film from the center of the die, causing it to expand and form bubbles. After cooling, traction, and winding, the plastic film is produced.
Plastic raw materials are heated and melted through a screw extruder. The screw propels the molten material forward, and the molten plastic is extruded through a ring die to form a tubular film. Compressed air is introduced into the tubular film from the center of the die, causing it to expand and form bubbles. After cooling, traction, and winding, the plastic film is produced.
Applications
1. Materials Research and Testing:
New material development, material performance testing, masterbatch dispersion performance testing
2. Formulation Optimization:
2. Formulation Optimization:
Plastic formulation improvement, multilayer co-extrusion formulation research
3. Process Parameter Research:
3. Process Parameter Research:
Blow-up ratio research, traction speed research, temperature parameter optimization
4. Teaching and Training:
4. Teaching and Training:
University teaching, training for enterprise R&D personnel and technicians
5. Product Prototyping and Small-Batch Production.
5. Product Prototyping and Small-Batch Production.
Technical Specifications
(Custom configurations available upon request.)
Model No. | MK-8003BF-25 | ||
Screw diameter | 25mm | ||
L/D | 30:1 | ||
Screw speed | 0-100rpm | ||
Main motor power | 3kW (Variable frequency motor or servo motor) | ||
Die mouth diameter | 25mm | ||
Max folding width of film | Around 150mm | ||
Volume(W×D×H) | 1800×800×2000mm | ||
Weight | 450kg | ||
Power Supply | 3∮,AC380 | ||
Main Features
1. Compact & Modular Design
Space-saving footprint for labs. Integrated or modular units combine drying, extrusion, blowing, and winding.
2. Precision Process Control
Accurate temperature control, adjustable screw speed/blow-up ratio.
3. Material & Process Flexibility
Handles diverse materials (PE, PP, biodegradable films). Suitable for multi-layer co-extrusion trials and easy process adjustment for formula optimization.
4. Essential for R&D & Education
Enables small-batch prototyping, process simulation for scale-up, and hands-on demonstration of film blowing principles.
Why Choose Us?
After Sales Service
OEM/ODM capabilities
Competitive pricing & Reliable quality
Fast shipping & customs clearance support
Provide professional solutions according to clients' demands
Best services for pre-sales and after-sales
Competitive pricing & Reliable quality
Fast shipping & customs clearance support
Provide professional solutions according to clients' demands
Best services for pre-sales and after-sales
1. Standard Warranty: 12 months after the manufacturing date.
2. Extended Warranty: Optional coverage up to months.
3. Global Support: 24 hours technical assistance and spare parts supply.
4. Training: On-site or remote operation/maintenance training.
2. Extended Warranty: Optional coverage up to months.
3. Global Support: 24 hours technical assistance and spare parts supply.
4. Training: On-site or remote operation/maintenance training.
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 20–30 days; customized units require 45–60 days.
Q: Can I request a customized design?
A: Absolutely! We can provide customized production according to clients' requirements.
Q: How do you provide after-sales service?
A: We provide on-line service for the life-time of equipment, include training video and spare parts supply.
Q: How do I installation and debugging the equipment?
A: The equipment is whole set shipment. You only can connect it with power supply. We will provide you instruction munual and operation video.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
A: Standard models ship in 20–30 days; customized units require 45–60 days.
Q: Can I request a customized design?
A: Absolutely! We can provide customized production according to clients' requirements.
Q: How do you provide after-sales service?
A: We provide on-line service for the life-time of equipment, include training video and spare parts supply.
Q: How do I installation and debugging the equipment?
A: The equipment is whole set shipment. You only can connect it with power supply. We will provide you instruction munual and operation video.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, etc.).
