Boom Lift, Curved-Arm Altitude Platform, Electrical Driving or Diesel Driving
Set
Negotiable
Product information
High-quality Boom Lift, Curved-Arm Altitude Platform, Electrical Driving or Diesel Driving supplied by Yush Machine Group Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
30 Set Per Month
HS Code:
8431
Origin:
China
Feature:
Explosion-Proof, Insulating
Trade Term:
FOB, CFR, CIF, EXW
Driven Type:
Hydraulic
Specification:
ISO
Certification:
ISO 9001
Specifications
Production Capacity:
30 Set Per Month
HS Code:
8431
Origin:
China
Feature:
Explosion-Proof, Insulating
Trade Term:
FOB, CFR, CIF, EXW
Driven Type:
Hydraulic
Specification:
ISO
Certification:
ISO 9001
Electricity Power:
Made to Customer Request
Running Mode:
Moving
Transport Package:
Plastic Film and Wooden Box
Model NO.:
QBC
Lift Mechanism:
Scissor Lift
Moves:
Self-propelled
Carrying Capacity:
Special Weight Level
Payment Term:
T/T, Western Union, Small-amount payment
Port Of Loading:
Tianjin
Application:
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Trademark:
Yush
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2008-01-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Tianjin
Certificates:
CE Certificate of Automatic Paper Roll to Sheet Cutter, CE Certificate of Corrugated Carton Machine, CE certificate of Electrical Shaftless Mill Roll Stand
Product descriptions from the supplier

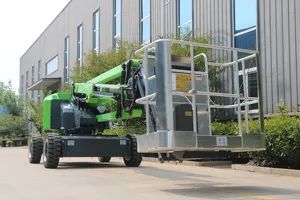

QBCCurved-arm Altitude Platform (Boom Lift)
Functional Specifications:
- This platform compact, lightweight and energy-saving, intelligent and perfect control system, humanized layout, lubrication-free design, easy operation and maintenance, comprehensive security protection and rich configuration.
- Σ-shape curved arm compact structure and flexible extension, can realize vertical lifting, horizontal extension and strong obstacle-surpassing ability, 160° rotatable platform large working range and narrow turntable, compact layout and high work efficiency, can switch to storage state, aluminum alloy working bucket easy to disassemble and assemble.
- Intuitive and friendly control panel easy full range operation, accurate and efficient control, equipped with chassis tilt protection, emergency landing, safe speed limit, flexible start and stop, etc. protection measures.
Technical Parameters:
| Max Loading Weight | 230kg (2-person) |
| Max Lifting Height | 16m |
| Max Working Height | 18m |
| Max Across-over Height | 7.6m |
| Max Working Radius | 9m |
| Platform Width (A) | 0.76m |
| Platform Length (B) | 1.4m |
| Stowed Height (C) | 2.13m |
| Stowed Length (D) | 7.2m |
| Overall Width (E) | 2.26m |
| Wheelbase (F) | 2.1m |
| Max Loading Weight | 230kg (2-person) |
| Platform Rotation | ±70° |
| Turntable Rotation | 360° |
| Vertical Jib Rotation | ±70° |
| Moving Speed (stowed) | 5.5km/h |
| Climbing Capacity (stowed) | 45% |
| Max Working Angle (Tilt Sensor Activation) | 3° |
| Turning Radius | 4.5m |
| Total Weight | About 7500kg |
| Payment Term |
By T/T, 50% prepaid Pay the balance before loading |
| Delivery Time | 60 working days |
| Shipment | 1*20' container |
