Bus Type Three Side Sealing Plastic Bag Making Equipment with Material Storage Device
1 Piece
$45,0001 Piece
$35,000Product information
High-quality Bus Type Three Side Sealing Plastic Bag Making Equipment with Material Storage Device supplied by Wuxi Shengkun Machinery Co., Ltd.. Bulk wholesale pricing ranges from $35,000 to $45,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Temperature Range:
0~300℃
Lines:
1
Package Gross Weight:
10000.000kg
Production Capacity:
100sets/Month
Wall Thickness:
10mm
Specification:
11600× 2050× 2050mm
Package Size:
118.00cm * 213.00cm * 218.00cm
Temperature Of The Heating Block Number:
18PCS
Specifications
Temperature Range:
0~300℃
Lines:
1
Package Gross Weight:
10000.000kg
Production Capacity:
100sets/Month
Wall Thickness:
10mm
Specification:
11600× 2050× 2050mm
Package Size:
118.00cm * 213.00cm * 218.00cm
Temperature Of The Heating Block Number:
18PCS
Mechanical Highest Beat:
300 Strokes/Min
Voltage:
380V
The Maximum Width:
580mm
HS Code:
8477800000
Total Power:
Around 55kw
Machine Weight:
Around 6500kg
Machine Type:
Bag Forming Machine
Product Line:
Bag Making Machine
Seals Mode:
Center Seals
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Layer:
Double
Trade Term:
FOB, CIF, CFR, EXW
Sealing & Cutting:
Heat-Sealing Cold-Cutting
Speed:
High
Origin:
Jiangsu, China
Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Bag Dimensions:
Length: 400 mm
Type:
Plastic Bag Making Machine
Trademark:
SK
Port Of Loading:
Shanghai Port
Model:
Sk-600A-1
Payment Methods:
Support payments in USD
Machine Features:
Three-Side Sealing,Moving Knife Double Cutter Bag
Transport Package:
Wooden Pallet, Rust Proof Bag
Continuous Rolled:
Yes
Maximum Roll Size:
Φ 900 × 1250 mm
Max Discharge Line Speed:
≤50 M/Min
Positioning Accuracy:
≤±0.5mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-09-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
31
Preferred Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Product descriptions from the supplier

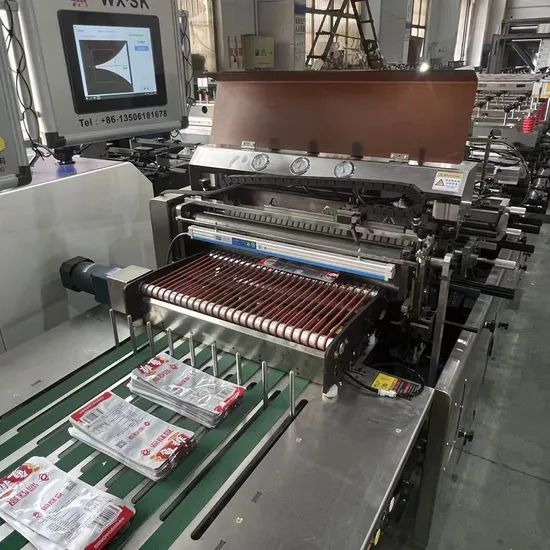

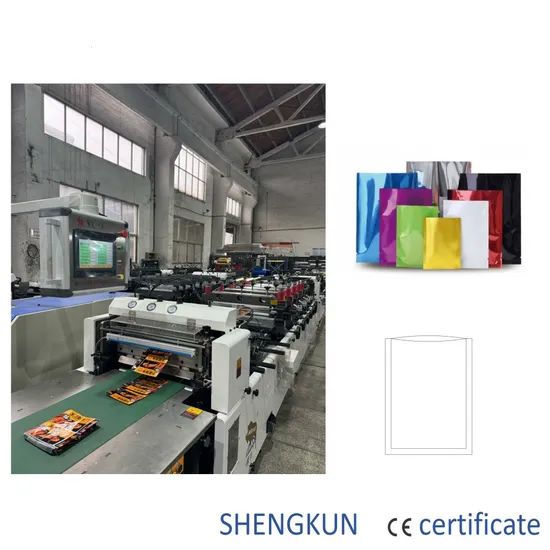

Automatic high speed three side sealing bag making machine
Built using exacting machining and careful construction, the machine boasts a sleek, thoughtfully arranged outer design. The system runs with quiet, fluid movement and minimal operational noise. A PLC-managed dual-servo drive setup allows uninterrupted material transport from the unwind point and overhead frame at a steady pace using an additional traction motor. Centralized temperature regulation through digital controls leads to notable energy savings. The midline tension roller uses adaptive feedback technology to dampen vertical movement during operation, maintaining consistent tension across the entire process.
This machine is suitable for making the following types of packaging bags:
| Bag type | Max. Output | Working speed |
| Three-Side Seal Pouch | 6pcs(based on actual size) | 300 strokes/min |
| Four-Side Seal Pouch | optional | |
| Special-Shaped Pouch | optional |
| Model | SK-600A-1 |
| Machine features | Three-side sealing,moving knife double cutter bag making machine,feeding with storage device |
| Main electrical configuration | Traction four servo motors with Panasonic PLC, the main drive AC servo motor, thermostat18Road , unwinding constant tension |
| Control System Model | Panasonic PLC composite film bag making machine speed control system |
| Suitable substrates | Multilayer co-extruded plastic films composed of BOPP, C0PP, PET, PVC, nylon, and similar materials, aluminum-based laminates, paper-plastic blends, and aluminum foil laminates |
| Mechanical highest Beat | 300 strokes / min, Limited bag length 150mm,depending on material) |
| Maximum discharge line speed | ≤50 m / min ( depending on material ) |
| Bag dimensions | Length: 400 mm , exceeding this length delivery achieved using times ( up to 6 times to send ) |
| The maximum width | 580mm |
| Maximum roll size | Φ 900 × 1250 mm ( diameter × width ) |
| Positioning accuracy | ≤±0.5mm |
| Number of sealing knife | Vertical Seal: 4× top/bottom heating + top/bottom cooling |
| Horizontal Seal: 5× top/bottom heating + 2× top/bottom cooling | |
| Temperature of the heating block number | 18pcs |
| Temperature range | 0~300ºC |
| Total power | Around 55kw(just power on the actual use of power is generally around 35kw, while holding general power of about 30kw) |
| Dimensions | Around 11600×2050×2050mm (L×W×H) |
| Machine weight | Around 6500KG |
| Wall thickness | 10mm( Shanghai Baosteel ) |
| Color | black grey body, stainless steel cover, part black , nickel , chrome |
