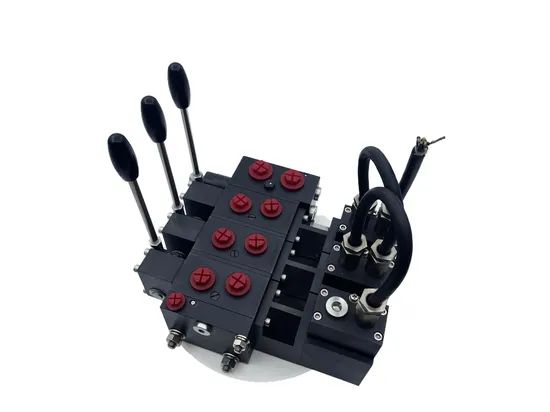

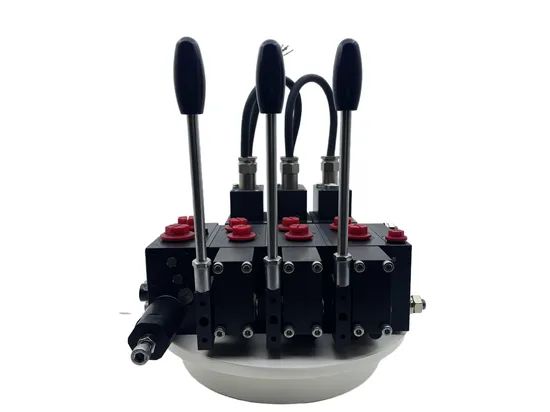

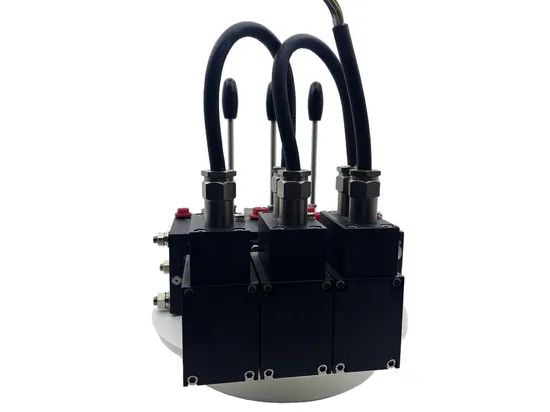

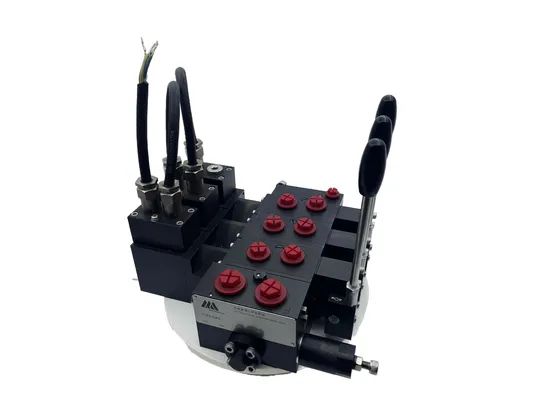

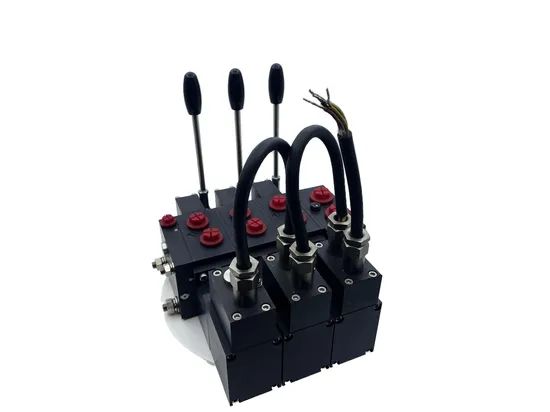

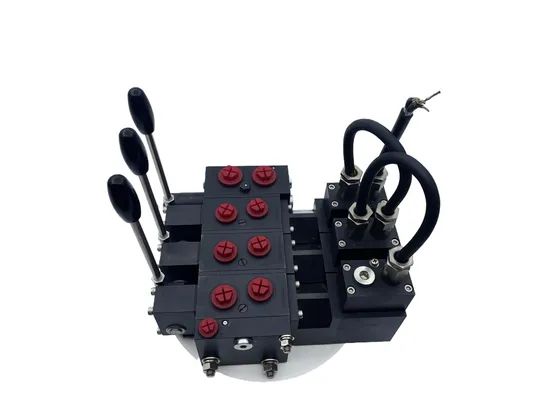

CAN Valve System with Hydraulic Control Technology for Mining Applications
1 Piece
$10Product information
High-quality CAN Valve System with Hydraulic Control Technology for Mining Applications supplied by Jiangsu KM Hydraulic Control System Co., Ltd.. Bulk wholesale pricing is $10 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
500000 Piece
HS Code:
8481201090
Origin:
China
Power Supply:
DC Solenoid Valve
Standard:
DIN
Actuator:
Electric
Trade Term:
FOB, CIF, EXW, CFR
Usage:
Flow Control
Specifications
Production Capacity:
500000 Piece
HS Code:
8481201090
Origin:
China
Power Supply:
DC Solenoid Valve
Standard:
DIN
Actuator:
Electric
Trade Term:
FOB, CIF, EXW, CFR
Usage:
Flow Control
Hawe Psl Type:
Hawe Psv Type
Pressure:
High Temperature
Application:
Industrial Usage
Trademark:
KM Hydraulic
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Proportional Valve:
Load Sensitive Valve
Model NO.:
Loadsensitive Proportional Directional Valve
Atex Valve:
Msha Valve
Flow Control Valve:
Multi Way Directional Valve
Type:
Pilot Operated
Valve Structure:
Pilot Piston Structure
Transport Package:
Plywood Box
Port Of Loading:
Shanghai Port
Material:
Steel
Connection Form:
Thread
Specification:
steel
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-04-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
89
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, EXW, CFR
Port Of Loading:
Shanghai Port
Certificates:
CCC
Product descriptions from the supplier
Introducing our groundbreaking HLPSL and HLPSV load-sensitive proportional multi-way directional spool valves. These revolutionary engineering marvels seamlessly integrate pressure, flow, and directional control into a single, harmonious unit, guaranteeing unmatched performance and reliability. Typically composed of three essential functional modules - connecting blocks, directional valves, and end plates - these valves are meticulously crafted for incorporation into high-end hydraulic systems, pivotal in top-tier engineering machinery. They precisely govern the movement direction and speed of hydraulic cylinders, motors, and other actuators, delivering unparalleled precision and control. Key highlights include a compact structure, superior energy efficiency, and the capability for stepless speed control. Furthermore, they enable multiple actuators to operate simultaneously under varying loads, providing unrivaled performance and versatility for any application.
The HLPSL valves are expertly tailored for constant displacement pump systems, ensuring steadfast and reliable operation. Conversely, the HLPSV valves are masterfully engineered for variable pump systems. While HLPSV valves may exhibit a slightly slower response time, they excel in delivering exceptional energy-saving performance, making them the ultimate choice for applications where efficiency is paramount. With their cutting-edge engineering and energy-efficient design, HLPSV valves emerge as the premier solution for advanced hydraulic control requirements.
| References | size 2 | size 3 | size 5 | |
| Number of Directional Valve bank | 1~12 | 1~12 | 1~10 | |
| Port access type | thread connection | thread connection | thread connection | |
| Flow code | 3,6,10,16,25,40 | 3,6,10,16,25,40,63,80 | 16,25,40,63,80,120,160 | |
| Max.flow(L/min) | 54 | 100 | 210 | |
| Max.pressure(bar) | 420 | 420 | 420 | |
| Control Method | Pilot circuit pressure(bar) | 20~40 | 20~40 | 20~40 |
| Manual force(N) | ≥2.3Nm | ≥1.3Nm | ≥3Nm | |
| Working Pressure(ºC) | -40~80 | -40~80 | -40~80 | |
| Weight | Connection Block (kg) | 1.7 | 4 | 8 |
| Directional Valve bank (kg) | 1.9 | 4 | 8 | |
| End Plate (kg) | 0.5 | 1.5 | 2.5 | |
| Fix mode | thread connection M8 | thread connection M8 | thread connection M10 | |
(1)Essential Connection Block Codes
HLPSL: Constant Displacement Pump - The key to consistent and reliable performance.;
HLPSV: Variable Displacement Pump - Adaptability and flexibility at its finest.;
(2)Connection Block Ports P & R Specifications - Precision you can trust for optimal performance::
2-G3/8; Compact design ensuring efficient performance.
3-G1/2; A reliable and robust choice.;
4-G3/4; Advanced connectivity for enhanced operations.;
5, 55-G1; Superior flow rate for demanding applications.;
6-G1 1/4; Unmatched performance in every connection.;
(3)Additional Components and Specifications - Enhancing your system's capabilities::
C,Standard Type - A dependable baseline for various applications.;
G,Throttle Valve (For HLPSL only) - For precision control.;
H,Fixed Differential Overflow Valve for Enhanced Circulating Pressure (~14 bar, HLPSL) - Optimized flow management for superior performance.;
(4)Pilot Oil Circuit Pressure Options - Customizable pressure control tailored to your needs:0 - No pressure reducing valve; 1 - Pressure reducing valve (20 bar); 2 - Pressure reducing valve (40 bar); Tailored solutions to meet your specific requirements.
(5)2/2-way Magnetic Ball Valve for System Unloading - Streamlined efficiency and operational effectiveness:C - No magnetic ball valve; F - Normally open magnetic ball valve, pressurizes pump when powered, unloads pump when unpowered; D - Normally closed magnetic ball valve, unloads pump when powered, pressurizes when unpowered; D./F. . , With pressure limiting valve for secondary pressure (F50) with specified pressure value; Providing advanced safety measures.
(6)Tool Adjustable, Pressure Limiting Valve in Connection Block: Available settings at 63, 120, 210, 280, 315, 350, 400 bar; /NF: No pressure limiting valve (HLPSV only); Ensuring optimal pressure control for enhanced safety and reliability.
(7)Product Series Classification - Identifying excellence:;-2 2 Series; -3 3 Series; -5 5 Series; Tailored for every application.
(8)Thread size of directional spool valve ports A & B:2-G3/8; 3-G1/2; 4-G3/4; 5-G1; A, ancillary block or intermediate transition block ZPL 5S(V)/H hydraulic control shut-off valve;
(9)Directional valve block inflow controller options: 1, without inflow controller; 2, standard inflow controller; 4, 3-way flow controllers for both inlet and outlet (ideal for N 3/3-way valve); 5, strengthened inflow controller; 8, pre-selectable;
(10) Valve core function symbols: L, M, F, H, J, B, R, O, N;
(11) Output flow code for ports A & B: Available maximum output flows: 3, 6, 10, 16, 25, 40, 63, 80, 120, 160, 210 (L/min);
(12) Secondary pressure limitation options: N, no pressure limiting protection; C, limit the pressure of actuator ports A & B simultaneously; A---B---, limit the pressure of actuator ports A & B separately, unit (bar);
(13) Function ON/OFF and pressure outlet options: N, without function ON/OFF and pressure outlet; X C type pressure limitation; S/S1 AB type pressure limitation; A, electrical ON/OFF on side A; B, electrical ON/OFF on side B;
(14) Operation modes: A(1,2), manual operation with long handle (1=without handle, 2=with short handle); E, electric proportional control; EA(1,2), electric proportional control and manual operation (1=without handle, 2=with short handle); D, electric switching value control; DA(1,2), electric switching value control and manual operation (1=without handle, 2=with short handle); M, manual friction positioning with long handle; H, pure hydraulic control (two pilot oil ports align with oil ports A and B); F, pure hydraulic control (two pilot oil ports are perpendicular to oil ports A and B and outward respectively);
(15) Ancillary block port sizes: /2 G3/8; /3 G1/2; /4 G3/4; /5 G1;
(16) End plate options: E1, standard end plate, external discharge of pilot oil, connecting oil return control port T externally; E2, similar to E1, external discharge of pilot oil, port Y is additionally attached; E3, external discharge of pilot oil, a 2-position 3-way magnetic ball valve is mounted; in power supply scenarios, the system pressure rises to the safety valve pressure;
E4, similar to E1, internal discharge of pilot oil, port T can be sealed; E5, similar to E2, internal discharge of pilot oil, port T can be sealed; E6, similar to E3, internal discharge of pilot oil, port T can be sealed;
(17) Control voltage and the length of anti-explosion type cable options: G12-12VDC;G24-24VDC; G24Ex-3m-24VDC; G12Ex-3m-12VDC; G24MA-3m-24VDC; G12bb621436
HLPSL: Constant Displacement Pump - The key to consistent and reliable performance.;
HLPSV: Variable Displacement Pump - Adaptability and flexibility at its finest.;
(2)Connection Block Ports P & R Specifications - Precision you can trust for optimal performance::
2-G3/8; Compact design ensuring efficient performance.
3-G1/2; A reliable and robust choice.;
4-G3/4; Advanced connectivity for enhanced operations.;
5, 55-G1; Superior flow rate for demanding applications.;
6-G1 1/4; Unmatched performance in every connection.;
(3)Additional Components and Specifications - Enhancing your system's capabilities::
C,Standard Type - A dependable baseline for various applications.;
G,Throttle Valve (For HLPSL only) - For precision control.;
H,Fixed Differential Overflow Valve for Enhanced Circulating Pressure (~14 bar, HLPSL) - Optimized flow management for superior performance.;
(4)Pilot Oil Circuit Pressure Options - Customizable pressure control tailored to your needs:0 - No pressure reducing valve; 1 - Pressure reducing valve (20 bar); 2 - Pressure reducing valve (40 bar); Tailored solutions to meet your specific requirements.
(5)2/2-way Magnetic Ball Valve for System Unloading - Streamlined efficiency and operational effectiveness:C - No magnetic ball valve; F - Normally open magnetic ball valve, pressurizes pump when powered, unloads pump when unpowered; D - Normally closed magnetic ball valve, unloads pump when powered, pressurizes when unpowered; D./F. . , With pressure limiting valve for secondary pressure (F50) with specified pressure value; Providing advanced safety measures.
(6)Tool Adjustable, Pressure Limiting Valve in Connection Block: Available settings at 63, 120, 210, 280, 315, 350, 400 bar; /NF: No pressure limiting valve (HLPSV only); Ensuring optimal pressure control for enhanced safety and reliability.
(7)Product Series Classification - Identifying excellence:;-2 2 Series; -3 3 Series; -5 5 Series; Tailored for every application.
(8)Thread size of directional spool valve ports A & B:2-G3/8; 3-G1/2; 4-G3/4; 5-G1; A, ancillary block or intermediate transition block ZPL 5S(V)/H hydraulic control shut-off valve;
(9)Directional valve block inflow controller options: 1, without inflow controller; 2, standard inflow controller; 4, 3-way flow controllers for both inlet and outlet (ideal for N 3/3-way valve); 5, strengthened inflow controller; 8, pre-selectable;
(10) Valve core function symbols: L, M, F, H, J, B, R, O, N;
(11) Output flow code for ports A & B: Available maximum output flows: 3, 6, 10, 16, 25, 40, 63, 80, 120, 160, 210 (L/min);
(12) Secondary pressure limitation options: N, no pressure limiting protection; C, limit the pressure of actuator ports A & B simultaneously; A---B---, limit the pressure of actuator ports A & B separately, unit (bar);
(13) Function ON/OFF and pressure outlet options: N, without function ON/OFF and pressure outlet; X C type pressure limitation; S/S1 AB type pressure limitation; A, electrical ON/OFF on side A; B, electrical ON/OFF on side B;
(14) Operation modes: A(1,2), manual operation with long handle (1=without handle, 2=with short handle); E, electric proportional control; EA(1,2), electric proportional control and manual operation (1=without handle, 2=with short handle); D, electric switching value control; DA(1,2), electric switching value control and manual operation (1=without handle, 2=with short handle); M, manual friction positioning with long handle; H, pure hydraulic control (two pilot oil ports align with oil ports A and B); F, pure hydraulic control (two pilot oil ports are perpendicular to oil ports A and B and outward respectively);
(15) Ancillary block port sizes: /2 G3/8; /3 G1/2; /4 G3/4; /5 G1;
(16) End plate options: E1, standard end plate, external discharge of pilot oil, connecting oil return control port T externally; E2, similar to E1, external discharge of pilot oil, port Y is additionally attached; E3, external discharge of pilot oil, a 2-position 3-way magnetic ball valve is mounted; in power supply scenarios, the system pressure rises to the safety valve pressure;
E4, similar to E1, internal discharge of pilot oil, port T can be sealed; E5, similar to E2, internal discharge of pilot oil, port T can be sealed; E6, similar to E3, internal discharge of pilot oil, port T can be sealed;
(17) Control voltage and the length of anti-explosion type cable options: G12-12VDC;G24-24VDC; G24Ex-3m-24VDC; G12Ex-3m-12VDC; G24MA-3m-24VDC; G12bb621436
Since our inception in 2009, Jiangsu KM Hydraulic Control System Co., Ltd. has illuminated the hydraulic industry with groundbreaking innovation and unparalleled excellence. As a prestigious subsidiary of the esteemed China Baoan Group (stock code: 000009), we proudly stand as a distinguished national high-tech enterprise. Our expertise lies in the meticulous research, development, manufacturing, and sales of premium hydraulic components. Our esteemed designation as a national 'specialized, refined, and innovative' small giant enterprise underscores our unwavering commitment to technological advancement and superior quality. This relentless dedication positions us as frontrunners in our field.
Our flagship product, the load-sensitive proportional valve, epitomizes the pinnacle of advanced hydraulic system control. Expertly engineered for construction machinery and heavy-duty equipment, this versatile component is vital for high-stakes applications such as emergency rescue operations, tunnel engineering, mining, and municipal service vehicles. We take immense pride in our strategic collaborations with numerous leading domestic manufacturers, playing a pivotal role in localizing core hydraulic components for high-end mechanical equipment. Guided by our core philosophy-'serving customers with technology, impressing customers with our attitude, and retaining customers with quality'-we are resolute in our commitment to delivering exceptional products, services, and solutions. Our mission is to ascend as a globally trusted supplier of premier hydraulic components, setting new benchmarks of excellence worldwide.
Our flagship product, the load-sensitive proportional valve, epitomizes the pinnacle of advanced hydraulic system control. Expertly engineered for construction machinery and heavy-duty equipment, this versatile component is vital for high-stakes applications such as emergency rescue operations, tunnel engineering, mining, and municipal service vehicles. We take immense pride in our strategic collaborations with numerous leading domestic manufacturers, playing a pivotal role in localizing core hydraulic components for high-end mechanical equipment. Guided by our core philosophy-'serving customers with technology, impressing customers with our attitude, and retaining customers with quality'-we are resolute in our commitment to delivering exceptional products, services, and solutions. Our mission is to ascend as a globally trusted supplier of premier hydraulic components, setting new benchmarks of excellence worldwide.
Question:1. What about the lead time?
Answer:The lead time for production is typically around one month following receipt of payment. This timeframe allows us to meticulously prepare and enforce stringent quality control measures. Every detail is managed with precision to ensure your products are delivered flawlessly.
Question:2. Do you have any MOQ limit for LED light orders?
Answer: We offer an exceptionally low minimum order quantity, granting you the flexibility to order even a single piece for sample checking. This ensures your specific needs are perfectly met, making it easier to start your projects smoothly and efficiently.
Question:3. How to proceed with an order for LED lights?
Answer: Begin by informing us of your detailed requirements or applications. We will then provide a customized quote based on your needs or our expert recommendations. Once you confirm the drawings and place a deposit, we will formalize the order and arrange production. Each specification will be met with meticulous precision, ensuring a seamless and tailored solution.drawings,and place a deposit to formalize the order. Finally, we will arrange production, ensuring that every specification is met to perfection, delivering a seamless and tailored solution.
Question:4. Is it OK to print my logo on the product?
Answer: Absolutely, it is possible. Simply inform us formally before production begins and confirm the design based on the sample we provide. This ensures your branding is represented with utmost precision and top-tier quality.
