CCS Rg59 RG6 Rg11 Coaxial Cables for Video Cable O.D 6.1mm Model NO. RG59 Impedence 50ohm HS Code 8544200000 Sheath Material
Meters
Negotiable
Product information

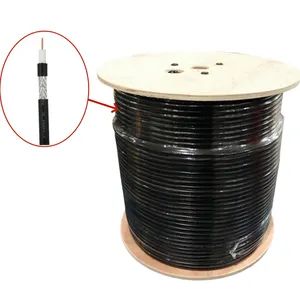

High-quality CCS Rg59 RG6 Rg11 Coaxial Cables for Video Cable O.D 6.1mm Model NO. RG59 Impedence 50ohm HS Code 8544200000 Sheath Material supplied by Hangzhou Aite Cable Co., Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Operating Frequency:
0-6GHz
Specification:
0.81CCS+3.66FPE+AL Braid+6.1PVC
Package Gross Weight:
25.000kg
Production Capacity:
3000km/Year
Rating Voltage:
300V
Package Size:
33.00cm * 33.00cm * 33.00cm
Impedence:
50ohm
O.D:
6.1mm
Specifications
Operating Frequency:
0-6GHz
Specification:
0.81CCS+3.66FPE+AL Braid+6.1PVC
Package Gross Weight:
25.000kg
Production Capacity:
3000km/Year
Rating Voltage:
300V
Package Size:
33.00cm * 33.00cm * 33.00cm
Impedence:
50ohm
O.D:
6.1mm
HS Code:
8544200000
Trademark:
Aite Cable
Trade Term:
CFR, EXW, CIF, FOB
Transport Package:
Cartons/Roll
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Conductor Material:
Copper
Range Of Application:
Flame Retardant
Insulation Material:
Foam PE
Origin:
Hangzhou, China
Certification:
ISO9001, CE, RoHS
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Brand:
OEM Manufactur
Application:
Overhead, Indoor or in Pipe
Sheath Material:
PVC
Model NO.:
RG59
Material Shape:
Round Wire
Port Of Loading:
Shanghai port, Ningbo port
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2012-07-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
29
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
CFR, EXW, CIF, FOB
Port Of Loading:
Shanghai port, Ningbo port
Certificates:
business certificate, CE Certificate, CPR DCA, CPR Eca Coaxial, CPR Eca test report, ISO9001, RoHS2.0
Product descriptions from the supplier
Specification
Name | ||||
RG59 DUAL | RG59 TRI | RG59 QUAD | ||
Structure | Material | Diameter(mm) | ||
Inner conductor | Bare copper/CCS | 0.81 | ||
Insulation | Foamed PE | 3.66 | ||
First Shield | AL Foil | 100% | ||
Second Shield | AL/CCA Braiding | 40-95% | 40-95% | 60% |
Third Shield | AL Foil | / | 100% | 100% |
Fourth Shield | Al Braid | / | / | 6%/40% |
Jacket | PVC/PE | 6.10 | 6.30 | 6.60 |
Electrical Characteristics | |
Impedance (Ω) | 75±3 |
Capacitance (pF/m) | 52±2 |
Velocity of Propagation(%) | 85.0 |
Return Loss | |
5-1000MHz(dB) | ≥22 |
1000-3000MHz(dB) | ≥20 |
Attenuation(@20℃) | ||||
Frequency(MHZ) | Max Attenuation (dB/100m) | Max Attenuation (dB/100m) | ||
5 | 0.9 | 2.8 | ||
55 | 2.1 | 6.7 | ||
187 | 3.6 | 11.8 | ||
211 | 3.8 | 12.5 | ||
400 | 5.1 | 16.7 | ||
500 | 5.7 | 18.7 | ||
750 | 7.0 | 22.8 | ||
860 | 7.5 | 24.6 | ||
1000 | 8.0 | 26.3 | ||
1500 | 9.9 | 32.5 | ||
1800 | 10.9 | 35.6 | ||
2200 | 12.6 | 41.2 | ||
3000 | 13.8 | 45.2 | ||
Packing & Delivery
After Sales Service
Standard Warranty: 12 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
OEM Customized
There is an increasing need for cable to be customised to meet a customers specific requirements.
Such as changing the colour of a sheath on a standard cable, to composite cables with different sized cores, with various levels of screening. Also we can use inner conductor with different materials including copper, Tinned copper, CCS, CCA and TCCA to match the costs and performance.
In addition, cables can be over-sheathed in PE, PVC or LSZH materials to satisfy different requirements. In the case of PVC, we can also stripe outer sheaths to provide easy identification. CPR-Compliant options are available for this cable
Such as changing the colour of a sheath on a standard cable, to composite cables with different sized cores, with various levels of screening. Also we can use inner conductor with different materials including copper, Tinned copper, CCS, CCA and TCCA to match the costs and performance.
In addition, cables can be over-sheathed in PE, PVC or LSZH materials to satisfy different requirements. In the case of PVC, we can also stripe outer sheaths to provide easy identification. CPR-Compliant options are available for this cable
