CE CNC Control Panel Accessory for Manual Axis Adjustment Se Material Plastic Trademark SHANSEN Model NO. SE Series Logo Printing Custom
1-2 Piece
$1603-6 Piece
$1557-10 Piece
$15011 Piece
$145Product information
High-quality CE CNC Control Panel Accessory for Manual Axis Adjustment Se Material Plastic Trademark SHANSEN Model NO. SE Series Logo Printing Custom supplied by Shandong Shansen Cnc Technology Co., Ltd. Bulk wholesale pricing ranges from $145 to $160 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Operating Temperature:
-10°C to +60°C
Package Gross Weight:
1.500kg
Specification:

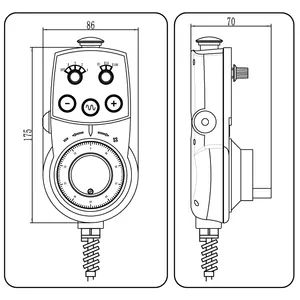

175mm*86mm*70mm
Maximum Pulse Output Frequency:
20 kHz
Pulse Output Resolution:
25PPR / 100PPR
Package Size:
30.00cm * 30.00cm * 20.00cm
Output Voltage Level:
5V, 12V, 24V
Cable Durability:
>200,000 Bending Cycles
Specifications
Operating Temperature:
-10°C to +60°C
Package Gross Weight:
1.500kg
Specification:
175mm*86mm*70mm
Maximum Pulse Output Frequency:
20 kHz
Pulse Output Resolution:
25PPR / 100PPR
Package Size:
30.00cm * 30.00cm * 20.00cm
Output Voltage Level:
5V, 12V, 24V
Cable Durability:
>200,000 Bending Cycles
Features:
Anti-Interference
Application Scope:
CNC Machine Tools\Printing Machinery\Automation
Transport Package:
Carton Box
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Logo Printing:
Custom
Customized:
Customized
Switch Output Type:
Direct Mapping, Coded Output (0V or 24V Logic)
Trade Term:
FOB, CIF, CFR
Protection Level:
IP65
Certification:
ISO 9001:2008, ISO 9001:2000, CE
Payment Term:
LC, T/T
Type:
Manual Pulse Generator
Material:
Plastic
Port Of Loading:
Qingdao Port
Model NO.:
SE Series
Trademark:
SHANSEN
Size:
Se Manual Pulse Generator
Payment Methods:
Support payments in USD
Origin:
Tengzhou, Shandong, China
Video Outgoing Inspection:
Upon Request
Supported Axes:
up to 7 Axes
Insulation Resistance:
≥ 20 MΩ
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-07-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
270
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
CE, ISO14001, ISO45001:2018, ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1
Product Description
One Hand, Total CNC Precision
Still struggling with complex tool setting and inconvenient operations?
Our Manual Pulse Generator (MPG Handwheel) makes CNC control more intuitive, more accurate, and more efficient.
Our Manual Pulse Generator (MPG Handwheel) makes CNC control more intuitive, more accurate, and more efficient.
From Problems to Better Solutions — Designed for Real-World Use
The Common Problems Operators Encounter:
× Cumbersome setup and wiring: Many MPG handwheels require complex wiring or lack standardized connectors, making installation time-consuming.
× Unstable signal response: Inconsistent pulse feedback can lead to inaccurate positioning or unsteady axis movement.
× Fatigue during long operation: Poor button layout and heavy design make continuous use uncomfortable for operators.
× Maintenance and durability issues: Dust, oil, and coolant exposure often shorten product lifespan in real workshop environments.
× Limited after-sales support: Some suppliers offer little to no technical guidance, leaving users to handle configuration issues on their own.
Our Approach to Better Solutions:
√ Simplified integration: We design each handwheel with clear I/O mapping and optional connectors for easy connection to your CNC system.
√ Stable and accurate pulse generation: High-quality encoders ensure smooth, repeatable pulse response, minimizing tool-setting and zeroing errors.
√ Operator-focused ergonomics: Balanced weight distribution, clear labeling, and tactile button feedback reduce strain and improve efficiency.
√ Durability engineered from the inside out: Every component is selected for mechanical strength, oil resistance, and long-term reliability under IP65 protection.
√ Responsive technical support: Our engineering team provides fast response and interface guidance to ensure seamless installation and use.
× Cumbersome setup and wiring: Many MPG handwheels require complex wiring or lack standardized connectors, making installation time-consuming.
× Unstable signal response: Inconsistent pulse feedback can lead to inaccurate positioning or unsteady axis movement.
× Fatigue during long operation: Poor button layout and heavy design make continuous use uncomfortable for operators.
× Maintenance and durability issues: Dust, oil, and coolant exposure often shorten product lifespan in real workshop environments.
× Limited after-sales support: Some suppliers offer little to no technical guidance, leaving users to handle configuration issues on their own.
Our Approach to Better Solutions:
√ Simplified integration: We design each handwheel with clear I/O mapping and optional connectors for easy connection to your CNC system.
√ Stable and accurate pulse generation: High-quality encoders ensure smooth, repeatable pulse response, minimizing tool-setting and zeroing errors.
√ Operator-focused ergonomics: Balanced weight distribution, clear labeling, and tactile button feedback reduce strain and improve efficiency.
√ Durability engineered from the inside out: Every component is selected for mechanical strength, oil resistance, and long-term reliability under IP65 protection.
√ Responsive technical support: Our engineering team provides fast response and interface guidance to ensure seamless installation and use.
5 Reasons Operators Love It
1. Precision You Can Feel
Every click of the MPG delivers smooth, responsive tactile feedback. Operators can precisely control feed increments down to microns, ensuring confidence in every fine adjustment. We carefully select our encoder suppliers and perform rigorous endurance testing on incoming modules—only those meeting our strict performance and reliability standards are used in production.
2. Built Tough for the Shop Floor
The glass fiber–reinforced nylon housing with integrated rubber sealing achieves an IP65 protection level, providing strong resistance against oil, coolant, and everyday impacts. Designed specifically for demanding workshop environments, it maintains durability and reliability even under long-term use.
3. Practical and User-Friendly Design
Every unit includes a dedicated holder, and also offers an optional magnet-potted backplate for quick and stable placement. Optional features such as a dual-shielded coiled cable and an enable switch give operators more flexibility and convenience, ensuring smooth operation across different setups and working conditions.
4. Flexible Across Control Systems
Each MPG is designed for dedicated use on a single CNC machine, yet supports a broad range of systems—including Siemens, Fanuc, Mitsubishi, GSK, Huazhong, and more. This wide compatibility makes it an ideal solution for machine builders, retrofitters, and users working across various CNC environments.
5. Quality You Can Trust
All MPG handwheels are built under a fully implemented 6S management system. Operators are required to wear full anti-static protective gear, and every production process follows strict standard operating procedures. Combined with 100% factory inspection, these measures ensure consistent quality, safety, and performance for every unit delivered.
Every click of the MPG delivers smooth, responsive tactile feedback. Operators can precisely control feed increments down to microns, ensuring confidence in every fine adjustment. We carefully select our encoder suppliers and perform rigorous endurance testing on incoming modules—only those meeting our strict performance and reliability standards are used in production.
2. Built Tough for the Shop Floor
The glass fiber–reinforced nylon housing with integrated rubber sealing achieves an IP65 protection level, providing strong resistance against oil, coolant, and everyday impacts. Designed specifically for demanding workshop environments, it maintains durability and reliability even under long-term use.
3. Practical and User-Friendly Design
Every unit includes a dedicated holder, and also offers an optional magnet-potted backplate for quick and stable placement. Optional features such as a dual-shielded coiled cable and an enable switch give operators more flexibility and convenience, ensuring smooth operation across different setups and working conditions.
4. Flexible Across Control Systems
Each MPG is designed for dedicated use on a single CNC machine, yet supports a broad range of systems—including Siemens, Fanuc, Mitsubishi, GSK, Huazhong, and more. This wide compatibility makes it an ideal solution for machine builders, retrofitters, and users working across various CNC environments.
5. Quality You Can Trust
All MPG handwheels are built under a fully implemented 6S management system. Operators are required to wear full anti-static protective gear, and every production process follows strict standard operating procedures. Combined with 100% factory inspection, these measures ensure consistent quality, safety, and performance for every unit delivered.
Specification
Every detail engineers care about, ready for you
Every aspect of the MPG handwheel has been carefully engineered for reliability, precision, and ease of integration. From the choice of materials to the encoder resolution and connector design, we've ensured that all technical details meet the high standards required by engineers and technicians. Below is a clear overview of the key specifications, so you can quickly assess compatibility and performance for your CNC setup.
Mechanical & Electrical | ||||
Compatible Systems (Examples) | Fanuc | Mitsubishi | Siemens PLC/PLC | Siemens/Fagor |
Pulse Output | 100ppr | 25ppr | 100ppr | 100ppr |
Operating Voltage | DC 5V ±5% | DC 12V ±5% | DC 24V ±5% | DC 5V ±5% |
Output Current | ≤35 mA | ±20 mA | ||
Output Type | Voltage Output (NPN) | Differential Output | ||
Switch Output Mode | Direct (1:1) | Encoded (Common 0V) | Encoded (Common +24V) | |
Frequency Response | 0 ~ 100 kHz | |||
Insulation Resistance | ≥20 MΩ | |||
Overall Dimensions | 134 × 72 × 64 mm | |||
Operating Temperature | -10 ~ +60 ℃ | |||
Mounting | Base-mounted and magnetic (default) | |||
IP Rating | IP65 | |||
Supported Axes | Maximum 7 Axes | |||
Certifications
Certified with CE / ISO
100% Inspection Before Shipment
Independently verified to meet global safety, environmental, and quality management standards, ensuring that every MPG handwheel is suitable for worldwide industrial applications.
Every unit is checked by a dedicated Quality Control team, including visual inspection, encoder and button tests, and signal verification, ensuring flawless operation out of the box.
12-Month Warranty & After-Sales Support
Proven by Global Customer Case
Our commitment doesn't stop at delivery. We provide a full one-year warranty with responsive technical support, replacement options, and remote troubleshooting if needed. Operators can rely on continuous uptime with zero worries.
We have customized and supplied MPG handwheels to leading international machine tool manufacturers, such as Mazak, which reflects the trust and recognition our products have earned in professional production environments.
Packaging & Shipping
From Packaging to Delivery, Every Step is Professional
Each MPG handwheel is packaged in a transparent plastic protective bag with white EPS inserts (some lightweight models do not include these inserts) and placed into a corrugated carton. For bulk orders, multiple cartons will be consolidated into a larger outer box for shipment. Enhanced packaging options, such as reinforced cartons or palletized export packing, are available upon request.
Regular orders are typically shipped within10 working days(excluding large orders), whileunit in stockcan be dispatchedimmediately. Customers with regular and consistent orders can be scheduled for priority production and shipment.
Regular orders are typically shipped within10 working days(excluding large orders), whileunit in stockcan be dispatchedimmediately. Customers with regular and consistent orders can be scheduled for priority production and shipment.
FAQ
Your Questions, Answered in Advance
Q1: Which CNC systems can this MPG handwheel work with?
A: This model is compatible with Fanuc, Mitsubishi, Siemens PLC/PLC and Siemens/Fagor systems, etc. For precise integration, we may require customers to provide an interface definition sheet to verify compatibility.
A: This model is compatible with Fanuc, Mitsubishi, Siemens PLC/PLC and Siemens/Fagor systems, etc. For precise integration, we may require customers to provide an interface definition sheet to verify compatibility.
Q2: Can the coiled cable length be customized?
A: Yes. The factory default is 5 meters, but we can extend or shorten the cable according to your needs (additional cost may apply).
A: Yes. The factory default is 5 meters, but we can extend or shorten the cable according to your needs (additional cost may apply).
Q3: How does the cable connect to the machine?
A: By default, the coiled cable ends with labeled 0508 pin terminals. Optional straight or right-angle connectors are available (additional cost apply). For special connectors, please consult us (additional cost may apply).
A: By default, the coiled cable ends with labeled 0508 pin terminals. Optional straight or right-angle connectors are available (additional cost apply). For special connectors, please consult us (additional cost may apply).
When a connector is added, the socket side allows a customizable cable length (additional cost apply, no cable by default), terminating with labeled 0508 pin terminals.
Click image to visit the products:
Q4: Can one handwheel be used on multiple CNC systems?
A: No. Because communication protocols and port definitions vary between systems, each handwheel is intended for use with a single compatible system.
A: No. Because communication protocols and port definitions vary between systems, each handwheel is intended for use with a single compatible system.
Q5: Are spare parts or replacement components included?
A: Spare parts are not included by default, but can be ordered separately to meet maintenance or backup needs. Costs are arranged individually.
A: Spare parts are not included by default, but can be ordered separately to meet maintenance or backup needs. Costs are arranged individually.
Q6: Do you provide OEM or ODM services?
A: Yes. We have delivered OEM and ODM handwheels for many manufacturers, both in China and internationally. Specific terms and costs are negotiated individually.
A: Yes. We have delivered OEM and ODM handwheels for many manufacturers, both in China and internationally. Specific terms and costs are negotiated individually.
Q7: What other products do you offer?
A: In addition to other MPG handwheel models with broader system compatibility, we also supply CNC operation panels, safety door switches, oil mist collectors, oil skimmer, cable sets, work lights, warning lights, electronic lathes (an upgrade of traditional lathes) and other related products. If needed, please chat with us to obtain the product catalog.
A: In addition to other MPG handwheel models with broader system compatibility, we also supply CNC operation panels, safety door switches, oil mist collectors, oil skimmer, cable sets, work lights, warning lights, electronic lathes (an upgrade of traditional lathes) and other related products. If needed, please chat with us to obtain the product catalog.
