CE Certification Insulating Glass Sealing Robot Automatic Insulating Glass CNC Sealing Machine
1-2 SET
$50,0003-4 SET
$48,0005 SET
$45,000Product information
High-quality CE Certification Insulating Glass Sealing Robot Automatic Insulating Glass CNC Sealing Machine supplied by Shandong GHL CNC Machinery Co., Ltd.. Bulk wholesale pricing ranges from $45,000 to $50,000 per SET with a minimum order of 1 SET. Inquiry for latest prices.
Glass Thickness:
12-56mm
Max Glass Size:
2500*4000mm
Min Glass Size:
300*300mm
Production Capacity:
400set/Year
Working Speed:
5-40m/Min
Grinding Head Number:
6
Package Gross Weight:
6000.000kg
HS Code:
847989990
Specifications
Glass Thickness:
12-56mm
Max Glass Size:
2500*4000mm
Min Glass Size:
300*300mm
Production Capacity:
400set/Year
Working Speed:
5-40m/Min
Grinding Head Number:
6
Package Gross Weight:
6000.000kg
HS Code:
847989990
Package Size:
863.00cm * 140.00cm * 380.00cm
Specification:
8630*1400*3500mm
Spacer Width:
Automamtic Adjust
Origin:
China
Description:
China Hot Sales CNC Sealing Extruder Machine
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
GHL
Type:
Glass Coating Machine
Glass Edging Machine Type:
Glass Double Edging Machine
Payment Term:
LC, T/T
Condition:
New
Port Of Loading:
Qingdao Port
Payment Methods:
Support payments in USD
Glass Washing Machine Type:
Ultrasonic Glass Washing Machine
Structure:
Vertical
Model NO.:
ZNJ2540
Transport Package:
by Plastic Film
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-06-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
93
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE, CERTIFIACTE, HORNOR
Product descriptions from the supplier
China Hot Sales CNC Sealing Extruder Machine
Machine Performance Introduction
1.The machine is suitable for glass deep processing enterprise ,high automation, reduce labor intensity, save manpower, improve production efficiency

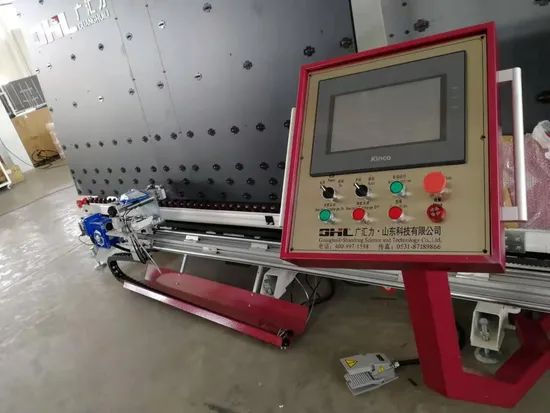

2. Whole machine adopt man-machine touch screen interface, with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner

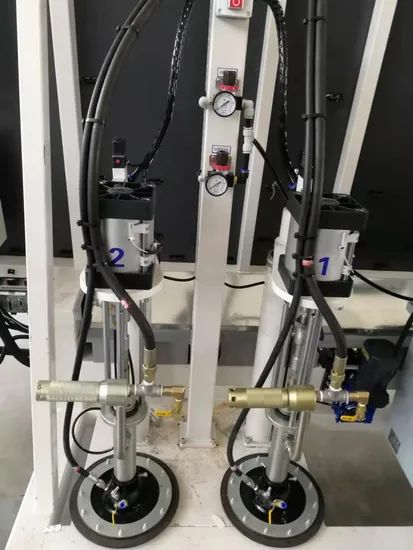

4. Using two sets of independent sealant supply system , two kinds of sealants switch fast ,in one-button operation easily (Model II),save time to change sealant .
5.The width of machine is 1.5m ,small floor area, save space
6. The sections is one production line, it can prestore four pcs glass ,small transport with small section ,big glass trasport with big section , improve the efficiency effectively ,save energy
7.The smallest insulating glass size can be processed is 300*300mm
8.Equipped with anti blocking device in the mixer, easy to clean
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable,counting speed is fast ,sealant output with high precision ,surface with high smoothness .
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11.Chain transmission belt ,transport glass smoothly and reliably, and can be flexibly connected to ERP MES.
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing ,seal the two cavities in one time
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly
15.Equipped with high speed positioning function ,glass can be located accurately when transport fast .
16.Touch screen adopt ethernet communication, sensitive operation, suitable for popular operation .
17.Keep machine service and upgraded timely with our own R&D departments
18.22 years experience in extruding systems to make the system more stable .
19.High pressure non-return valve to make the washing speed faster,save sealant and avoid blocking
20.All low-voltage appliance adopt France Schneider to make the performance stable.
21.Servo transformer with long life service ,low power consumption .
22.Timing sealant discharge function to prevent blocking the mixer
23.Sealant pressure real-time display on touch screen,convenient to adjust
24.Suitable for super large and overweight glass,can be flexibly connected to ERP MES.
Main Technical Parameters
Machine Details:
Machine Performance Introduction
1.The machine is suitable for glass deep processing enterprise ,high automation, reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface, with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system , two kinds of sealants switch fast ,in one-button operation easily (Model II),save time to change sealant .
5.The width of machine is 1.5m ,small floor area, save space
6. The sections is one production line, it can prestore four pcs glass ,small transport with small section ,big glass trasport with big section , improve the efficiency effectively ,save energy
7.The smallest insulating glass size can be processed is 300*300mm
8.Equipped with anti blocking device in the mixer, easy to clean
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable,counting speed is fast ,sealant output with high precision ,surface with high smoothness .
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11.Chain transmission belt ,transport glass smoothly and reliably, and can be flexibly connected to ERP MES.
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing ,seal the two cavities in one time
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly
15.Equipped with high speed positioning function ,glass can be located accurately when transport fast .
16.Touch screen adopt ethernet communication, sensitive operation, suitable for popular operation .
17.Keep machine service and upgraded timely with our own R&D departments
18.22 years experience in extruding systems to make the system more stable .
19.High pressure non-return valve to make the washing speed faster,save sealant and avoid blocking
20.All low-voltage appliance adopt France Schneider to make the performance stable.
21.Servo transformer with long life service ,low power consumption .
22.Timing sealant discharge function to prevent blocking the mixer
23.Sealant pressure real-time display on touch screen,convenient to adjust
24.Suitable for super large and overweight glass,can be flexibly connected to ERP MES.
Main Technical Parameters
| Model | ZNJ2540-I | ZNJ2540-II |
| Voltage Power | 380V 50Hz 9KW | 380V 50Hz 9KW |
| Air Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Squeeze Pressure | 32Mpa | 32Mpa |
| Max Glass Size | 2500*4000mm | 2500*4000mm |
| Min Glass Size | 300*300mm | 300*300mm |
| Glass Thickness | 12-56mm | 12-56mm |
| Working Speed | 5-40m/min | 5-40m/min |
| Overall Dimension | 8630*1400*3500mm | 8630*1400*3500mm |
Machine Details:
