CE Standard Inlet Strainer Hot Water Temperature Control Modules
1 Set
$1,1001 Set
$500Product information
High-quality CE Standard Inlet Strainer Hot Water Temperature Control Modules supplied by Guangdong Xiecheng Intelligent Equipment Co., Ltd.. Bulk wholesale pricing ranges from $500 to $1,100 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Pump:
0.75 Kw
Warranty:
1 Year
Max. Temp:
100 Degree
Loading Distance:
38 M
Pump Flow:
56 L/Min
Specification:
730x310x643 mm
Heating Power:
9kw
Origin:
China
Specifications
Pump:
0.75 Kw
Warranty:
1 Year
Max. Temp:
100 Degree
Loading Distance:
38 M
Pump Flow:
56 L/Min
Specification:
730x310x643 mm
Heating Power:
9kw
Origin:
China
Control Type:
Digital
Operating Principle:
Direct or Indirect as Required
Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Gaosha Port
Display Type:
LCD
Main Pipe:
Stainless Steel
Payment Term:
T/T, LC, D/P, PayPal, Western Union, Small-amount payment
Transfer Medium:
Water
Transport Package:
Wooden Case as Usual
Model NO.:
XC-TM9KW-W
Trademark:
XIECHENG
Brand:
Xiecheng
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-06-25
Annual Revenue Amount:
Not specified
Numbers Of Employees:
284
Preferred Payment Term:
T/T, LC, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Gaosha Port
Certificates:
Others, ISO9001:2015
Product descriptions from the supplier

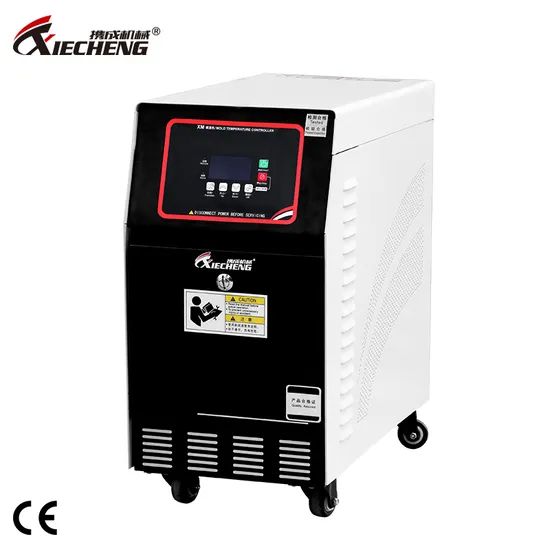

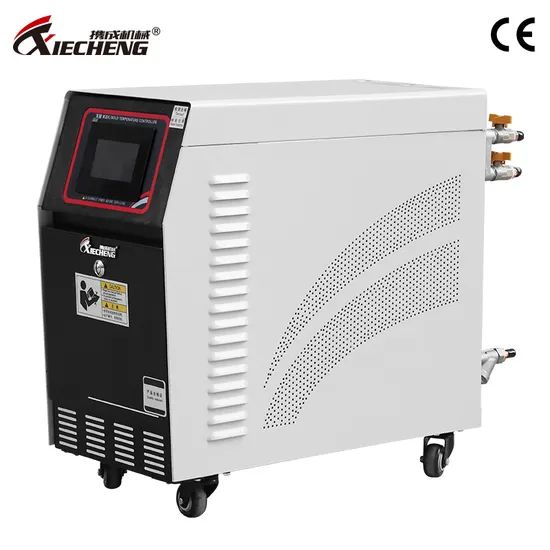

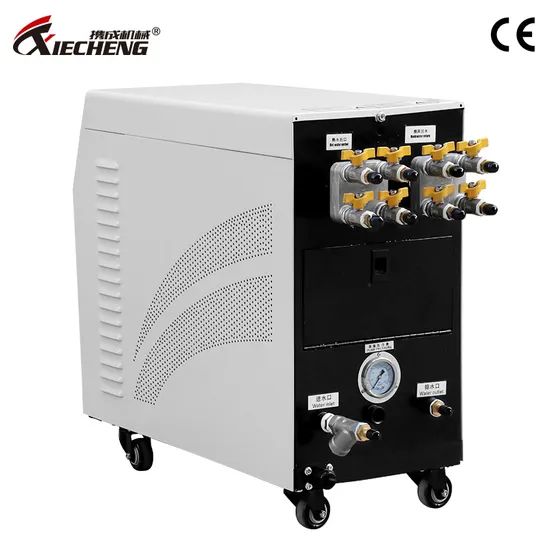

Ce Standard Inlet Strainer Hot Water Temperature Control Modules
Water Mold Temperature Controller
Water heaters are used to heat up the mould and maintain temperature, and also they can be used in other similar applications. This series of machines use water as the medium that saves production cost and ensures good working environment. As water circulates in the hermetic pipes, it remains in liquid state even the mould temperature is higher than 100°C, which can enhance flow rate and improve heat transfer effect.
| Model | XC-TM6KW-W | XC-TM9KW-W | XC-TM12KW-W | XC-TM18KW-W | XC-TM24KW-W | XC-TM36KW-W |
| Transfer Medium | Water | |||||
| Maximum Temperature | 100°C | |||||
| Pump (KW) | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 |
| Pump Flow (L/min) | 42 | 56 | 56 | 160 | 160 | 315 |
| Loading Distance (m) | 28 | 38 | 38 | 27 | 27 | 30 |
| Heating Power (KW) | 6 | 9 | 12 | 9*2 | 12*2 | 12*3 |
| Inlet and Outlet Diameter | 3/8``x2 | 3/8``x4 | 3/8``x4 | 1''x1 | 1''x1 | 1.5``x1 |
| Dimensions (mm) | 730*310*643 | 730*310*643 | 730*310*643 | 830*370*694 | 830*370*694 | 1090*520*983 |
| Approx. Net Weight (KG) | 45 | 46 | 50 | 65 | 100 | 110 |
If you want more sizes, please contact us for details
CONTACT SUPPLIER
01 LCD controller
▪ Advanced microcomputer LCD controller can display both the actual temperature and set temperature, easy to operate with accuracy ±0.1 Celsius and long continuity and high efficiency.
▪ Digital timing for 24 hours a week to realize automatic operation.
▪ Digital timing for 24 hours a week to realize automatic operation.
02 Siemens Electric
SIEMENS electrical parts ensures stable running and liability of the machine.

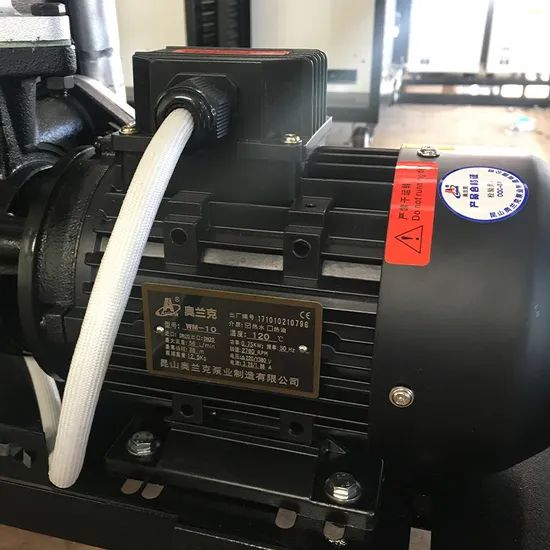

03 Water Pump
Adopted with high efficiency water pump. It can keep accurate temperature level and it is adaptable for production with precise molding.

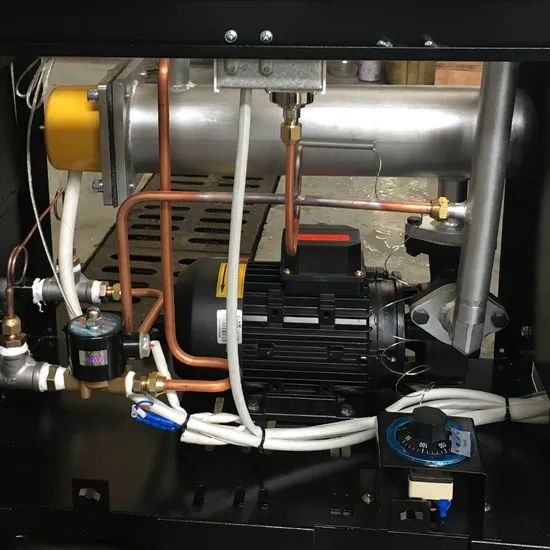

04 Heating Wire
UsingSUS304 seamless heating wire, stainless steel flange, not easy to burn out, durable.
05 Radiator Pipe & Barrel
▪ Usingpure copperheat pipe, the heat dissipation effect is better;
▪ The radiator barrel is made ofstainless steel, corrosion resistance and long life.
▪ The radiator barrel is made ofstainless steel, corrosion resistance and long life.
06 SUS304 stainless steel seamless
SUS304 stainless steel seamless heating barrel and main pipelines can ensure corrosion-resistant, no leakage and long working lifetime.
Customer Case
Widely used for plastic molding, Die casting of light guide plate, rubber tire,roller, chemical reaction kettle, adhesive industry, plastication and mixing industry etc.
Company ProfileIn 2009, founded by Mr. Fuzhibo with its head quarter in Jiangmen city which known as a famous hometown of many overseas Chinese, Jiangmen Xiecheng Machinery Co., Ltd. has been devoted herself to be an integrated enterprise of R&D, manufacturing and marketing businesses for High-end Industrial Refrigeration Equipment, Rubber and Plastic Moulding Auxiliary Automation Equipment, and also Intelligent Integrated System Solutions. Authenticated by IS09001, XIECHENG also successfully established the "6+1+C" full dimensional product service system with her own supply chain advantages of combining the six series of products, as Industrial Refrigeration, Mould Temp. Controlling, Material Conveying, Crushing & Recycling, Dehumidifying & Drying, and also Mixing, into central intelligent system solutions as Material Feeding, Air Supply, Water Supply and Power Supply, to fast fitting customers' specific demands.
