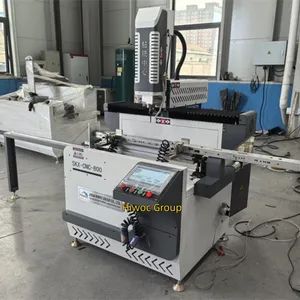

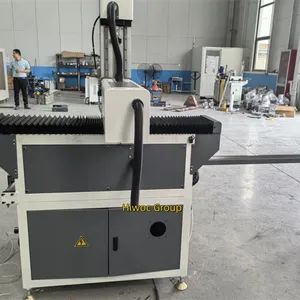

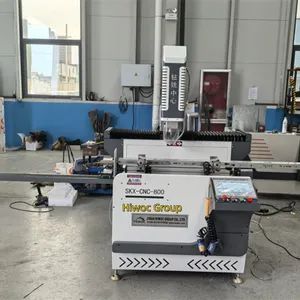

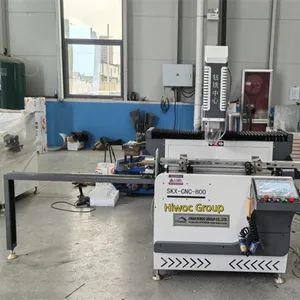

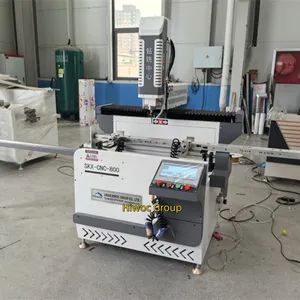

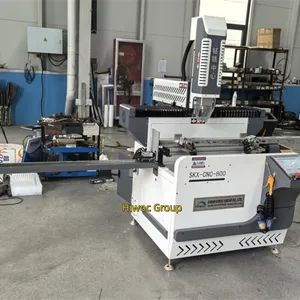

CNC 800 Aluminum Profile Drilling and Milling Machine Window Making Machine
set
Negotiable
Product information
High-quality CNC 800 Aluminum Profile Drilling and Milling Machine Window Making Machine supplied by Jinan Hiwoc Group Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
1720*1520*1850mm
Package Size:
180.00cm * 160.00cm * 190.00cm
Z Axis Processing Range:
280mm
Y Axis Processing Range:
300mm
Voltage:
380V
Package Gross Weight:
500.000kg
X Axis Processing Range:
800mm
Input Power:
9.0kw
Specifications
Specification:
1720*1520*1850mm
Package Size:
180.00cm * 160.00cm * 190.00cm
Z Axis Processing Range:
280mm
Y Axis Processing Range:
300mm
Voltage:
380V
Package Gross Weight:
500.000kg
X Axis Processing Range:
800mm
Input Power:
9.0kw
Automatic Grade:
Automatic
Certification:
CE
CNC Or Not:
CNC
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB
Trademark:
Hiwoc Group
Origin:
Jinan, Shandong
Condition:
New
Model NO.:
SKX-800
Payment Methods:
Support payments in USD
Payment Term:
To be discussed
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
CE CERTIFICATE
Product descriptions from the supplier
Product Description
High speed aluminum profile CNC drilling and milling center
1. The high-speed electric spindle used in this machine is a special 3.5KW spindle with 3 ceramic bearings specially customized by Italian technology, which has lower noise and better durability.
2. The flipping mechanism has a fast speed and can improve production efficiency by 20%.
3. This product is used for aluminum alloy profiles, aluminum wood composite profiles, and U-PVC profiles
Processing of various hole types. A lightweight CNC drilling and milling machine that can easily flip and switch between 0-90 degrees+90 degrees on three sides for quick processing when clamping profiles at once.
4. The positioning method can achieve system positioning and manual positioning according to the processing scenario to improve production
Efficiency.
5. The Z-axis adopts a brake motor to prevent damage to the milling cutter and spindle caused by sudden power outage or Z-axis sliding after power outage.
6. The cylinder flips over, making angle conversion easy and effortless.
7. The X-axis, Y-axis, Z-axis, and C-axis are stepper motors
Specification
X-axis machining range | 0-800mm |
Y-axis machining range | 0-200mm |
Z-axis machining range | 0-145mm |
X-axis feed rate | 0-10m/min |
Y-axis feed rate | 0-10m/min |
Z-axis feed rate | 0-10m/min |
X-axis positioning accuracy | ± 0.04mm |
Y-axis positioning accuracy | ± 0.04mm |
Z-axis positioning accuracy | ± 0.04mm |
Main spindle power | 3.5kW |
Variable frequency spindle speed | 0-18000 rpm |
Power supply | 380V/50Hz/3phase or can be customized |
Total power | 4.5 kW |
Machine tool size | 1720 x 1520 x 1850mm |
Machine weight | 480kg |
Packaging & Shipping
JINAN HIWOC GROUP CO., LTD is specialized in the production of upvc window door machine, aluminum window door machine, curtain wall making machine and insulating glass machine. Company sets research and development, production, sales, maintenance services as a whole. In order to give customer perfect service, we could also buy the upvc/aluminum profiles, window door hardwares for you from our longterm cooperation partner manufacturer.We are found in 2017, but export from export agent company. We started our own export team in 2018, and has exported 35 countrys already with very good reputation and service.Hiwoc company takes the "quality, integrity, innovation, service" spirit, always adhere to the customer demands as the guide, it was well welcomed by almost all customers with its high-quality product and good after-sales service.
FAQ
1. who are we?
We have many years experience for insulating glass machines and window door making machines
We have many years experience for insulating glass machines and window door making machines
2. how can we guarantee quality?
Always final Inspection before shipment;
Always final Inspection before shipment;
3.what can you buy from us?
pvc window door machine,aluminum window door machine,insulating glass machine.
pvc window door machine,aluminum window door machine,insulating glass machine.
4. why should you buy from us not from other suppliers?
We have professional manufacturing, sales and after sales team for more than 8 years.
We have professional manufacturing, sales and after sales team for more than 8 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic
