CNC Busbar Bending Machine/China Machine Origin China Weight 9400kgs Warranty 1 Year Trademark Vinston HS Code 8463300000
Piece
Negotiable
Product information
High-quality CNC Busbar Bending Machine/China Machine Origin China Weight 9400kgs Warranty 1 Year Trademark Vinston HS Code 8463300000 supplied by Vinston Machinery Limited. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty:
1 Year
Production Capacity:
100+
Leadtime:
30~55 Days
Specification:
3600*2200*2350
Diameter:
50*8mm(Soft Material)
HS Code:
8463300000
Weight:
9400kgs
Model NO.:
CMM-40-6E
Specifications
Warranty:
1 Year
Production Capacity:
100+
Leadtime:
30~55 Days
Specification:
3600*2200*2350
Diameter:
50*8mm(Soft Material)
HS Code:
8463300000
Weight:
9400kgs
Model NO.:
CMM-40-6E
Origin:
China
Trade Term:
FOB
Certification:
ISO, CE
Shipping Cost:
Negotiate with Supplier About Shipping Cost
Payment Term:
T/T
Trademark:
Vinston
Transport Package:
Wooden Case
Port Of Loading:
Yantian Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-01-22
Annual Revenue Amount:
Not specified
Numbers Of Employees:
95
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB
Port Of Loading:
Yantian Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
Product Paramenters
|
MODEL
|
CMM-40-6E
|
|||
|
Wire Diameter
|
50.0 * 8.0mm (soft material)
|
|||
|
Max.Wire Feed Length
|
Infinite length
|
|||
|
Number Of Axes
|
13 axes (standard with servo scissors)
|
|||
|
Power
|
62KW
|
|||
|
Voltage
|
380V
|
|||
|
Software
|
Pentium Industrial Computer/Intel
|
|||
|
Voltage Regulator Power
|
50KAV
|
|||
|
Robotic Control System
|
Standard configuration
|
|||
|
Depth
|
3600mm
|
|||
|
Width
|
2200mm
|
|||
|
Height
|
2350mm
|
|||
|
Machine Weight
|
9400KG
|
3000KG
|
||
|
The above configuration parameters are subject to change without prior notice, please refer to the actual situation.
|
||||
---------------------------------------------------------------------------------------------------
Contact us for more information
Since the establishment of the VINSTON brand in 2001, our machines have help the manfacturing industry in more than 20 countries.
We strive to provide quality machinery and excellent customer service. Commited to solving customer application problems, our R & D is constantly at work to provide the next generation of machinery that encompasses support for a larger array of designs and builds. With sales and support centers in strategic locations on four continents, VINSTON provides the world with wire manufacturing solutions.

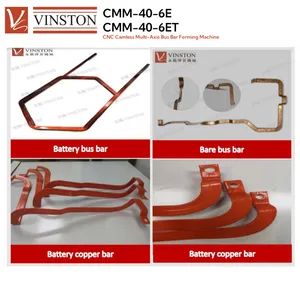

VINSTON is also a professional manufacturer of CNC Multi-Axis spring and bending machinery for all types of bus bar used in the electrical vehicle and other power distribution industries. We adopt state of the art servo control technology and integrate them into spring and bus bar production.
VINSTON is the first manufacturer in China to modify camless machinery architecture to facilitate the manufacturing of bus bars. Multiple domestic and international patents have been incorporated into the updated product line.
The VINSTON product line provides high accuracy, high efficiency, and low energy consumption among other benefits.
We strive to provide quality machinery and excellent customer service. Commited to solving customer application problems, our R & D is constantly at work to provide the next generation of machinery that encompasses support for a larger array of designs and builds. With sales and support centers in strategic locations on four continents, VINSTON provides the world with wire manufacturing solutions.
VINSTON is also a professional manufacturer of CNC Multi-Axis spring and bending machinery for all types of bus bar used in the electrical vehicle and other power distribution industries. We adopt state of the art servo control technology and integrate them into spring and bus bar production.
VINSTON is the first manufacturer in China to modify camless machinery architecture to facilitate the manufacturing of bus bars. Multiple domestic and international patents have been incorporated into the updated product line.
The VINSTON product line provides high accuracy, high efficiency, and low energy consumption among other benefits.
---------------------------------------------------------------------------------------------------
Contact us for more information
We offer remote free technical support via email or phone. Alternatively, upon customer request, our supplier can dispatch technical personnel to the customer's factory for on-site technical support. However, the customer is responsible for the expenses of technical personnel located outside China.
Customers may also send their own technical personnel to Vinston factory for free training.
The complete machine is covered by a one-year warranty. During the warranty period, non-artificially damaged parts can be replaced free of charge.
After the warranty period expires, damaged parts need to be repurchased, and all associated costs will be borne by the customer.
Q1: What is the MOQ?
A2: One set.
Q2: What is the payment term?
A3: 30% deposit ,70% before the shipment.
Q3: What is the delivery time?
A4: 30-50 working days after receiving deposit.Time for setting tooling and adjusting for samples are not included.
