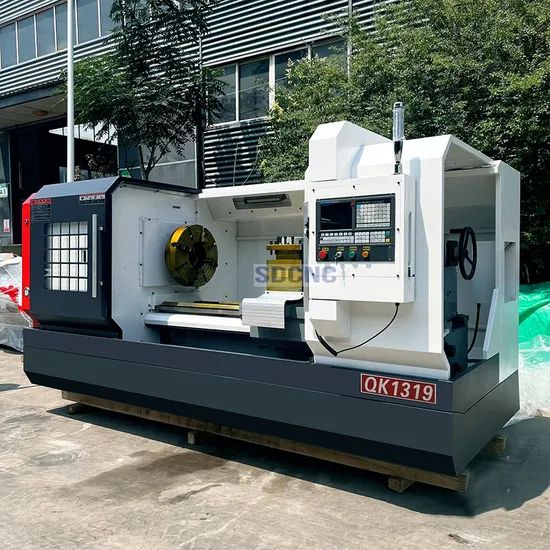

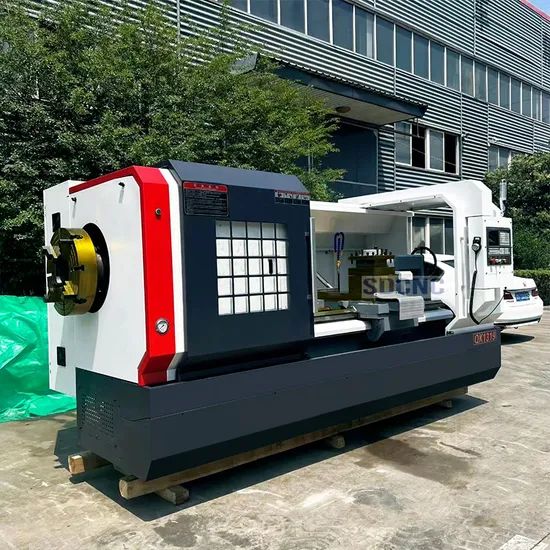

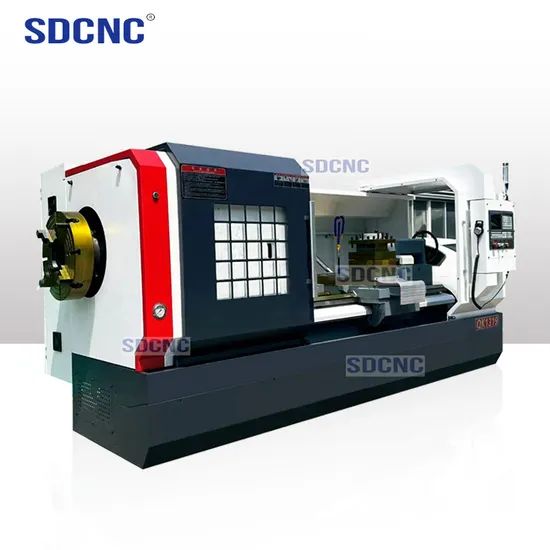

CNC Control Fully Automatic Horizontal Qk1319 Pipe Threading Machine
1 Piece
$50,0001 Piece
$30,000Product information
High-quality CNC Control Fully Automatic Horizontal Qk1319 Pipe Threading Machine supplied by Shandong Shanshu Cnc Machine Tool Co., Ltd.. Bulk wholesale pricing ranges from $30,000 to $50,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Processing Precision:
0.01~0.02(mm)
Main Spindle Motor:
11kw
Package Size:
185.00cm * 185.00cm * 330.00cm
Specification:
1850*1850*3300
Package Gross Weight:
4500.000kg
Swing Over Bed:
630mm
Process Usage:
CNC Non-Conventional Machine Tools
Numerical Control:
CNC/MNC
Specifications
Processing Precision:
0.01~0.02(mm)
Main Spindle Motor:
11kw
Package Size:
185.00cm * 185.00cm * 330.00cm
Specification:
1850*1850*3300
Package Gross Weight:
4500.000kg
Swing Over Bed:
630mm
Process Usage:
CNC Non-Conventional Machine Tools
Numerical Control:
CNC/MNC
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Transport Package:
Customer Request
Performance Classification:
Economical CNC Machine Tools
Trade Term:
FOB, CIF, CFR
Certification:
GS, CE, RoHS, ISO 9001
Payment Term:
LC, T/T
Machine Type:
Lathe Machine CNC
Movement Method:
Linear Control
Application:
Metal
Condition:
New
Model NO.:
QK1319
Port Of Loading:
Qingdao Port
Trademark:
SDCNC
Control Method:
Semi-Closed Loop Control
Origin:
Shandong China
Payment Methods:
Support payments in USD
Processing Type:
Turning CNC Lathe Machine
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-09-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
10
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Qingdao Port
Certificates:
Business license, CE Certificate, ISO Certificate, SGS Certificate, Trademarks Certificates, TUV Certificate
Product descriptions from the supplier
SDCNCThis series CNC Pipe threading lathe is mainly designed for processing internal and external pipe threads
including metric, inch, module, DP and taper threads, as well as having all the common functions of normal CNC
lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used
in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is
high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
Please note: machine bed length can customize according to real work demand, machine on this page
can choose servo motor direct driving structure turning center with C axis
1.Big spindle bore and double chuck to ensure process big diameter pipe.
2.One-piece bed adopts high strength iron to ensure rigidity and precision.
3.Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
4.Carriage and guide way contact surface use Turcite B to maintain accuracy.
1. Siemens controller
2. NC turret
3. Automatic Lubrication
4. Coolant Pump
5. Semi-shield1.
1. Fanuc or other brand CNC controller
2. Quick change tool post
3. Hydraulic turret or Power turret
4. Pneumatic chuck
5. Hydraulic tailstock
6. Pneumatic position limiter
7. Tool setting arm
8. Full-shield1.
| Item | Unit | QK1319 | ||
| Manual | HYD | |||
| Capacity | Swing over bed | mm | 630/800 | |
| Swing over cross slide | mm | 340/520 | ||
| Distance between centers | mm | 1000-6000 | ||
| Guideway width | mm | 50-220 | ||
| Max. load capacity | mm | 550 | ||
| Spindle bore | T | 3 | ||
| Spindle | Spindle bore taper | mm | 190/200 | |
| Spindle nose type | - | VF.4 steps | HYD 4 steps | |
| Spindle speed range | rpm | 20-600 | ||

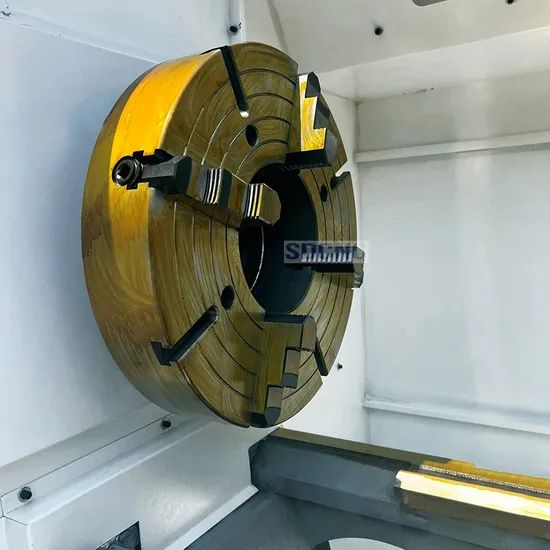

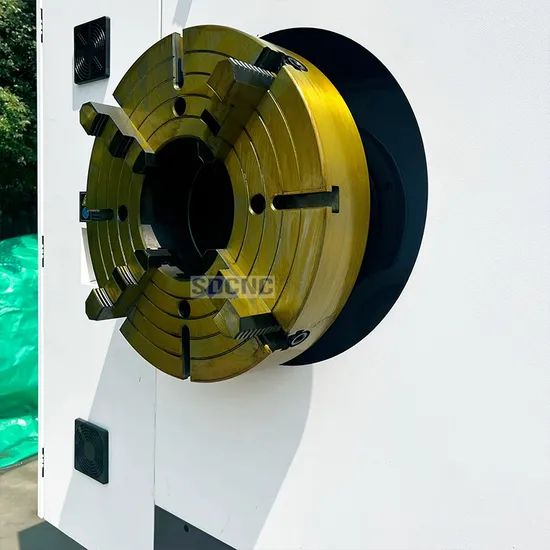

| Chuck | mm | Φ500 4-jaw manual | ||
| Turret | Turret/tool post | - | NC turret 4 position | |
| Tool shank size | mm | 32×32 | ||
| Feed | X axis travel | mm | 320/420 | |
| Z axis travel | mm | 1000-6000 | ||
| X axis rapid traverse | mm/min | 4000 | ||
| Z axis rapid traverse | mm/min | 6000 | ||

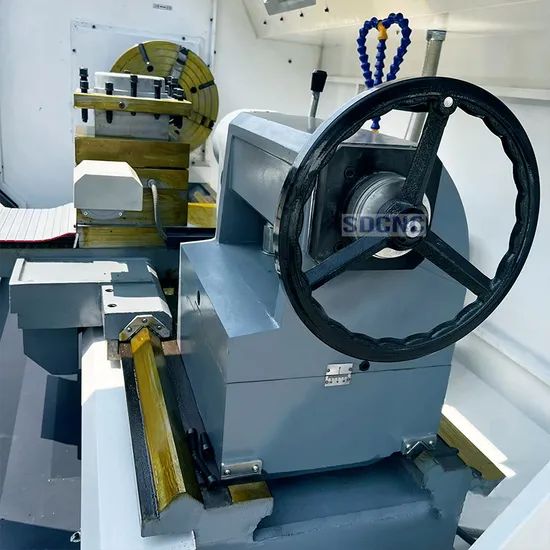

| Tailstock | Tailstock quill diameter | mm | Φ100 | |
| Tailstock quill taper | - | MT5/MT6 | ||
| Tailstock quill travel | mm | 250 | ||
| Motor | Main spindle motor | kW | 11 | |
| Coolant pump motor | kW | 0.25 | ||
| Dimension | Width×Height | mm | 1880×1850 | |
| Length | mm | 3300-8300 | ||
| Weight | Net weight | T | 4.5 | |
