CNC Cutting Roof Truss Roll Former Steel Frame Rolling Machine
1 Piece
$130,0001 Piece
$180,000Product information
High-quality CNC Cutting Roof Truss Roll Former Steel Frame Rolling Machine supplied by Frametec (Xiamen) Building Technology Co., Ltd.. Bulk wholesale pricing ranges from $130,000 to $180,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Specification:
(length)16m x (width) 1.7m x (height) 2.0m
Package Gross Weight:
10000.000kg
Main Motor Power:
14kw, 60Hz, 380V
Thickness:
16-22 Gauge (0.75mm-1.6mm)
Package Size:
1600.00cm * 170.00cm * 200.00cm
Yield Strength:
250-450MPa
Profile Width:
3 " to 7.87" (75mm to 200mm)
Profile Flange:
41mm
Specifications
Specification:
(length)16m x (width) 1.7m x (height) 2.0m
Package Gross Weight:
10000.000kg
Main Motor Power:
14kw, 60Hz, 380V
Thickness:
16-22 Gauge (0.75mm-1.6mm)
Package Size:
1600.00cm * 170.00cm * 200.00cm
Yield Strength:
250-450MPa
Profile Width:
3 " to 7.87" (75mm to 200mm)
Profile Flange:
41mm
Profile Lip:
5/16" to 3/5" (10mm to 15mm)
Production Capacity:
600 Sets/Year
Total Weight:
8,000kgs
HS Code:
8455221000
Size Changing:
Auto Size Changing for Rollers
Automatic Grade:
Automatic
Certification:
CE, ISO9001
Control Type:
CNC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Cutter Material:
Cr12 MOV, Cr12, Cr12(Total Three Blades)
Customized:
Customized
Trade Term:
FOB, EXW, CFR, CIF
Trademark:
FrameTec
Feeding Material:
Galvanized Sheet(Gi), Cold Roll Steel(CRC), Hot RO
Decoiler:
Hydraulic Decoiler
PLC Brand:
Japan Panasonic
Payment Term:
LC, T/T
Blade Replacement:
Manual Blade Replacing
Transport Package:
Naked
Condition:
New
Control System:
PC Control
Model NO.:
SFS-CC75-200T
Punching:
Service Hole, Dimple Hole, Web Notching
Payment Methods:
Support payments in USD
Port Of Loading:
XIAMEN PORT
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-03-08
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
XIAMEN PORT
Certificates:
Qualification
Product descriptions from the supplier
Metal Steel Roll Framing Machine SFS-CC75-200T for 1-5 storey Residential House/Hotel
TECHNICAL PARAMETERS
I. Specifications
| Machine Quick Details | |
| Model number: SFS-CC75-200T | Condition: New |
| Type: LGS machine | Brand Name: Frametec |
| Thickness: 0.75-1.6mm | Control System: PC control |
| Warranty: 1 year | Place of Origin: China |
2) Profile flange: 15/8" (41mm)
3) Profile thickness:16-22 gauge (0.75mm-1.6mm)
4) Material : galvanized coil sheets: ASTM A1003 & ASTM A653
5) Max yield: 250Mpa-550Mpa 80ksi at 1.6 mm (16ga) material thickness.
The range of web size is 3" to 7.87" (75-200mm) ,Each of the size rangewill have related chamfer cut tooling and notch cut tooling. So this machine can be easily exchange punch tools when produce difference size of steel profile.
II. Machine Components
- Hydraulicde-coiler -------------------------------------------------------------------1 set
- Leveling Device ----------------------------------------------------------------------- 1 set
- Pre-punching Device ---------------------------------------------------------------1 set
- Roll Forming System --------------------------------------------------------------- 1set
- Post-punching Device -------------------------------------------------------------- 1 set
- Cutting Device ----------------------------------------------------------------------- 1 set
- PLC Control System ----------------------------------------------------------------- 1 set
- Out-let Table --------------------------------------------------------------------------1 set
The flow chart is showing below.
De-coiler→Leveling Device→Pre-punching Device→Roll Forming System→ Post-punching Device→Cutting Device→Out-let table

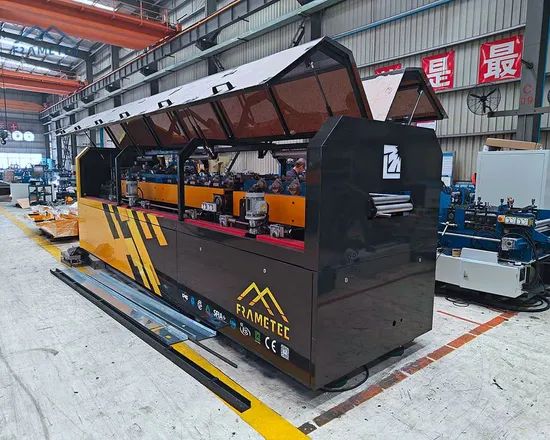

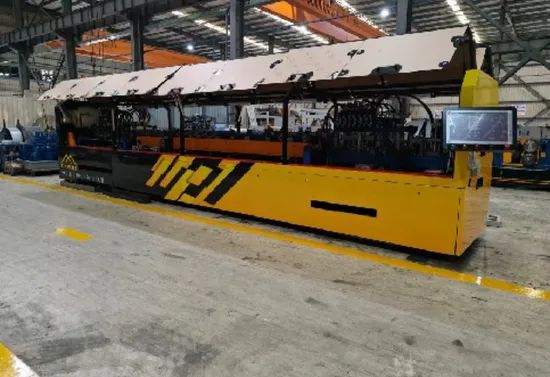

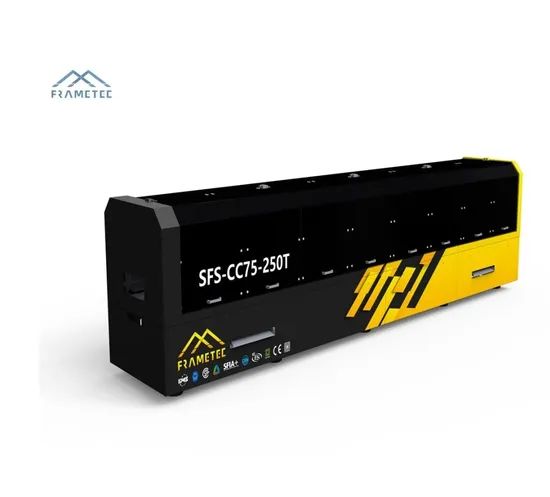

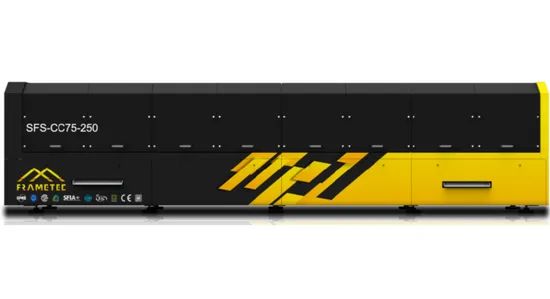

IV.Machine Pictures
V. Technology Parameters
The weight of the Machine: About10Ton
The total dimension with un-coiler, Out-let Table is:
(length)16m x (width) 1.71m x (height) 2m.
The dimension of forming parts: (length)8m x (width) 1.71m x (height) 2m.
1)Hydraulic de-coiler (The hydraulic de-coiler is excluded in this quote)
- De-coiler Type: Hydraulic auto de-coiler
- Weight capacity: Max 5.0T
- Diameter of inner: 480-510mm
- Diameter of outer: 800mm
- Motor power: 3.0Kw,60Hz, 380V(Customized)
- Control type: Electric button control
- Function: Auto rotation feed sheets into roll forming parts. Semi auto for loosening and tightening coil
- Weight of de-coiler: 1000KGS.
- Side Locks provided on de-coiler to fix coil.

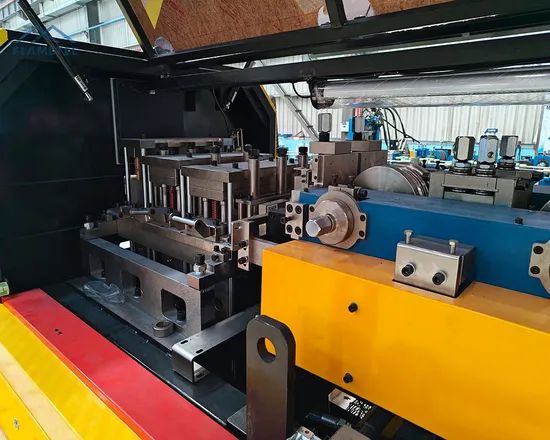

2) Punching
All punching dies are made from Cr12. Driven by hydraulic station. Holes parameter are able to set by PLC, Including Punching length and numbers.
Four leveling devices is used to fasten the raw material. When punching system is on working, the raw material will be fixed tightly by leveling device to ensure the job precision.
- Hydraulic station: 11 kw + fan cooling system
- Driven by servo motor.
- Hole Type:
b.Left flange punching
c.Web triple hole
d.Bolt hole
e.Online-swage
f.Truss cut
h.Web notch
i.Dimple
j.Service hole
k.Lip cut
Pre-punching holes: 1,2,3,4,6,7,9,10
Post-punching holes: 5,6,7,8
1. Punching precision within +/-0.03937'' (+/-0.5mm)
2. After hole punching, raw material will be driven into roll forming system.

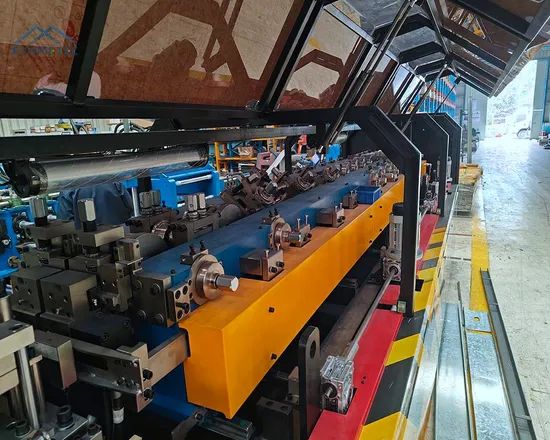

3)Rolling Forming System
- Main motor type: 3 phases
- Main motor power: 14Kw, 60Hz, 380V (suits Australian power requirements)
- Servo motor brand: INNOVANCE
- Speed of forming: 98'/min (30m/min)
- Combine speed: 16.5'-39'/min (5-12m/min depending on No. of holes)
- Roller: 17 groups rollers. Roller Material is Cr12 mould steel being quenched treatment, with digital-controlled procession. This ensure rollers are all on good condition and long life.
- Shaft & Frame: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
4)Changing Size
- Full-automatic (change sizes by PC control system)
- Machine is designed to change profile size within 1 minutes. This type of system is easy to operate. Only need to set the profile specs on the control panel, the roller stands will move in and out automatically.
- Size range: Web: 75-160mm
- Flange:15/8" (41mm)
- Lip: 8 - 16mm
- Size changing motor power: 0.4kw, 380v, 60Hz, totally 5 sets.
5)Hydraulic Cutter
- Cutting material: Cr12 Cr12MoV Cr12(total three blades)
- Hydraulic motor power: 11KW
- Hydraulic Pressure: 16Mpa
6)Out-let Table
4 meter material receiving table, with a stacking platform.
To consider easy for shipment. The components of Out-let Table will be well packaged and will be installed at Buyer's warehouse.
7) Safety Guard:Safety Guard covers the whole machine to ensure worker's safe.
Each parts of safety guard is linked with lock. Safety switch is available to stop machine when safety guard is open.
8) PC control system LG-R1.
- The control system has capacity to program production CNC by inputing Dahe's TXT to CSV format and connect with machine directly. It can control machine auto-running and running status dynamically, including punching, cutting and size changing.
- Manual length/punching program of production
- The computer can control production line including leveling, punching, cutting, conveyer table and roll forming station. Speed of the machine can be adjusted.
- Thechoice production data can be showed on screen.
9) Profile image and application
10) Our Factory
Why Choose us:
13+ years manufacturing experience in hight-quality roll-forming equipment
Competitive price and good quality
One year free warranty
Fast response of after sale service
Can be customized by clients' requirements
Easy operate and easy to maintain
Self-developed of post cutter, one blade to cutter all size of final product
