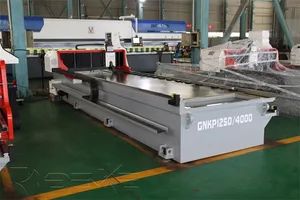

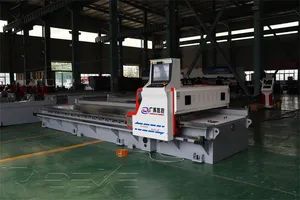

CNC Cutting Sheet Metal Panel Groove Flat Milling Grooving Machine
set
Negotiable
Product information
High-quality CNC Cutting Sheet Metal Panel Groove Flat Milling Grooving Machine supplied by NANJING BEKE CNC MACHINERY CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Processing Precision:
0.01~0.02(mm)
Min Height Of Metal Sheet:
0.5mm
Max Width Of Metal Sheet:
1250mm
Max Height Of Metal Sheet:
4.5mm
Max Length Of Metal Sheet:
4000mm
Main Motor Power:
5.5kw
Production Capacity:
50 Set/Month
Specification:
6100x2300x1700mm
Specifications
Processing Precision:
0.01~0.02(mm)
Min Height Of Metal Sheet:
0.5mm
Max Width Of Metal Sheet:
1250mm
Max Height Of Metal Sheet:
4.5mm
Max Length Of Metal Sheet:
4000mm
Main Motor Power:
5.5kw
Production Capacity:
50 Set/Month
Specification:
6100x2300x1700mm
Pressure Of Hydraulic System:
7-9MPa
Cutting Degree:
75m/Min(Max)
HS Code:
8462490000
Min Distance Between V Groove:
8mm
Trademark:
BEKE
Certification:
CE, ISO 9001
Numerical Control:
CNC/MNC
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF, DDP
CNC Gantry Type Sheet Metal Plate Groovi:
Gnkp 1250/4000
Performance Classification:
High-End CNC Machine Tools
Payment Term:
LC, T/T
Movement Method:
Linear Control
Application:
Metal
Process Usage:
Metal-Cutting CNC Machine Tools
Condition:
New
Control Method:
Open-Loop Control
Transport Package:
Plastic Film
Port Of Loading:
Shanghai, Nanjing, Qingdao
Model NO.:
grooving machine
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-03-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
12
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP
Port Of Loading:
Shanghai, Nanjing, Qingdao
Certificates:
CE
Product descriptions from the supplier
| GNVP Series V grooving machine introduction |
| In ordinary bending processing, a large arc is left at the bend, and the thicker the processed plate, the larger the arc. The existence of large arc angle affects the overall beauty of the product. In order to solve this problem, our company launched a series of CNC sheet metal V-Groove planer products with a new design concept. This series of products have high processing accuracy, easy operation, stable and reliable operation. It is used for V-groove processing on the stainless steel, iron plate, copper and other plates, especially suitable for V-grooving processing before sheet metal bending. |

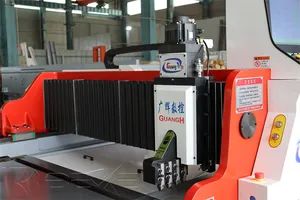

| Japan Abel CNC Control System |
| Very stable and easy operation. Support 4 axis linkage.
Minimum setting unit 0.01mm.
PLC breaking function, fixed scan time 10ms.
Each axis has feedback function for displaying axis position and avoiding allision.
|
| Japan's Mitsubishi servo motor |
| Stable and high accuracy
5.5KW
|
| Tool |
| It can be white steel blade and alloy blade.
For thick sheet we recommend white steel plate.
|
| Taiwan HIWIN or Japan THK guide rail. |
| Brand guide rail guarantees high moving precision. |
| Hydraulic type clamping |
| We call it Y2 axis, moving along with Y1, for quick and easy clamping of metal sheet. |
| Pneumatic blowing system. |
| Automatic air blowing system to blow away the debris on the table |
