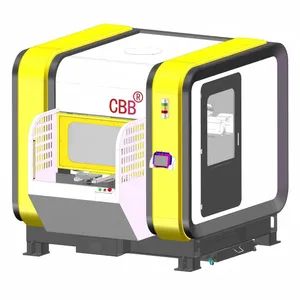

CNC Grinding Machine for Castings
Piece
Negotiable
Product information
High-quality CNC Grinding Machine for Castings supplied by Delin Intelligent Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Power:
18kw
Machine Size:
2251*3101*2301
Package Size:
226.00cm * 311.00cm * 231.00cm
Package Gross Weight:
3001.000kg
Machine Weight:
3001kg
Max.Workpiece Weight:
30kg
Voltage:
380V
Main Grinding Motor:
7.5kw
Specifications
Power:
18kw
Machine Size:
2251*3101*2301
Package Size:
226.00cm * 311.00cm * 231.00cm
Package Gross Weight:
3001.000kg
Machine Weight:
3001kg
Max.Workpiece Weight:
30kg
Voltage:
380V
Main Grinding Motor:
7.5kw
Model NO.:
CJR5
Specification:
CNC
Application:
Cast Iron
Trademark:
Changjiang
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CFR, CIF, EXW
Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Condition:
New
Payment Methods:
Support payments in USD
Transport Package:
Wooden
Port Of Loading:
Xiamen
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-04-21
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Xiamen
Certificates:
Cooperation authorization, Domestic Certificate, Famous Brand, Honest factory, Sanitaryware partner, Technology Enterprise
Product descriptions from the supplier
SONA2024 2.2.1
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Key Structural Components of CNC Grinding Machine for Ferrous Metal Foundry:
Base Frame: Serves as the foundation supporting all mechanical assemblies and operational loads.
Vertical Column Assembly:
Vertical Column Assembly:
Integrated with precision linear guides and ball screw mechanism for Z-axis movement
Components: Shangyin-brand guide rails/screws with NSK bearings

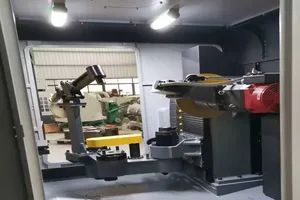

Multi-Axis Robotic Arm:
Components: Shangyin-brand guide rails/screws with NSK bearings
Multi-Axis Robotic Arm:
Three rotational axes (X/Y/C) with high-performance reducers (RV or harmonic type)
Technical specifications:Transmission ratio >120:1
Bi-directional positioning accuracy <2 arcmin
Efficiency >90% with extended service life
Dual-Spindle Grinding Head:
Technical specifications:Transmission ratio >120:1
Bi-directional positioning accuracy <2 arcmin
Efficiency >90% with extended service life
Dual-Spindle Grinding Head:
Large diamond wheel spindle (2000rpm max):Processes external parting lines and major gates/risers
Micro-spindle (24,000rpm max):Handles internal contours and tight radii
Performance metrics:Grinding speed: 3-5 m/min
Repeatability: ±0.1mm
Wheel lifespan: 800+ operating hours
Indexing Workstation:
Micro-spindle (24,000rpm max):Handles internal contours and tight radii
Performance metrics:Grinding speed: 3-5 m/min
Repeatability: ±0.1mm
Wheel lifespan: 800+ operating hours
Indexing Workstation:
Rotary table with pneumatic assist system
Features:Quick-change fixture system (<30s)
Anti-fatigue support for U-axis reducer
Positioning accuracy: 0.01°
Workholding System:
Features:Quick-change fixture system (<30s)
Anti-fatigue support for U-axis reducer
Positioning accuracy: 0.01°
Workholding System:
Lever-actuated clamping mechanism
Holding force: 2-5kN (adjustable)
CNC Control Unit:
Holding force: 2-5kN (adjustable)
CNC Control Unit:
Customized polishing software (Huazhong-based)
Teaching pendant with:Handwheel fine-tuning (0.001mm resolution)
Adaptive path planning algorithms
This configuration ensures high-precision grinding of ferrous castings with cycle time optimization and tool longevity. The modular design allows process flexibility between roughing (large spindle) and finishing (micro-spindle) operations.
Teaching pendant with:Handwheel fine-tuning (0.001mm resolution)
Adaptive path planning algorithms
This configuration ensures high-precision grinding of ferrous castings with cycle time optimization and tool longevity. The modular design allows process flexibility between roughing (large spindle) and finishing (micro-spindle) operations.
Workpiece Processing Cycle:
Manual Loading:
Operator places raw workpiece at the clamping station on the rotary workbench
Start button is pressed to initiate automated cycle
Workpiece Transfer:
Start button is pressed to initiate automated cycle
Workpiece Transfer:
U-axis rotates 180° to position workpiece at robotic arm station
Robotic arm retrieves workpiece using programmed gripping sequence

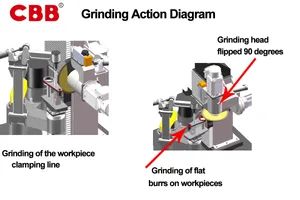

Precision Grinding:
Robotic arm retrieves workpiece using programmed gripping sequence
Precision Grinding:
Arm transports workpiece to grinding wheel station
Automated polishing performed per CNC program parameters
Finished Part Handling:
Automated polishing performed per CNC program parameters
Finished Part Handling:
Robotic arm returns polished workpiece to workbench clamp
Workbench rotates 180° back to operator station
Cycle Continuation:
Workbench rotates 180° back to operator station
Cycle Continuation:
Operator removes finished part
New blank workpiece is loaded
Process repeats with next start command
This closed-loop system enables continuous production with minimal manual intervention, maintaining consistent positioning accuracy (±0.05mm) throughout the transfer and grinding operations. The 180° rotation mechanism optimizes floor space utilization while ensuring ergonomic accessibility for operators.
New blank workpiece is loaded
Process repeats with next start command
This closed-loop system enables continuous production with minimal manual intervention, maintaining consistent positioning accuracy (±0.05mm) throughout the transfer and grinding operations. The 180° rotation mechanism optimizes floor space utilization while ensuring ergonomic accessibility for operators.
Technical Specifications
(Custom configurations available upon request.)
NO. | Item | Parameters | EX400 |
1 | Power | 18KW | 45,000 |
2 | Max.workpiece size | Diameter 500mm, height 300mm | 220 |
3 | Max.workpiece weight | 30KG | 1.8–2.5 |
4 | Machine size | 2250*3100*2300 | 8.8 |
5 | Machine weight | 3000kg | 13.6 |
6 | Diamond wheel size | 12×φ355mm | 600 |
7 | Main grinding motor | 7.5KW | |
8 | Small grinding motor | 3.5KW | |
9 | Rotation angle | 129° |
Drawings
Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
1. Pre-Sale Consultation & Customization
Tailored Solutions: Contact our team to discuss project requirements. We engineer equipment to your exact specifications.
Collaborative Design: Submit technical parameters for custom machine development.
2. After-Sale Support Ecosystem
24/7 Remote Assistance:
Instant troubleshooting via mobile/WeChat/WhatsApp
On-Site Technical Deployment:
Certified engineers provide:
√ Factory installation & calibration
√ Preventive maintenance programs
√ Operator training & process optimization
3. Flexible Payment Security
Deposit: 30% advance via T/T
Balance: 70% payable upon:
√ Pre-shipment quality inspection at our facility, or
√ Verification through detailed component photos
Tailored Solutions: Contact our team to discuss project requirements. We engineer equipment to your exact specifications.
Collaborative Design: Submit technical parameters for custom machine development.
2. After-Sale Support Ecosystem
24/7 Remote Assistance:
Instant troubleshooting via mobile/WeChat/WhatsApp
On-Site Technical Deployment:
Certified engineers provide:
√ Factory installation & calibration
√ Preventive maintenance programs
√ Operator training & process optimization
3. Flexible Payment Security
Deposit: 30% advance via T/T
Balance: 70% payable upon:
√ Pre-shipment quality inspection at our facility, or
√ Verification through detailed component photos
Company Profile
Delin Intelligent Technology Co., Ltd
Fujian Changjiang Industrial Co., Ltd. - Corporate Profile
Founded in February 2007 as a strategic subsidiary ofDelin Intelligent Technology Co., Ltd., we are a certified high-tech enterprise at the forefront of industrial automation innovation. Our core competencies lie in the research, development, and production of advanced robotic systems and CNC intelligent automation solutions for modern manufacturing environments.
Founded in February 2007 as a strategic subsidiary ofDelin Intelligent Technology Co., Ltd., we are a certified high-tech enterprise at the forefront of industrial automation innovation. Our core competencies lie in the research, development, and production of advanced robotic systems and CNC intelligent automation solutions for modern manufacturing environments.
Key differentiators:
Specialized Expertise: Focused R&D in precision motion control and industrial robotics
Technical Leadership: Proprietary technologies in CNC automation equipment
Vertical Integration: Full-cycle capabilities from conceptual design to production implementation
Technical Leadership: Proprietary technologies in CNC automation equipment
Vertical Integration: Full-cycle capabilities from conceptual design to production implementation
Why Choose Us?
Other Products
Self-developed & Self-produced with Rigorous Quality Control
Full-process Autonomy: Independent R&D and in-house production with zero outsourcing
Premium Components: Core parts sourced from globally renowned brands
Quality Assurance: Stringent quality management throughout manufacturing
Premium Components: Core parts sourced from globally renowned brands
Quality Assurance: Stringent quality management throughout manufacturing
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Molding machine, Low pressure casting machine, Gravity die casting machine, furnace, ( Automatic) core shooting machine, Mix sand machine, ( CNC ) Drillling and Tapping machine, Auto-polishing machine, Abrator, etc...
