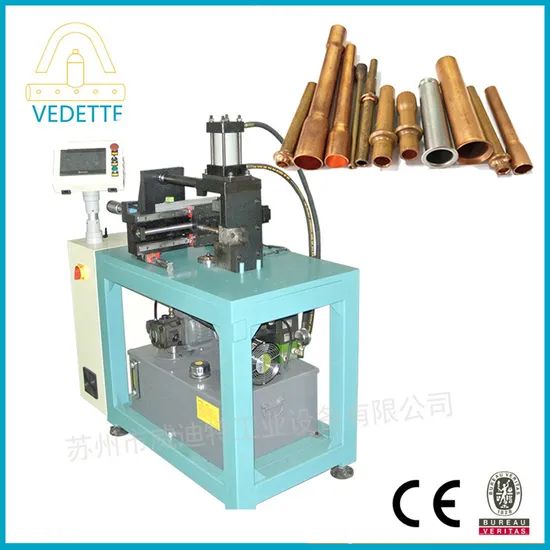

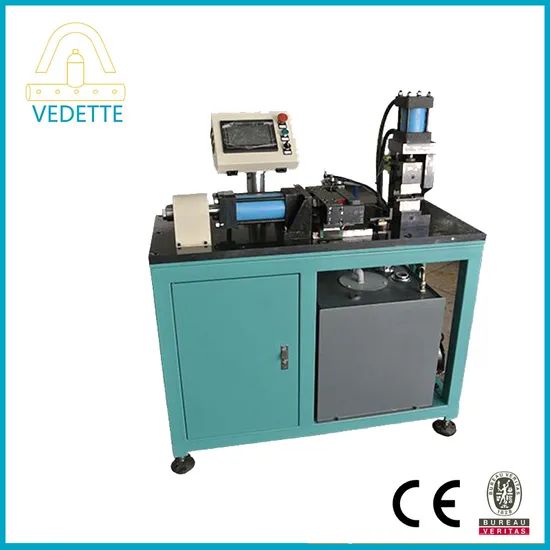

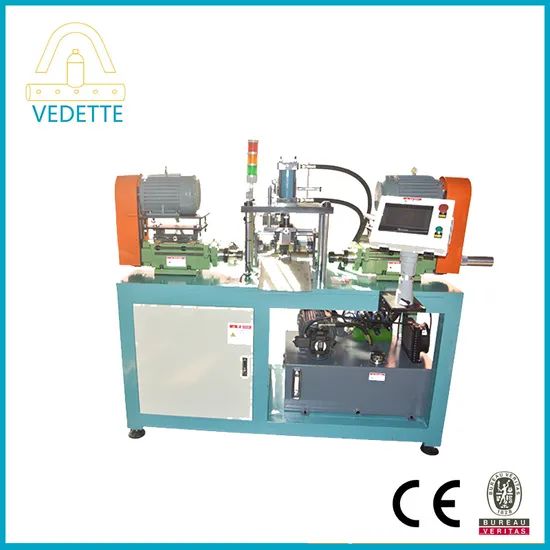

CNC Metal Copper Pipe Tube End Forming Process Machine Origin China Trademark VEDETTE HS Code 8501109101 Model NO.
Set
Negotiable
Product information
High-quality CNC Metal Copper Pipe Tube End Forming Process Machine Origin China Trademark VEDETTE HS Code 8501109101 Model NO. supplied by Suzhou Vedette Industrial Equipment Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
2300mmx1000mmx1500mm
Production Capacity:
300 Sets One Year
HS Code:
8501109101
Origin:
China
Spinning Deformation Condition:
Cold Spinning
Metal Material:
Copper
Finished Product Shape:
Cylinder Shape
Spinning Wheel Number:
Double
Specifications
Specification:
2300mmx1000mmx1500mm
Production Capacity:
300 Sets One Year
HS Code:
8501109101
Origin:
China
Spinning Deformation Condition:
Cold Spinning
Metal Material:
Copper
Finished Product Shape:
Cylinder Shape
Spinning Wheel Number:
Double
Trade Term:
FOB, CFR, CIF, EXW
Spinning Direction:
Forward
Pressure Supply Type:
Hydraulic Pressure
Payment Term:
LC, T/T
Riveting Principle:
Orbital Models (BM Series)
Finished Product:
Pipe
Spinning Belt Wheel Type:
Rolling V Type Belt Wheel
Port Of Loading:
Shanghai Port
Model NO.:
VDT-SP-001
Trademark:
VEDETTE
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-07-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
21
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Shanghai Port
Certificates:
Others, CE
Product descriptions from the supplier
CNC Metal Copper Pipe Tube End Forming Process Machine
PRODUCT NAME:
CNC Spinning Machine
PRODUCT INTRODUCTION:
This equipment is used for metal pipe end shrinking. It is mainly applied to the machining of air-condition, water heater,refrigerator and automobile's liquid storing wares, desiccant bottles as well ..This machine can make pipe with small diameter, thin wall,suitable for pipe with small shape variable. Can make pipe very quickly.
PRODUCT AND PIPE PHOTOES
Factroy Introduction:
Our services:

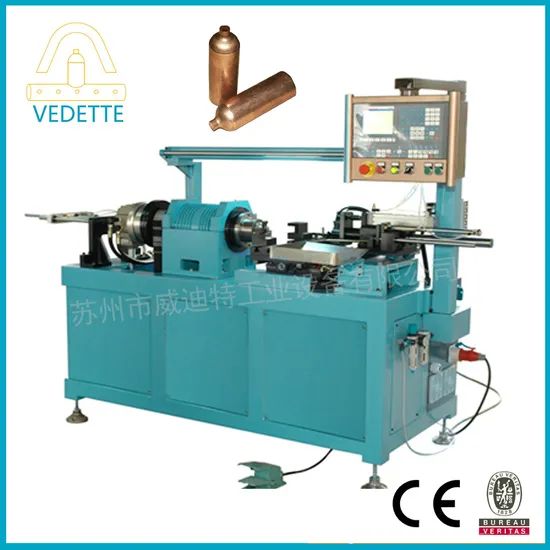

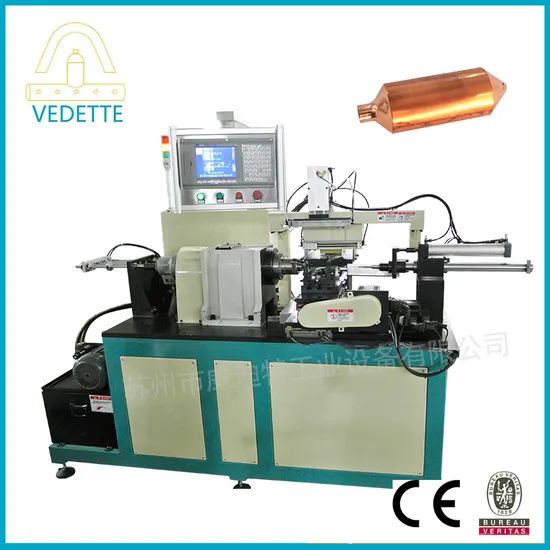

Three-claw Spinning Machine
PRODUCT NAME:
CNC Spinning Machine
PRODUCT INTRODUCTION:
This equipment is used for metal pipe end shrinking. It is mainly applied to the machining of air-condition, water heater,refrigerator and automobile's liquid storing wares, desiccant bottles as well ..This machine can make pipe with small diameter, thin wall,suitable for pipe with small shape variable. Can make pipe very quickly.
Product Features:
1.Two axes CNC system centralized control
2.Hydraulic pressure oil box adopts natural cooling
3.2800 round high-speed main axis
4.Unload material automatically
PRODUCT AND PIPE PHOTOES
Technical Data:
|
Max tube O.D. |
80mm |
|
Min tube O.D |
12mm |
|
Max wall thickness |
1.5mm |
|
Work position |
1 |
|
Processing time(single end) |
5-30 sec |
|
Electrical control |
CNC |
|
Operation mode |
Auto/manual |
|
Loading mode |
Manual and auto combined |
|
Precision of 2 ends after processed |
0.1mm |
|
Clamping mode |
Hydraulic air cylinder rotary cylinder |
|
Processing mode |
Rotating cold rolling |
|
Spindle motor |
3 KW |
|
X axis travel |
200mm |
|
X axis positioning precision |
0.05 |
|
X axis speed |
300 mm/S |
|
Z-axis travel |
100mm |
|
Z-axis positioning precision |
0.05 |
|
Z-axis speed |
150 mm/S |
|
Power |
3 phrases 380V 50HZ |
|
Hydraulic motor power |
0.75KW |
|
Hydraulic system pressure |
5Mpa |
Tube End Forming Machine

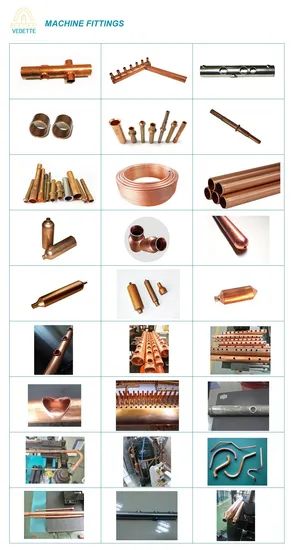

Our tube end forming machines can be purchased with the following copper tube types
Factroy Tours :
Factroy Introduction:
Established in 2011, Suzhou VEDETTE Industrial Equipment Co., Ltd. is a professional factory producing metal pipe forming machine , include CNC copper and stainless steell pipe punching machine, pipe spinning machine, punching flanging machine, pipe end processing machine, non¬chip open feeder, bending machine , as well as copper and stainless steel fitting.
Now VEDETTE owns factory area about 2000 square meters and 30 workers, includes professional staffs specializing in mechanical and electrical integration control, computer software, three-dimensional structure design and digit control technology.t has strong technical ability in design, development, production, sales. Besides, it also has good production capacity and prefect after-sales service system.
"VEDETTE" 's main products includes metal pipe punching machines, pipe spinning machines, pipe end forming machines,CNC automatic pipe cutting machines , pipe bending machines etc. Since it established , it has cooperated with many domestic customers such as CRRC ,
DUNAN,SANHUA,GREE, LUVATA,SUNRAIN and expand overseas market in South African, Germany,Indonesia, Vietnam and Korea.Through many years development,we have improved quality and technology greatly. Also , we have developed a series of different models of product,win high reputation.we can provide different kind of machines according to customer need,provide pre-sale and after-sale service,not only provide good quality product,but also provide technical training to customers. And provide professional technical for maintenance and after-sales service, as well as product software upgrades free of charge.
Innovation and cooperation are the long-term policy of "VEDETTE", Based on idea " quality first, service first , price second",,VEDETTE will create the best products and provide the most satisfactory services,.we sincerely hope to become your faithful friends and partners!
Packing and Delivery:
| Our machine is delivered within 15-20 days after the deposit confirmed. |
| The machine is usually packed in a professional exported case by shipping way. |
Our services:
| Before-sales service: |
| 1,We will help our customer confirm the right model according to the offered pipe inforamtion. |
| 2,You are very welcome to visit our factory to see our machine how to work before you place an order with us. |
| After-sales service: |
| 1,Free installation,trial start and adjustment,training. |
| 2,We guarantee machine quality for one year.During this year,if spare parts of the machine we damaged,we can send the components to the customer by DHL,TNT for free. |
| 3,If customer have any question about operation when using our machine,we will reply you by email/telephone/other online chat tool within 24 hours. |
