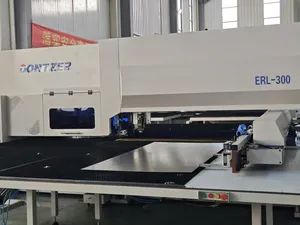

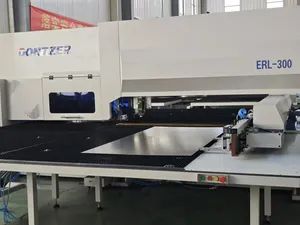

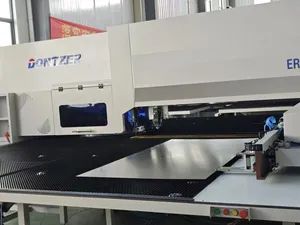

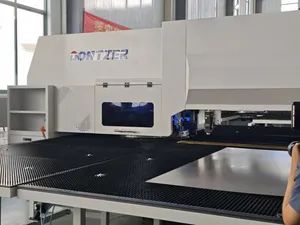

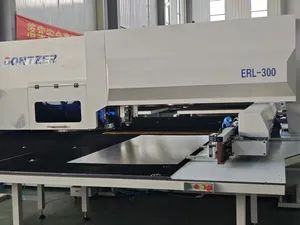

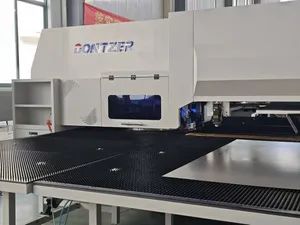

CNC Punch Press/ CNC Punching Machine with Laser Marking Function
Piece
Negotiable
Product information
High-quality CNC Punch Press/ CNC Punching Machine with Laser Marking Function supplied by Qingdao Dongze Numerical Control Technology Co., LTD. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Package Size:
1203.00cm * 235.00cm * 239.00cm
Package Gross Weight:
17000.000kg
Punch Stamping Frequency:
1800 Hpm
Production Capacity:
200 Sets/Year
Loading:
20ot, 40gp Container
Max. Processing Sheet:
2500* 1500 mm
Punch Force:
30 kN
Workstation:
32
Specifications
Package Size:
1203.00cm * 235.00cm * 239.00cm
Package Gross Weight:
17000.000kg
Punch Stamping Frequency:
1800 Hpm
Production Capacity:
200 Sets/Year
Loading:
20ot, 40gp Container
Max. Processing Sheet:
2500* 1500 mm
Punch Force:
30 kN
Workstation:
32
Stamping Stroke:
40mm
Number Of Control Axes:
5
Specification:
5500*5200*2280 MM
Max. Processing Sheet Thickness:
6.35 mm
HS Code:
8462111000
Max. Punch Diameter:
88.9 mm
Color:
Blue, or Customized
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Laser Technology:
Composite Cutting Process
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Technical Class:
Continuous Wave Laser
Structure Type:
Desktop
Trademark:
Dontzer
Model NO.:
ERL-300
Trade Term:
FOB
Package:
Foam and Plastic Film, Customized
Laser Classification:
Gaseous Laser
Application:
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Linear Guide And Ball Screw System:
Japan NSK/ Tsubaki, Taiwan Hiwin/Tbi
Applicable Material:
Metal
Transport Package:
Pallet, Foam and Plastic Film
Servo Unit:
Panasonic, Synmot, Sano
Port Of Loading:
Qingdao Port
Servo System:
Rexroth
Payment Methods:
Support payments in USD
Payment Term:
T/T
Cooling System:
Water Cooling
Accuracy:
±0.1 mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2025
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB
Port Of Loading:
Qingdao Port
Certificates:
CE Certificate, certificate, INVENTION PATENTS, patent
Product descriptions from the supplier
The optional automatic tapping function can achieve punching, forming, scribing, lettering, rib rolling, laser cutting, and tapping.
It can provide a new intelligent manufacturing solution for your production. This composite machine includes a punch press mainframe, laser cutting system, and electrical components. The composite machine adopts a full German Rexroth CNC system, motor, and drive.
* Steel plate frame
* Tempering fireplace
* One-step clamping
* Tempering fireplace
* One-step clamping
* Thick rotating tower
* Extending mold life
* High accuracy
* Extending mold life
* High accuracy
* International standard 85 series mould
* High surface hardness
* Strong anti-abrasion
* High surface hardness
* Strong anti-abrasion
* Tempering clamp slide
* Blackening of clamp surface
* Installing scales
* Blackening of clamp surface
* Installing scales
*The special fibre laser cutting head, with stable and reliable performance, ensures the best cutting quality and achieves high cutting speed.
*Non-contact capacitive sensor to ensure stable cutting follower gap, ensuring a very good cutting effect.
*Non-contact capacitive sensor to ensure stable cutting follower gap, ensuring a very good cutting effect.
| NO. | Specification/Model | quantity | Remarks | |
| CNC punching and cutting compound machine | ERL300 | 1 | ¨28¨32 workstations | |
| Laser cutting systems | systems | Rexroth Indraworks | 1 | |
| lasers | Chuangxin Maxphotonics-1500W/3000W | 1 | ||
| cutting head | Ka Keung Empower BM110 | 211 | ||
| chiller | Hanli HL-3000 | 1 | ||
| air compressor | 11kw | 1 | optional | |
| Unloading device | Custom sizes | 1 | optional | |
CNC Punch Press Parameters:
| NO. | Name | parameter | unit | Remarks | |
| 1 | punch force | 300 (30) | KN (T) | Optional 400 (40) | |
| 2 | machine structure | "O" closed type | Fireplace Tempering | ||
| 3 | Maximum sheet size | X-axis2500 | mm | X-axissecondary positioning5000mm | |
| Y-axis¨1250¨1500 | mm | ||||
| 4 | Maximum plate thickness | 6.35 | mm | ||
| 5 | Maximum diameter of one punch | Φ88.9 | mm | Non-standardcustomisation | |
| 6 | Punching frequency | 2300 | hpm | ||
| 7 | Maximum punching frequency (6mm stroke in 1mm steps) | 900 | hpm | ||
| 8 | Maximum punching frequency (6mm stroke in 25mm steps) | 400 | hpm | ||
| 10 | Mould form | Long guide 85 series international standard mould | |||
| 11 | Turret station distribution ¨28¨32 workstations |
¨12A, 10B, 4C, 2D (2B,2CAuto-index) ¨16A, 11B, 3C, 2D (1B,1C Auto-index) |
standard equipment | Non-standardcustomisation | |
| 12 | Number of clamps | 3 | PCS | ||
| 13 | Repositioning cylinders | 2 | SET | ||
| 14 | Number of control axes | 6/7 | PCS | Non-standardcustomised Y-axis cutting head movement | |
| 15 | Maximum speed of plate movement | 106 | m/min | ||
| 16 | Table structure | Brush/Universal Steel Ball Composite Countertop | |||
| 17 |
Maximum feed speed | X-axis | 90 | m/min | |
| Y-axis | 80 | m/min | |||
| X, Y linkage | 110 | m/min | |||
| 18 | Turret speed | 30 | rpm | ||
| 19 | Machining precision | ±0.10 | mm | ||
| 20 | Maximum load capacity | 156 | Kg | ||
| 21 | Clamp Blind Zone Detection | √ | |||
| 22 | Alarm device for loose clamp plates | optional | |||
| 23 | Anti-Warping Test for Panels | √ | |||
| 24 | air pressure | 0.6 | MPa | ||
| 25 | power supply | 380±5% | V | ||
| 26 | Weight | ¨15¨17 | T | ||
| 27 | Overall dimensions (L x W x H) |
¨5200¨5500x5200x2280 | mm | Bed colours available in red and white or custom colours | |
1. How about the delivery time?
Generally, it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose a suitable machine?
Please advise us on the material/ thickness/ dimension of the metal sheet, and the punched drawing.
