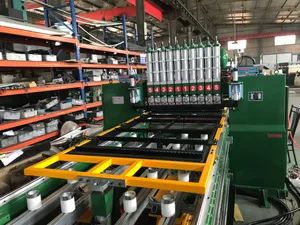

CNC Wire Mesh Rack Welder Mesh Welding Equipment Welding Machine

Features:
- This machine is multi head type structure, can weld multi-spot for one time.
- Control system: Microcomputer control, can store 15 sets welding schedule which can be adjust independently, very easy to achieve one or more electrode welding parameters independently djusted so as to achieve welding requirements for different sizes, different shapes products.
- Users can set by himself action sequence, number and welding schedule of cylinder, to achieve the welding requirements on different products.
- Large screen display intuitive and clear.
- Data set and adjusted by touch switch, easy and fast.
- Machine body of thick steel sheet, not easy to deformation, good rigidity.
- Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core not aluminum, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
- Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
- Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
- Our machining equipment is more advance, fine workmanship, so welding machine's precision is higher.
- Lower loose weld rate, less welding dregs.
- It is easy to operate machine. Performance of machine is more steady, can be used 24 hours, lifetime 15 years.
- Electrode: With CuCrZr materials, very anti-friction. By means of water cooling, longer service life.
- Compressed air system: Equipment is installed air processor which is used for clean the compressed air, and with muffler to reduce the noise. Also it is with compressed air tank to stabilize the air pressure.
- Cooling water system: There are transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling. It come true the water distribution by flowmeter. Each flowmeter can be adjusted individually to make machine working normal, without damages

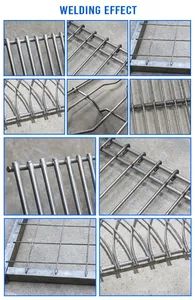

Be widely used in wire mesh, storage rack, protecting fence etc.

When you need this kind of machine, please kind send your wire mesh drawing first clearly showing:
1. wire diameter;
2. the distance between lines;
3. the total length and width of the wire mesh;
4. production capacity;
5. cost budget.

Then we can custom design and manufacture for you based on your requirements. Also we will give our suggestions base on our experience.
FEATURES
1.Automatic dual-layer machine interchanges feeding and welding simultaneously
2.Configuration allows you to change fixtures quickly and easily
3.Perfect for high volume production environments
4.Customization available to suit your application
5.Microprocessor-based welding control with touch-screen interface makes programming simple
6.xinsheng Service First Policy guarantees superior quality and value backed by xinsheng machinery

Single head long arm type welding

The equipment adopts single head long arm type welding structure, can be customized according to the needs of the workpiece double row or multi-row welding head.

X.Y axis moving device

Equipped with automatic movement of the workpiece mold along X and Y axes, only manual swinging and removal of the workpiece is required.

Special product moldselding platform

Processing and production according to the size of each mesh product.

Welcome to Ningbo Xinsheng Intelligent Equipment Co., Ltd.

Located in the picturesque coastal city of Ningbo, Zhejiang, our company is nestled in the southern wing of the Yangtze River Delta. With its superior geographical location, beautiful environment, and excellent transportation, our company is dedicated to providing you with top-notch resistance welding equipment, medium frequency series welding machines, and welding automation specialized machines.

With over a decade of experience in developing and manufacturing complete sets of equipment, we have accumulated and incorporated advanced technologies and processes from both domestic and international sources. Our team of skilled resistance welding engineering technicians is well-equipped to meet your welding needs, ensuring that we deliver high-quality and affordable welding equipment along with exceptional after-sales service.

Our products find wide applications in various industries, including home appliance hardware manufacturing, automotive and accessory manufacturing, sheet metal manufacturing, solar energy, and electric water heater manufacturing. Upholding our corporate philosophy of "working together and developing together," we strive to provide you with advanced, applicable, high-quality, and reliable welding technology solutions. Our commitment to integrity, quality, and efficiency ensures that we grow together with you. We warmly welcome both new and returning customers to engage in fruitful negotiations with us!

Ningbo Xinsheng Intelligent Equipment Co., Ltd

Product Description

Q1: What is the price of your machine?

Answer:Our machines are customized for your requirements. To provide you with the appropriate price, please provide us with the following information:

• The material and thickness of your product
• The minimum and maximum size of your product
• The welding position of your products
• The automation level that you want to achieve
• It would be better if you can provide us with the detailed product drawings so our engineer can come up with a suitable technical proposal and price for you.

Q2: What is the warranty period of your machine?

Answer:Our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be an extra cost.

Q3: What if my machine gets damaged during the warranty period?

Answer:Firstly, our engineer will help you diagnose the problem via online guidance. If any parts get damaged during the warranty period, we will send the parts to you for replacement free of charge. If you cannot fix the problem by replacing the new parts, we will send an engineer to your factory to help fix the machine.

Q4: What is the delivery time of your machine?

Answer:It depends on the complexity of your machine. Most of our standard machines are in stock, so we can ship the machine within seven days after receiving your payment. If you need a customized machine, it would normally take about 30-90 days to complete the machine.

Q5: Can we send the sample to you for welding test?

Answer:Yes, you can send us the samples for welding test. We will send you pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality yourself before ordering the machine.

Q6: Can you provide us with the machine drawings and technical proposal?

Answer:Yes, after receiving your detailed requirements and product drawings, our engineer will come up with a suitable technical proposal with the basic machine concept drawings for you. After you place the order, we will send you more detailed design drawings of the machine for confirmation. Only after you confirm the drawings, we will start the manufacturing process.

Q7: What's your payment terms?

Answer:We can accept the following payment terms: T/T, L/C, Western Union.

Q8: How can we install the machine?

Answer:For some simple machines, we will provide you with the English operation manual, operation video, and online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send an engineer to your country to help with installation and training. However, there will be an extra cost for the engineer, including the salary, visa cost, round-trip ticket cost, and accommodation fee, which will be covered by the buyer.
