CS-Ss Threaded Flanges Stainless Steel RF FF FM-M Tg Rj 1/2-48 DN15-1200 ASME ANSI GOST BS JIS 150-2500 1Y
Pieces
Negotiable
Product information
High-quality CS-Ss Threaded Flanges Stainless Steel RF FF FM-M Tg Rj 1/2-48 DN15-1200 ASME ANSI GOST BS JIS 150-2500 1Y supplied by 3S International Company Limited. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Flange Size:
1/2' ' (DN15) to 48' ' (DN1200)
Production Capacity:
300000 Tons Per Year
HS Code:
73079100
Specification:
ASME/ ANSI, , DIN, GOST, BS, AS, JIS, JPI ect.
Flange Standard:
ASME/ ANSI, ,GOST,BS,as,JIS,etc
Flange Connection:
Butt Weld & Socket Weld & Thread
Flange Type:
CS/Ss Threaded Flanges
Flange Pressure:
Class 150--Class 2500
Specifications
Flange Size:
1/2' ' (DN15) to 48' ' (DN1200)
Production Capacity:
300000 Tons Per Year
HS Code:
73079100
Specification:
ASME/ ANSI, , DIN, GOST, BS, AS, JIS, JPI ect.
Flange Standard:
ASME/ ANSI, ,GOST,BS,as,JIS,etc
Flange Connection:
Butt Weld & Socket Weld & Thread
Flange Type:
CS/Ss Threaded Flanges
Flange Pressure:
Class 150--Class 2500
Trade Term:
FOB, EXW, CFR, CIF
Structure:
Flanges
Manufacturing Way:
Forging
Origin:
Jiangsu China
Payment Term:
LC, T/T, PayPal, Western Union
Trademark:
NJP
Flange Facing:
RF, FF, FM-M, T-G, Rj
Sealing Surface:
RF, FF, FM-M, Tg, Rj, etc.
Connection:
Screws
Port Of Loading:
Shanghai
Material:
Stainless Steel
Flange Material:
Stainless Steel, Carbon Steel, Aolly Steel
Transport Package:
Standard Exporting Package
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-06-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Shanghai
Certificates:
3S AUDITED SUPPLIES, AUDITED SUPPLIES, Certificate of Utility Model Patent, ISO Certicates
Product descriptions from the supplier
CS/SS Threaded Flanges (YZF-F207)
Types' Specification
Welding neck
1, Preferred for high-pressure, subzero or elevated temperature
2, Hub is tapered and bored to match pipe's inside diameter so flow is not restricted, preventing turbulence and reducing erosion
3, Easily radiographed and provides excellent stress distribution
Slip-on
1, Not normally used in high-stress applications due to low hub and weld attachment
2, Silps over outside of pipe
3, Inside of flange welded at hub and end of pipe
Lap joint
1, Used where bolt alignment or access for cleaning is required
2, Similar to slip-on flange when used with lap joint stub end
3, Radius at intersection of flange face and bore to match lap joint stub end
Threaded
1, Used where welding would would be hazardous
2, Designed for low-pressure and non-cyclic applications
3, Bore is threaded to match pipe thread
4, Tapered to seal pipe and flanges
Socket welding
1, For small-diameter chemical processes, hydraulic and stream distribution lines
2, Similar to slip-on flange
3, Counter bore matches pipe bore, allowing unrestricted flow
4, Counter bore from hub side fits pipe's outer diameter - can insert pipe in socket with fillet weld at hub
Blind
1, Used to close ends of piping
2, Has no bore
3, Permits access to sealed lines
Other flanges
Orifice, Expander, Reducing, Lightweight, Studding Outlets, Long Weld Necks,Metric, Navy Drawings, Customer Drawings

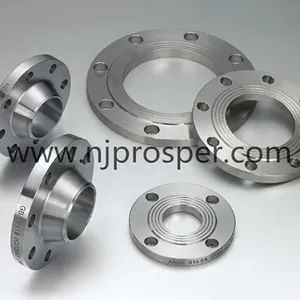

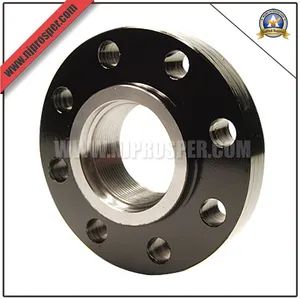

Product Pictures:
Our Advantages:
1.Professional manufactory.
2.Trial orders are acceptable.
3.Flexible and convenient logistic service.
4.Competitive price.
5.100% testing,ensuring the mechanical properties
6.Professional testing.
FAQ:
Q: Is the price of your products lower than others?
A: We can not promise you the lowest price,because the best quality is what we pursue firstly.
Q: Can you provide us with some samples for testing?
A: Of course, we can offer you samples. You only need to bear the freight and samples' charge can be negotiated.
Q: How about your service?
A: We have pre-sale service, in-sale service and after-sale service and you can know about them in our service.
| Size | 1/2' ' (DN15) to 48' ' (DN1200) |
| Standard | ANSI, , DIN, GOST, BS, AS, JIS, JPI |
| Material | Carbon Steel: A105(N) C22.8 ST-37.2 S400 S440 SQ235(CS20#) A106B A53 Q345 Stainless Steel: 304, 304L, 316, 316L, A350 LF2, 321, 347, 347H Alloy Steel: ASTM A182 F1, F5a, F9, F11, F12, F22, F91 |
| Pressure | Class150, 300, 600, 900 1500 and 2500 PN6, PN10, PN16, PN25, PN40 and PN64 JIS 5K, 10K, 16K and 20K |
| Type | Slip-On, Welding Neck, Blind, Socket Welding, Threaded, Lap Joint , Plate, etc |
| Facing | RF, FF, FM-M, T-G, RJ |
| Finish | Transparent oil, rust-proof oil, hot galvanizing |
| Connection | Butt Weld & Socket Weld & Thread |
| Marking | standard or as customer' s need |
| Inspection | in-house or the third party |
| Application | chemical industry, petroleum industry, construction industry, and so on |
| Delivery Time | usually within 25-30 days after we have confirmed your order |
| MOQ | 10 pieces |
| Packing | wooden cases or wooden pallets or as per customer' s requirement |
| Productivity | 300000 tons per year |
