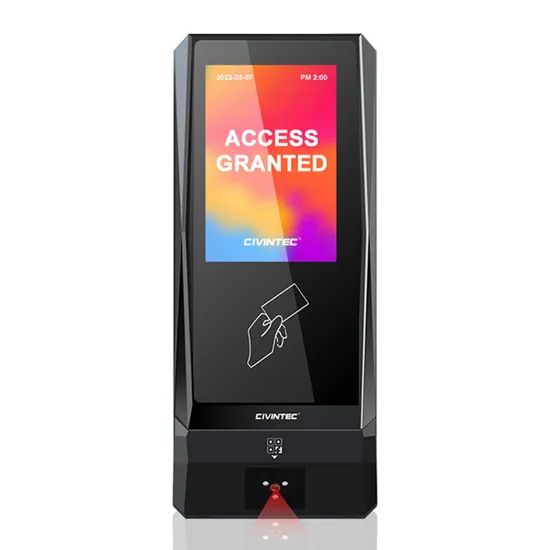

CT5 Touch Screen Keypad Wiegand RFID Qr Code Reader Access Control Scanning for Door Outdoor
1 Piece
$0.021 Piece
$0.01Product information
High-quality CT5 Touch Screen Keypad Wiegand RFID Qr Code Reader Access Control Scanning for Door Outdoor supplied by CiVinTec Global Co., Limited. Bulk wholesale pricing ranges from $0.01 to $0.02 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Reading Distance:
1-10cm
Production Capacity:
1000PCS/Month
Power:
12-30 VDC
Identification:
125kHz 13.56MHz RFID
Display:
3.5 Inches Touch Screen
Product:
Access Control Reader
Certification:
CE, FCC
Trademark:
CIVINTEC
Specifications
Reading Distance:
1-10cm
Production Capacity:
1000PCS/Month
Power:
12-30 VDC
Identification:
125kHz 13.56MHz RFID
Display:
3.5 Inches Touch Screen
Product:
Access Control Reader
Certification:
CE, FCC
Trademark:
CIVINTEC
Model NO.:
CT5 QR
Origin:
China
Trade Term:
EXW
Sam:
ISO7816 Sam Slot, MIFARE Sam AV2
Specification:
L=258mm, H=65mm, W=142mm
RFID:
MIFARE, DESFire EV1/EV2/EV3, Em
Mobile ID:
NFC, BLE
Application:
Parking, Hospital, Library, Company, Bank, Store
Interface:
Serial Port, RS485 Osdp, Wiegand
Payment Term:
T/T, PayPal, Western Union, Money Gram
Keypad:
Touch Pincode
IP Protection:
Waterproof Outdoor Use, UV Resistance
Transport Package:
Well Package
Communication Interfaces:
Wiegand, Osdp, RS485
Tamper Alarm:
Yes
Port Of Loading:
shenzhen
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-03-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
26
Preferred Payment Term:
T/T, PayPal, Western Union, Money Gram
Preferred Trade Term:
EXW
Port Of Loading:
shenzhen
Certificates:
Others, RoHS, CE
Product descriptions from the supplier
3.5" Touch Screen OSDP Wiegand Access Control Reader
CRYSTAL TOUCH provides a multiple platform of RFID technologies and communication interfaces equipped with an 3.5" touch screen in a timeless design. For access control systems supporting OSDP secure channel, In additional to traditional radio frequency technologies such as 13.56MHz Mifare®, DESFire® EV1/EV2/EV3 and 125KHz also BLE 5.0 and SAM AV2 are supported. This combination makes the product flexible for all kind of security applications and future technology requirements applicable for the security industry. The touch screen indicates in combination with display text and buzzer sounds a userfriendly and clear information in real time for the user. CRYSTAL TOUCH is with complete reader functionality and multiple & secure communication choices to work with the most of brand controllers on the market. It's with rough and elegant design for both indoor and outdoor applications,optimally designed.
| Model | CT5 |
| Display | 3.5" capacitive touch screen |
| ISO-protocol | 125KHz & Pro, 13.56MHz ISO14443A/B, NFC |
| Contactless cards |
EM 125KHz, 13.56MHz Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, NFC tags (T2T, T4T) |
| Contact smart card | ISO7816(T=0,T=1) 1 SAM module, more on request |
| Communication interface | BLE, Wiegand, RS485 protocol OSDP 1&2, customizing protocol on request |
| Power Supply | 9-30VDC |
| Indicator | Controllable buzzer and TP display, speaker with controllable volume |
| I/O Port | 2*I/O Port, 1* tamper alarm switch |
| Installation | Terminal block connector |

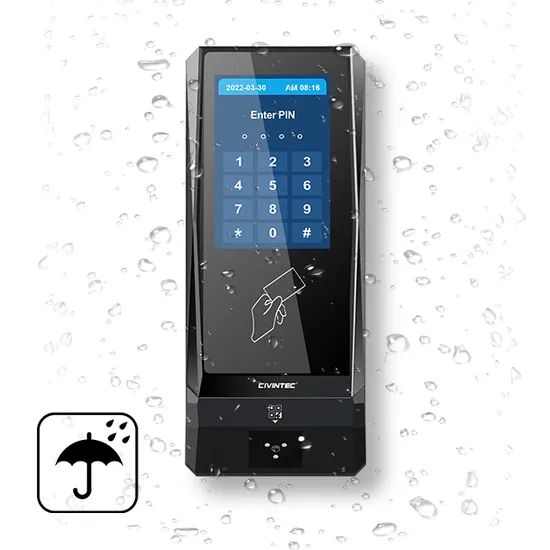

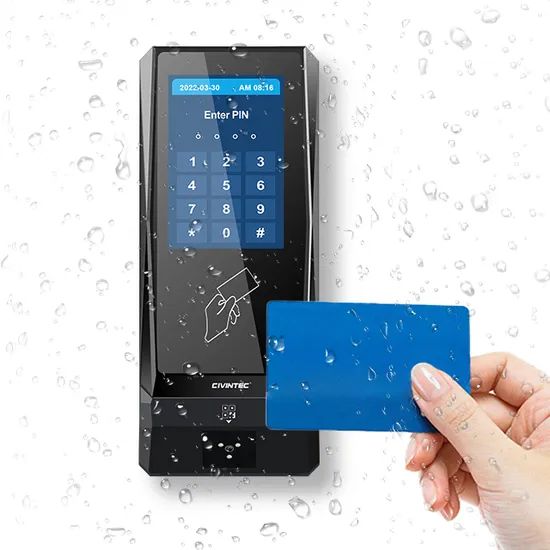

| IP protection | IP65, UV resistance |
| Operation Temperature | -20 ~ +60°C |
| Operation Humidity | 0-90% relative humidity non-condensing |
| Certification | CE approved |

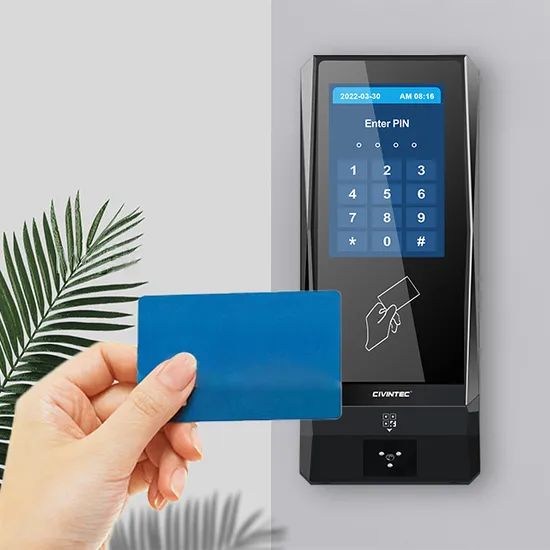

RFID Smart Card Identification
CT5 support full range of RFID proximity card in read write from 125KHz EM card to 13.56MHz NFC tag, Mifare, DESFire EV1/EV2/EV3, Mifare Plus etc.

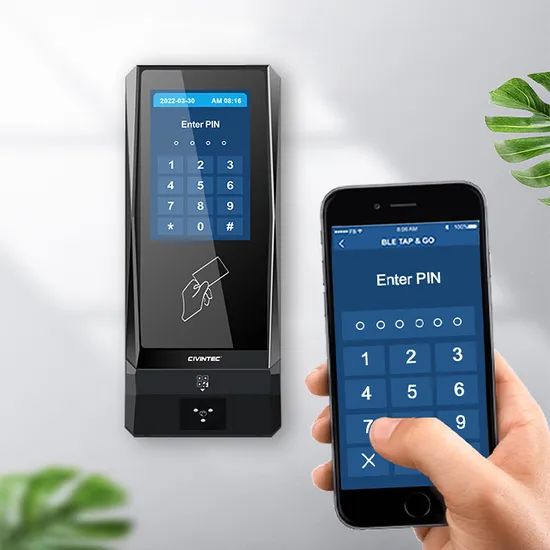

Mobile Credential Identification
CT5 offer NO TOUCH access control solution by using personal mobile phone as access credential via BLE and NFC for touchless access control.

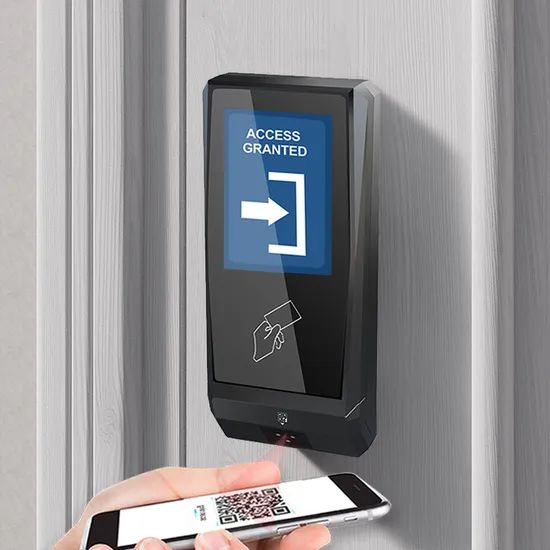

Embedded QR Code Scanner
CT5 supports optional embedded QR code scanner for touchless access control.
Secure Access Module Protection
Wiegand & RS485 Communication Interface
CT5 family readers has been well tested and work with the most brands of controllers on the market via wiegand, Clock/Data, RS485 OSDP1, OSDP 2 including secure channel. Offer Universal compatibility to work with the third party access controller.
Customized UI Interface with TEXT
Programmable 3.5" Touch Screen to customize image with TEXT controlled by server software.
Easy Configuration
CONFIG SOFTWARE TOOL & CONFIG CARD make users easily manage encrypted key, reader configuration and functional test.
Civintec is leading designer and manufacturer of access control device, we offer ODM customization on both hardware, reader housing, firmware and software design service.
