Ca1530 Single Axis Auto Feeding Wood CNC Lathe for Baseball Bats
SET
Negotiable
Product information
High-quality Ca1530 Single Axis Auto Feeding Wood CNC Lathe for Baseball Bats supplied by Jinan Camel CNC Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Setting Mode:
/
Working Accyracy:
0.01mm
Delivery Time:
10-15 Workinbg Days
Specification:
1500KG
Max Length:
1500mm(Can Customize 2500mm))
Max Feed Rate:
2000mm/Min
Max Diameter:
300mm/160mm/120mm
Voltage:
380V
Specifications
Setting Mode:
/
Working Accyracy:
0.01mm
Delivery Time:
10-15 Workinbg Days
Specification:
1500KG
Max Length:
1500mm(Can Customize 2500mm))
Max Feed Rate:
2000mm/Min
Max Diameter:
300mm/160mm/120mm
Voltage:
380V
HS Code:
84561100
Software:
Autocad
Automatic Grade:
Automatic
Model NO.:
CA-1530
Trademark:
CAMEL CNC
Certification:
CE
Controlling Mode:
CNC
Processing Accessory:
Centre CNC Lathe
Origin:
China
Application:
Cylinder Wood Process
Controller:
DSP A136/LCD Screen
Tool Holder:
Double-tool Holder CNC Lathe
Power Source:
Electric
Trade Term:
FOB, EXW, CFR, CIF, DAT, DDP, DAP, FCA
Precision:
High Precision
Payment Term:
LC, T/T, Western Union, Small-amount payment, Money Gram
Rotating Speed:
Max 3000r/Min
After Sales Service:
Online
Transport Package:
Plywood Case
Port Of Loading:
QINGDAO
Guide Rail:
Taiwan Hiwin
Cutting Material:
Woodworking
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-04-16
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, EXW, CFR, CIF, DAT, DDP, DAP, FCA
Port Of Loading:
QINGDAO
Certificates:
Business license, CE, certification, CNC Router, CNC WOOD LATHE, LASER MACHINE, Plasma Cutting Machine
Product descriptions from the supplier
Specification:
1.Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.
2.Special used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.
3.Adopting advanced handheld DSP system with USB port which is easy for operating even without a computer
4.Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6.Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel
7.One time tool setting to finish the whole work piece.
8.Turning,broaching and engraving can be done with one machine by high speed

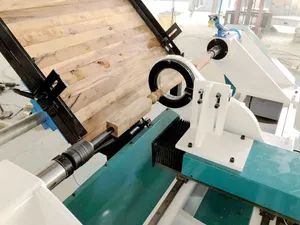

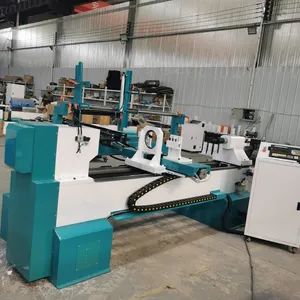

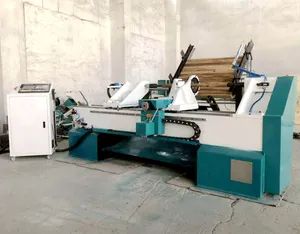

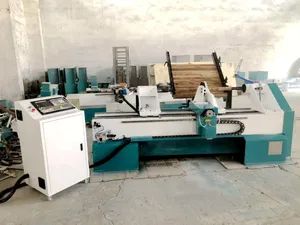

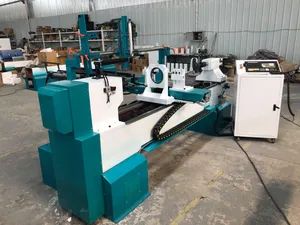

Details of CNC Wood Lathe:
Techinical Parameter:
| 1 | Model | CA-1530 |
| 2 | Max processing length | 1500mm(can custom 2000/2500/3000mm) |
| 3 | Max turning diameter | 300mm |
| 4 | Air pressure | 0.6-0.8Mpa |
| 5 | Power supply | AC 380V 3 phase 50HZ/60HZ(can custom 220V) |
| 6 | Max feed rate | 2000mm/min |
| 7 | min setting unit | 0.01cm |
| 8 | Transmission type | Ball screwforYaxis |
| 9 | Guider | Taiwan Hiwin orbit |
| 10 | Main shaft rotating speed | 0-3000r/min |
| 11 | Motor power | 4kw |
| 12 | Cutter material | hard alloy blade |
| 13 | Control System | DSPA136control system |
| 14 | Hand controller recognise file | *.dxf |
| 15 | Drawing Software | AutoCAD |
| 16 | Command Language | G code |
Application:
Staircases, stairway balusters, stairway newel posts; dining table legs; end table Legs; sofa table legs;bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails, lamp posts,baseball bats
Samples:
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 2 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
