Cable Conduits for Maximum Protection
Meters
Negotiable
Product information
High-quality Cable Conduits for Maximum Protection supplied by Comflex Industrial Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Pressure:
-10 to 100 Bar
Max Working Pressure:
10 MPa
Diameter:
3-102 mm
Outer/Nominal Diameter:
5-110mm
PVC Coated Od:
6-112
HS Code:
8307900000
Specification:
ASTM, AISI, DIN, EN, GB, JIS, Other
Standard:
ASTM, GB, API, DIN, JIS
Specifications
Pressure:
-10 to 100 Bar
Max Working Pressure:
10 MPa
Diameter:
3-102 mm
Outer/Nominal Diameter:
5-110mm
PVC Coated Od:
6-112
HS Code:
8307900000
Specification:
ASTM, AISI, DIN, EN, GB, JIS, Other
Standard:
ASTM, GB, API, DIN, JIS
Certification:
CE
Trademark:
Comflex
Trade Term:
FOB, CFR, CIF, EXW
Surface Treatment:
Galvanised
Origin:
Jiangsu, China
Payment Term:
LC, T/T, Western Union
Medium:
Liquid
Coating:
PP/PE/PVC
Port Of Loading:
Shanghai, Qingdao, Hangzhou
Material:
Stainless Steel
Material Grade:
Stainless Steel 304/316/316L/321/Galvanized Steel
Name:
Stainless Steel Flexible Electrical Conduit
Transport Package:
Standard Seaworthy Package
Application:
Underground
Production Capacity:
as Requested
Model NO.:
comflex
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Shanghai, Qingdao, Hangzhou
Certificates:
Flexible Metal Hose Forming Machine
Product descriptions from the supplier

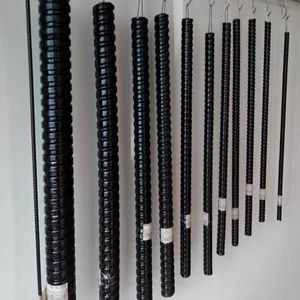

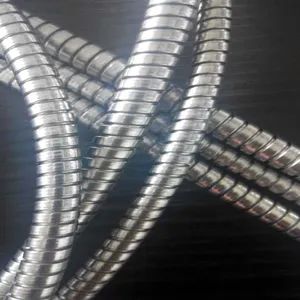

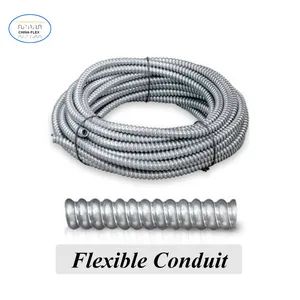

Electriduct 1/2" PVC Coated Liquid-Tight Steel Flexible Metal Conduit
This"Reinforced Type' product has been reformed to be much tighter on profile. That has enhanced the protective effect of the metal flexible conduit. The upgrade performances of tensile resistance, impact resistance & anti damage fulfill the application requirements for harsh or severe environments.
Widely used for protection of power, data, and signal cables in/on industrial, commercial, or residential buildings, elevators, machines, automobiles, telecommunication networks, power supply systems and etc.
*Structure: Interlock
*Nominal Conduit Size: 1/4"-2-1/2"
*Material: Stainless Steel
*PVC/PU / PE /LSZH Jacket
*UV Resistance: By ordering
*Tensile Resistance>1000N
*RoHS Compliant
*IP 40-IP 68
*Nominal Conduit Size: 1/4"-2-1/2"
*Material: Stainless Steel
*PVC/PU / PE /LSZH Jacket
*UV Resistance: By ordering
*Tensile Resistance>1000N
*RoHS Compliant
*IP 40-IP 68
This"Reinforced Type' product has been reformed to be much tighter on profile. That has enhanced the protective effect of the metal flexible conduit. The upgrade performances of tensile resistance, impact resistance & anti damage fulfill the application requirements for harsh or severe environments.
*Structure: Square-lock
*Nominal Conduit Size: 1/4"-4"
*Material: Stainless Steel
*PVC/PU / PE /LSZH Jacket
*UV Resistance: By ordering
*Tensile Resistance>1000N
*RoHS Compliant
*IP 40-IP 68
*Nominal Conduit Size: 1/4"-4"
*Material: Stainless Steel
*PVC/PU / PE /LSZH Jacket
*UV Resistance: By ordering
*Tensile Resistance>1000N
*RoHS Compliant
*IP 40-IP 68
Widely used for protection of power, data, and signal cables in/on industrial, commercial, or residential buildings, elevators, machines, automobiles, telecommunication networks, power supply systems and etc.
| Technical data for flexible conduit | |||||
| No. | Size (inch) |
Inner diameter (mm) |
Outer diameter (mm) |
PVC coated OD | Package (M) |
| W030050S1F1 | 3.00 | 5.00 | 6.00 | 100 | |
| W040060S1F1 | 4.00 | 6.00 | 7.00 | 100 | |
| W050070S1F1 | 5.00 | 7.00 | 7.60 | 100 | |
| W060080S1F1 | 6.00 | 8.00 | 9.20 | 100 | |
| W070090S1F1 | 7.00 | 9.00 | 9.80 | 100 | |
| W080010S1F1 | 8.00 | 10.00 | 11.00 | 100 | |
| W090011S1F1 | 9.00 | 11.00 | 12.00 | 100 | |
| W010012S1F1 | 10.00 | 12.00 | 13.00 | 100 | |
| W095125S1F1 | 1/4 | 9.50 | 12.50 | 13.20 | 50 |
| W125157S1F1 | 3/8 | 12.50 | 15.70 | 16.60 | 50 |
| W030060S1F1 | 1/2 | 16.10 | 19.50 | 20.50 | 50 |
| W030060S1F1 | 19.10 | 22.20 | 23.00 | 50 | |
| W208255S1F1 | 3/4 | 20.80 | 24.30 | 25.50 | 40 |
| W220268S1F1 | 22.00 | 25.60 | 26.80 | 40 | |
| W264316S1F1 | 1 | 26.40 | 30.00 | 31.60 | 30 |
| W345396S1F1 | 1 1/4 | 34.50 | 38.00 | 39.60 | 30 |
| W400468S1F1 | 1 1/2 | 40.00 | 45.00 | 46.80 | 20 |
| W510586S1F2 | 2 | 51.00 | 57.00 | 58.60 | 10 |
Packaging Details: The packing of the corrugated pipe is 100m/roll,50m/roll, As you wish
Delivery Details: 7-15 days, depending on quantity and available in stock
We are a professional manufacturer of all types of metal flexible metal hose and machinery with more than 35 years of history, such as corrugated metal hose, square lock and interlock hose/ conduit, expansion joint, PTFE hose, hose making machine, etc... The hoses are widely used in energy, petroleum, petrochemical, machinery, refrigeration, construction, hydropower, nuclear power, cement, paper, medicine, transportation, mining, metallurgy, urban central heating, shipbuilding, city gas, natural gas pipeline construction, Central air conditioning, aerospace, and other industries. Our products have been exported to many countries such as Russia, Ukraine, the USA, Australia, New Zealand, Poland, etc.
Q: What material hose do you have?
A: stainless less steel (garde201, 3045, 316L, 321), galvanized steel, aluminum.
Q: What size hose and what type do you have?
A: We have both square lock and interlock hose
B: square lock hose: ID 3.2mm-57mm
C:interlock hose: ID4 till ID56
Q: Can you customize it for us?
A: yes we accept customize, including hose size, diameter, and PVC coating material & thickness.
Q: Why should I choose you?
A: we produce both hose and hose-making machines with many years of experience and professional technology.
Q: What are your hose features?
A: performance of waterproof, powerful tensile resistance, high flexibility.
We need to know the following information before we send the quotation for the hoses/conduit you need:
1. Hose/conduit material
2. Hose/conduit type, for instance, square lock or interlock
3. Size/diameter
4. Quantity, for big quantity orders, the prices will be much lower
Welcome to inquiry!
