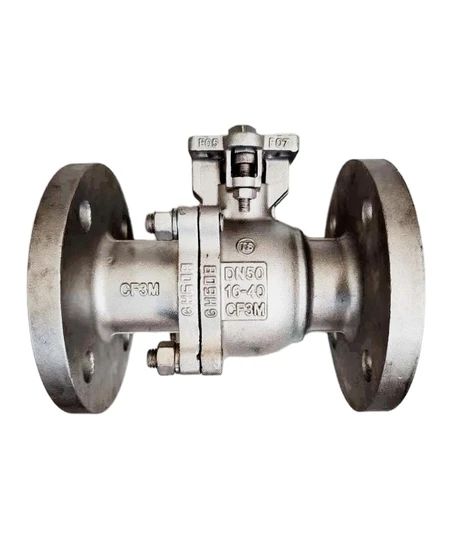

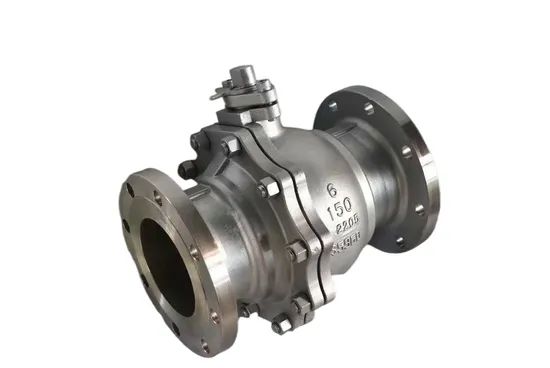

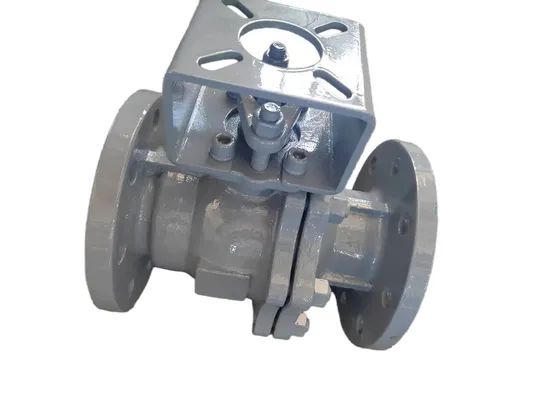

Carbon Steel Flanged Floating Ball Valves
10 Piece
$3210 Piece
$35Product information
High-quality Carbon Steel Flanged Floating Ball Valves supplied by Shanghai Lambert Fluid Control Equipment Co., Ltd. Bulk wholesale pricing ranges from $32 to $35 per Piece with a minimum order of 10 Piece. Inquiry for latest prices.
Production Capacity:
10000pieces/Year
HS Code:
8481804090
Nominal Pressure:
ANSI CLASS 150-900
Standard:
API 6D/API 608, BS 5351/DIN3357/JIS B207
Function:
Blow-Down Valve, Relief Valve, Atmospheric Valve, on-off Valve
Trade Term:
FOB, CIF, CFR, EXW
Connection Form:
Flange
Structure:
Floating Ball Valve
Specifications
Production Capacity:
10000pieces/Year
HS Code:
8481804090
Nominal Pressure:
ANSI CLASS 150-900
Standard:
API 6D/API 608, BS 5351/DIN3357/JIS B207
Function:
Blow-Down Valve, Relief Valve, Atmospheric Valve, on-off Valve
Trade Term:
FOB, CIF, CFR, EXW
Connection Form:
Flange
Structure:
Floating Ball Valve
Type:
Floating Ball,Tee Ball,V Type Ball Valve
Application:
Industrial Usage, Water Industrial Usage, Household Usage
Payment Term:
LC, T/T
Temperature:
Low/Normal/High Temperature
Model NO.:
Q41F
Port Of Loading:
Shanghai port
Channel:
Straight Through Type,Tee Type
Driving Mode:
Worm Gear,Pnenumatic,Electric,Manual
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-05-12
Annual Revenue Amount:
Not specified
Numbers Of Employees:
1
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai port
Product descriptions from the supplier
Please enter the title here
This type of ball valve includes a housing, cap, spherical element, sealing surface, gasket, and additional parts. A key trait is the spherical component's slight mobility, enabling it to respond autonomously to fluid pressure and uphold a tight seal. As fluid pressure rises, the sphere shifts closer to the sealing surface due to the pressure, improving the seal; when pressure drops, the sphere is pushed back away from the surface by the fluid's external force, preserving the integrity of the seal.
Application of Norms
1,Flange dimensions to ANSl B16.5
2,Face to face dimensions to ANSl B16.10
3,Design and Manufacture in accordance with APl 6D
4,Valve tested to AP] 598
Please enter the title here
The floating soft-seal ball valve delivers superior seal integrity due to its adaptable, flexible sealing design, effectively handling diverse fluids and pressure levels.
Flow dynamics are optimized thanks to a smoothly engineered internal channel, minimizing friction and enhancing fluid movement while cutting down on power usage.
Critical parts including the ball, seat, and gaskets are constructed from durable, anti-corrosive materials, ensuring long-term resilience and compatibility with a broad spectrum of substances.
It supports both manual and automated actuation, enabling swift, consistent operation with dependable closure and reliable performance under varying conditions.
This valve is ideal for use in liquid, gaseous, and particulate-laden environments, performing efficiently even in extreme temperature and pressure settings.
Floating soft-seal ball valves find extensive application across multiple sectors:(1) Oil & Gas Sector: Employed for managing fluid flow in oil and gas conveyance lines, storage sites, and refining operations, contributing to system reliability and operational integrity.(2) Chemical Processing: Utilized in chemical manufacturing environments to regulate and manage the flow of corrosive substances including acids, bases, and various gases.(3) Natural Gas Operations: Applied in pipeline flow management and isolation functions within natural gas distribution networks, storage units, and comparable systems.(4) Energy Generation: Integrated into cooling water and boiler management systems at thermal and nuclear power stations, supporting efficient and safe plant performance.(5) Diverse Industrial Sectors: Also applicable in fields such as steel production, paper production, pharmaceuticals, and municipal water systems for reliable fluid handling.
Model | Q41F-150LB~2500LBC | Q41F-150LB~2500LBP | |
Medium | Water.Oil.Gas | corrosive medium | |
Material | Body/Bonnet | Carbon steel | Chrome-nickel stainless steel |
Ball/Stem | Chromium / Chromium-Nickel / Chromium-Nickel-Molybdenum stainless steel | Chrome-nickel stainless steel | |
Seat | PTFE | ||
Packing | Flexible graphite/stainless steel + flexible graphite gasket | ||
Main External and Connection Dimension CLASS150Lb | mm | ||||||||
NPS | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | |
L | RF | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 |
RTJ | 119 | 130 | 140 | 153 | 178 | 191 | 203 | 216 | |
Manual | H1 | 55 | 58 | 70 | 75 | 90 | 104 | 153 | 187 |
W | 125 | 125 | 160 | 160 | 190 | 350 | 400 | 490 | |
Worm Gear | H2 | ||||||||
W | |||||||||
Electric | H3 | 340 | 350 | 360 | |||||
W | 190 | 190 | 190 | ||||||
NPS | 4 | 5 | 6 | 8 | 10 | |
L | RF | 229 | 356 | 394 | 457 | 533 |
RTJ | 242 | 369 | 407 | 470 | 546 | |
Manual | H1 | 206 | 252 | 244 | 283 | 345 |
W | 490 | 560 | 740 | 740 | 740 | |
Worm Gear | H2 | 232 | 245 | 260 | 300 | 385 |
W | 320 | 400 | 400 | 600 | 600 | |
Electric | H3 | 400 | 425 | 495 | 530 | 685 |
W | 190 | 400 | 400 | 400 | 600 | |
Main External and Connection Dimension CLASS300Lb | mm | ||||||||
NPS | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | |
L | RF | 140 | 152 | 165 | 178 | 190 | 216 | 241 | 283 |
RTJ | 151 | 165 | 178 | 191 | 203 | 232 | 257 | 299 | |
Manual | H1 | 55 | 58 | 70 | 75 | 90 | 104 | 153 | 187 |
W | 125 | 125 | 160 | 160 | 190 | 350 | 400 | 490 | |
Worm Gear | H2 | 248 | |||||||
W | 320 | ||||||||
Electric | H3 | 340 | 350 | 360 | |||||
W | 190 | 190 | 190 | ||||||
NPS | 4 | 5 | 6 | 8 | 10 | |
L | RF | 305 | 381 | 403 | 502 | 533 |
RTJ | 321 | 397 | 419 | 518 | 546 | |
Manual | H1 | 206 | 252 | 244 | 283 | 345 |
W | 490 | 560 | 740 | 740 | 740 | |
Worm Gear | H2 | 268 | 295 | 325 | 390 | 385 |
W | 320 | 400 | 400 | 600 | 600 | |
Electric | H3 | 400 | 425 | 495 | 530 | 685 |
W | 190 | 400 | 400 | 400 | 600 | |
