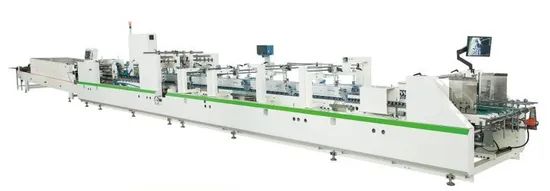

Carton Folding Machine Box Gluing
1 Set
$20,0001 Set
$100,000Product information
High-quality Carton Folding Machine Box Gluing supplied by Jiangsu Ketchview Machinery Technology Co., Ltd.. Bulk wholesale pricing ranges from $20,000 to $100,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
20set/Month
HS Code:
8441309000
Packaging:
Cartons
Origin:
China
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR
Model NO.:
FY1100
Trademark:
Ketchview
Specifications
Production Capacity:
20set/Month
HS Code:
8441309000
Packaging:
Cartons
Origin:
China
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR
Model NO.:
FY1100
Trademark:
Ketchview
Payment Term:
LC, T/T, D/P
Port Of Loading:
Shanghai Port
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-06-29
Annual Revenue Amount:
Not specified
Numbers Of Employees:
35
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier
Brief Introduction
The machine adopts multi-groove belt transmission structure, low noise, stable operation and simple maintenance;
▪ The machine motor adopts inverter control, automatic speed regulation, stable and electricity saving;
▪ The operation adopts single lever adjustment, simple and convenient (with motor automatic adjustment);
▪ Multiple thickening belts are equipped with vibration motors to ensure continuous, accurate, automatic paper-out
▪ Segmented upper belt plate, combined with special design, can be telescopic and adjusted according to the needs of the product without the need of tensioning the belt;
▪ Special upper belt plate structure design, effectively protect the elastic drive, avoid damage caused by improper operation;
▪ Provide the bottom paste tube, the left and right sides of the paste tube are adjusted by the tooth rod, easy to operate, equipped with one cold glue gun (four control three guns).
▪ Touch screen and PLC control system, remote control operating system, equipped with photoelectric counting, quantitative counting, equipped with dynamic kicking device;
▪ Conveying board is made of special materials, which can adjust the pressure equipp with sponge belt to ensure perfect products;
▪ One hexagon wrench can adjust all adjusting accessories, easy to operate
▪ This machine can produce two fold, four fold hook bottom card and mounted packaging box;
▪ This machine is equipped with four/hexagonal box function
Technical Parameter
Application
Main component part
1.Feeder section
Feeder section has an independent motor drive system and keep synchronization with main machine.
7 pcs of 30mm feeding belt and 10mm metal plate to move laterally to set width.
The embossed roller guides the feeding belt. Two side apron match the products design.
Feeder section is equipped with three out-feeding blade to adjust according to the product sample.
Vibration device keep paper feeding quickly, easily, continuously and automatically.
Feeder section with 400mm height and brush roller anti-dust device ensure smooth paper feeding.
The operator can operate feeding switch in any area of machine.
Feeder belt can be equipped with sucking function(Option).
Independent monitor can inspect the performance at the tail of the machine.
2. Side register unit
The paper from feeding unit can be rectified at side register unit to ensure accurate feeding.
The driven pressure can be adjusted up and down to fit with different thickness of board.
3. Pre-fold section
The special design can pre-fold the first folding line at 180 degrees and the third line at 165 degrees that can makes box easier to open.
4. Bottom Lock
Lock-bottom folding with flexible design and rapid operation.
Segmented upper belt plate, combined with special design, can be telescopic and adjusted according to the needs of the product, no need to tensioning the belt.
▪ Lower paste tube with one left and right, large capacity, according to the actual situation; The amount of paste can be adjusted, stable and easy to maintain. The thickness of the paste wheel provided is 4mm, which can also be selected according to the special requirements of customers. The paste tube is made of solid and durable stainless steel.
▪ Bottom sticking is completed by four groups of hook bottom devices.
The bottom belt is 30MM, the upper belt is 20MM, the upper pressure belt plate moves up and down to adapt to different paperboard thickness.
5. Folding Section
The second line is 180 degrees and the fourth line is 180 degrees.
The special design of the transmission fold belt speed can be adjusted individually to correct box running direction to keep it straight.
6. Trombone unit
Adopt photocell counting system with either "kicker" paper automatically or spray ink.
Jam inspection machine.
Up belt running with active transmission.
7.Transmission
Pneumatic pressure adjustment to keep uniform pressure.
Special extra sponge can be applied to press concave parts.
In auto-mode, the speed of press section keep synchrony with main machine to rise consistency of production.
Packaging & Shipping& Trade Term
Standard export cases.
Customized packaging can be available.
By Express By air By sea
Ex works, FOB, CIF, CFR etc
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are manufacturer, certified by SGS
2. Q: What's your MOQ?
A: One set.
3. Q: What's your payments terms?
A: T/T, L/C....
4. Q: Loading Port
A: Shanghai Port
5. Q: How about the warranty?
A: 12 months warranty since installation.
6. Q: What's the delivery time?
A: Normally 60 days, but also depend on the order quantity and production schedule
7. Q: Can you do OEM brand?
A: Yes, welcome.
The machine adopts multi-groove belt transmission structure, low noise, stable operation and simple maintenance;
▪ The machine motor adopts inverter control, automatic speed regulation, stable and electricity saving;
▪ The operation adopts single lever adjustment, simple and convenient (with motor automatic adjustment);
▪ Multiple thickening belts are equipped with vibration motors to ensure continuous, accurate, automatic paper-out
▪ Segmented upper belt plate, combined with special design, can be telescopic and adjusted according to the needs of the product without the need of tensioning the belt;
▪ Special upper belt plate structure design, effectively protect the elastic drive, avoid damage caused by improper operation;
▪ Provide the bottom paste tube, the left and right sides of the paste tube are adjusted by the tooth rod, easy to operate, equipped with one cold glue gun (four control three guns).
▪ Touch screen and PLC control system, remote control operating system, equipped with photoelectric counting, quantitative counting, equipped with dynamic kicking device;
▪ Conveying board is made of special materials, which can adjust the pressure equipp with sponge belt to ensure perfect products;
▪ One hexagon wrench can adjust all adjusting accessories, easy to operate
▪ This machine can produce two fold, four fold hook bottom card and mounted packaging box;
▪ This machine is equipped with four/hexagonal box function
Technical Parameter
| Model | FY850 | FY1100 |
| Maximum Paperboard Size | 850X900mm | 1100X900mm |
| Minimum Paperboard Size | 100X50mm | 100X50mm |
| Paper thickness | White cardboard(250-800gsm) Corrugated paper E, F |
White cardboard(250-800gsm) Corrugated paper E, F |
| Feeding mode | Automatic continuous paper feeding | Automatic continuous paper feeding |
| Max speed | 450Meter/Min | 450Meter/Min |
| Machine size(L×W×H) | 16.8×1.8×1.5M | 16.8×1.8×1.5M |
| Weight | 6000kg | 8500kg |
| Power | 22.5KW | 22.5KW |
Application
Main component part

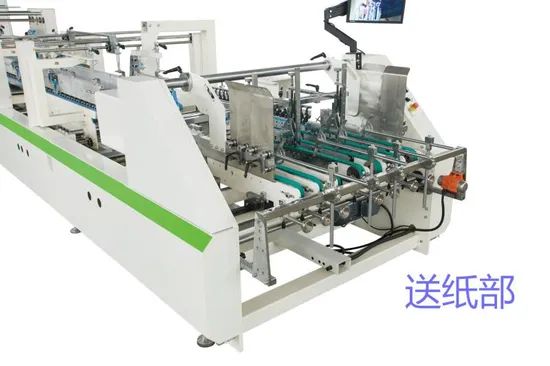

1.Feeder section
Feeder section has an independent motor drive system and keep synchronization with main machine.7 pcs of 30mm feeding belt and 10mm metal plate to move laterally to set width.
The embossed roller guides the feeding belt. Two side apron match the products design.
Feeder section is equipped with three out-feeding blade to adjust according to the product sample.
Vibration device keep paper feeding quickly, easily, continuously and automatically.
Feeder section with 400mm height and brush roller anti-dust device ensure smooth paper feeding.
The operator can operate feeding switch in any area of machine.
Feeder belt can be equipped with sucking function(Option).
Independent monitor can inspect the performance at the tail of the machine.

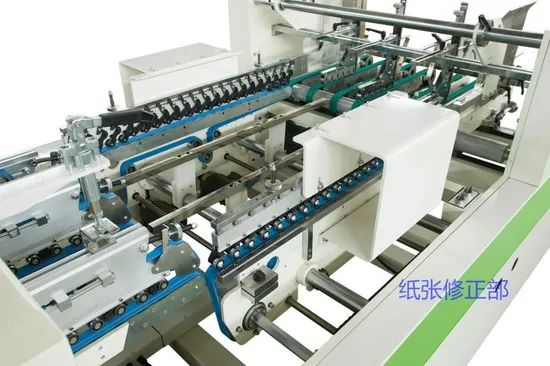

2. Side register unit
The paper from feeding unit can be rectified at side register unit to ensure accurate feeding.
The driven pressure can be adjusted up and down to fit with different thickness of board.
3. Pre-fold section
The special design can pre-fold the first folding line at 180 degrees and the third line at 165 degrees that can makes box easier to open.

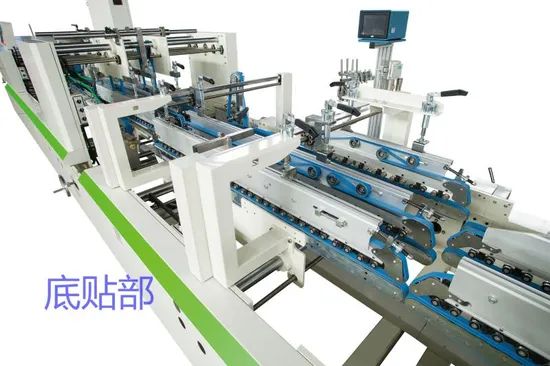

4. Bottom Lock
Lock-bottom folding with flexible design and rapid operation.Segmented upper belt plate, combined with special design, can be telescopic and adjusted according to the needs of the product, no need to tensioning the belt.
▪ Lower paste tube with one left and right, large capacity, according to the actual situation; The amount of paste can be adjusted, stable and easy to maintain. The thickness of the paste wheel provided is 4mm, which can also be selected according to the special requirements of customers. The paste tube is made of solid and durable stainless steel.
▪ Bottom sticking is completed by four groups of hook bottom devices.
The bottom belt is 30MM, the upper belt is 20MM, the upper pressure belt plate moves up and down to adapt to different paperboard thickness.
5. Folding Section
The second line is 180 degrees and the fourth line is 180 degrees.The special design of the transmission fold belt speed can be adjusted individually to correct box running direction to keep it straight.
6. Trombone unit
Adopt photocell counting system with either "kicker" paper automatically or spray ink.Jam inspection machine.
Up belt running with active transmission.

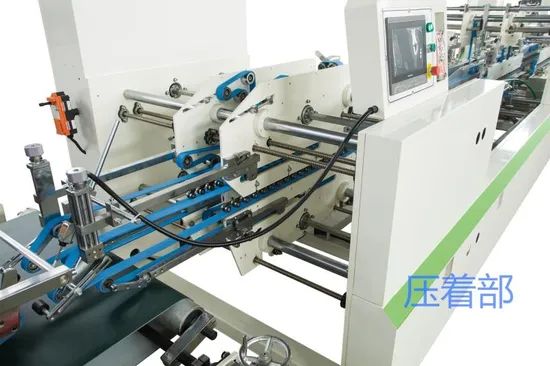

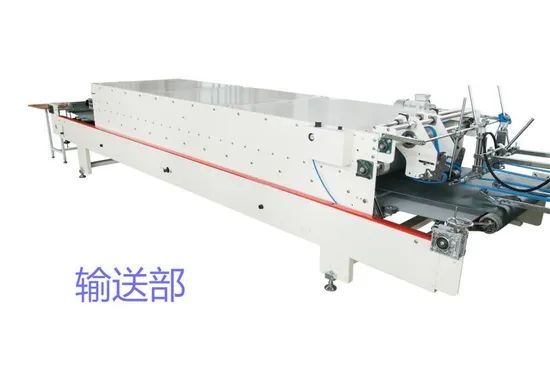

7.Transmission
Pneumatic pressure adjustment to keep uniform pressure.Special extra sponge can be applied to press concave parts.
In auto-mode, the speed of press section keep synchrony with main machine to rise consistency of production.
Packaging & Shipping& Trade Term
Standard export cases.
Customized packaging can be available.
By Express By air By sea
Ex works, FOB, CIF, CFR etc
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are manufacturer, certified by SGS
2. Q: What's your MOQ?
A: One set.
3. Q: What's your payments terms?
A: T/T, L/C....
4. Q: Loading Port
A: Shanghai Port
5. Q: How about the warranty?
A: 12 months warranty since installation.
6. Q: What's the delivery time?
A: Normally 60 days, but also depend on the order quantity and production schedule
7. Q: Can you do OEM brand?
A: Yes, welcome.
